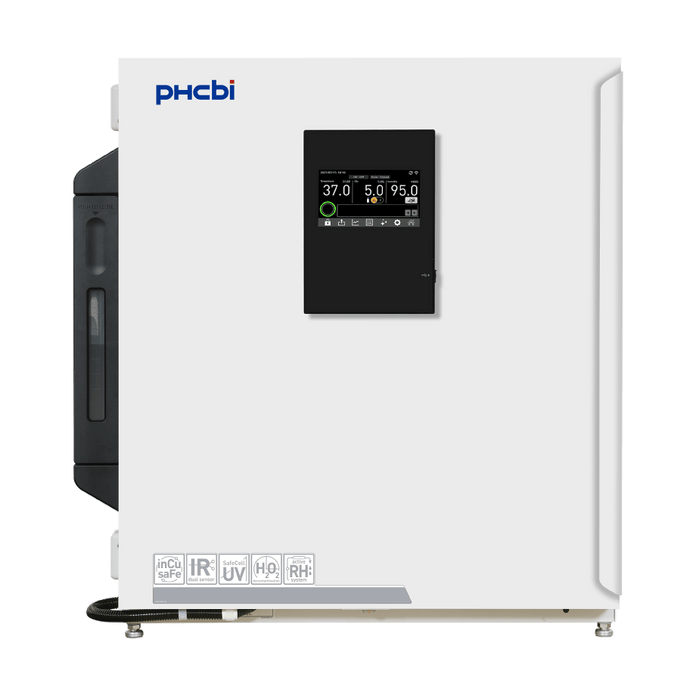

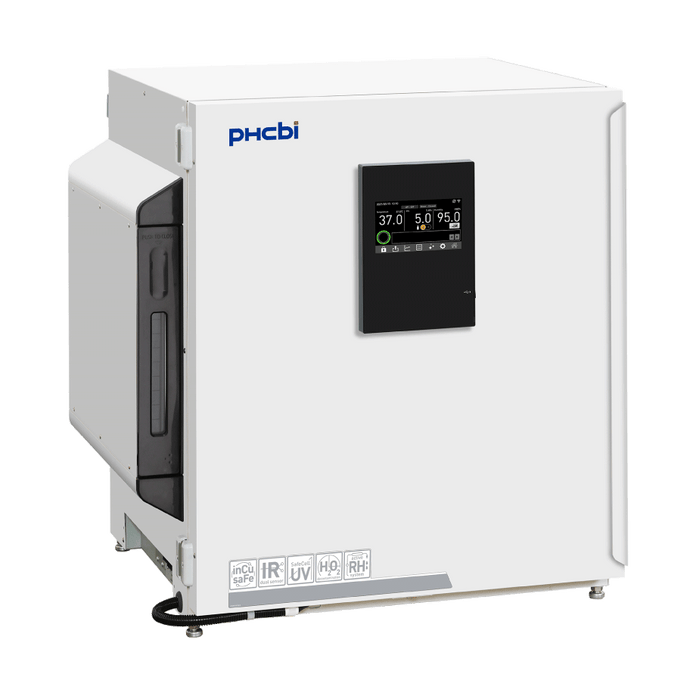

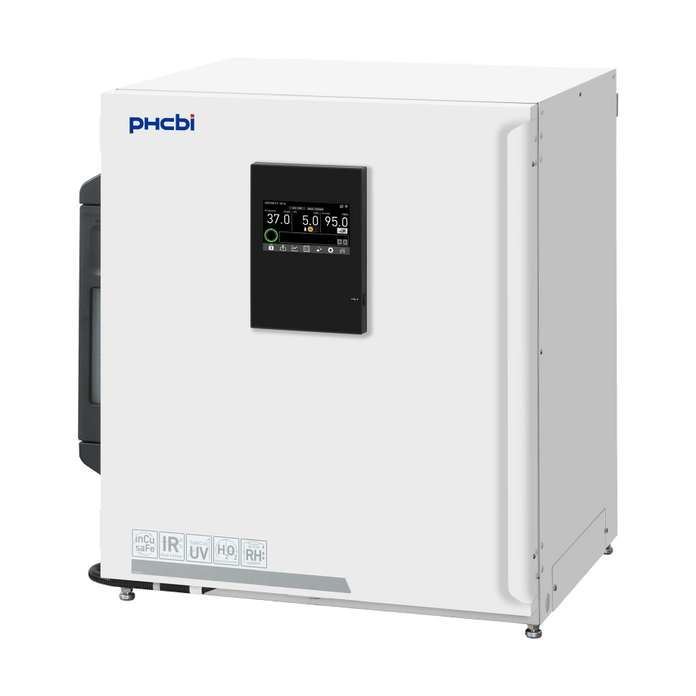

PHCbi - MCO-233AICUVHX-PA - Cell-IQ™ Series Active Humidification CO2 Incubator with UV-LED and H202 Decontamination
Features
Ultimate Sample Protection
Precision incubation depends on stable CO2, temperature, and humidity control. Routine door openings can disrupt humidity and introduce variability in cell culture conditions. This incubator integrates passive and active humidification systems to maintain tightly regulated humidity and minimize edge effect variability. It supports high throughput screening, low volume samples, and organoid culture. With SafeCell UV LED technology and an H2O2 decontamination system, it delivers faster humidity recovery while maintaining active decontamination performance compared to previous models.

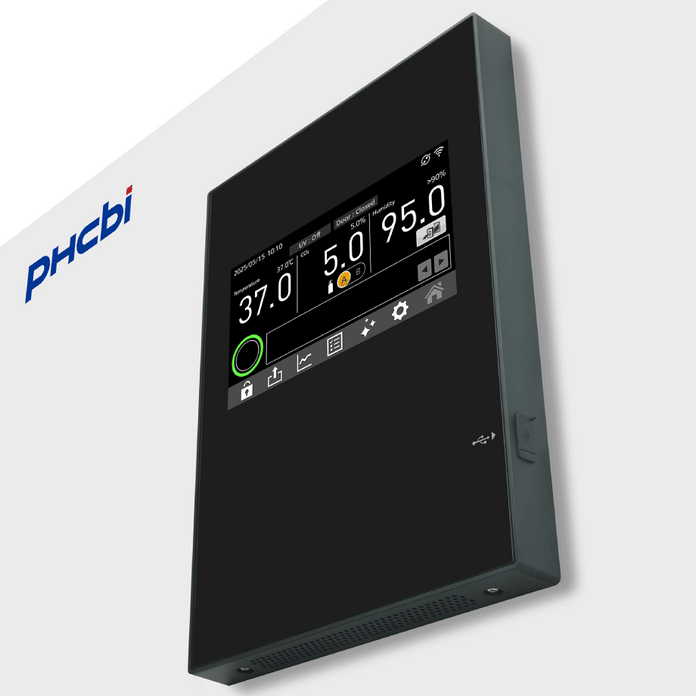

Intelligent Interface
A modern interface designed for clarity and confidence. The MCO-233AICUVX-PA incubator makes monitoring and control simple with a clean design and intuitive tools.
Large 7-inch touchscreen
Sleek black panel, 44% larger for improved visibility and ease of use.
Door activity overlay
Temperature graph shows door openings, helping users quickly spot the cause of fluctuations.
Instant support
Built-in, easy-to-scan QR codes provide immediate access to alarm responses and manuals.
Guided self-service tools
Designed to enable quick issue resolution with service support available when needed.
Specifications
Overview
-
Nominal Height:35.6" (90.42 cm)
-
Nominal Width:33.5" (85.09 cm)
-
Nominal Length:28.7" (72.9 cm)
-

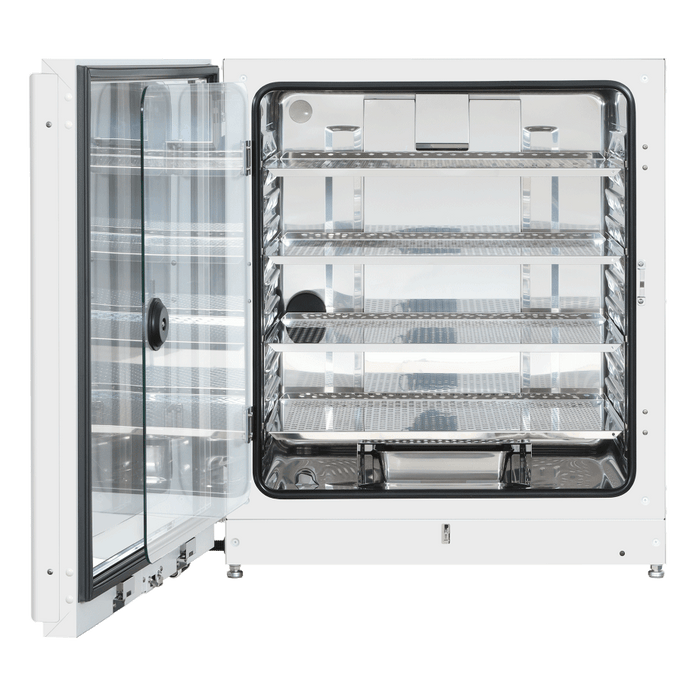

Internal Height:27.6" (70.1 cm)
-
Internal Width:25.3" (64.26 cm)
-
Internal Length:20.6" (52.32 cm)
-
Capacity:8.1
Technical Data
-

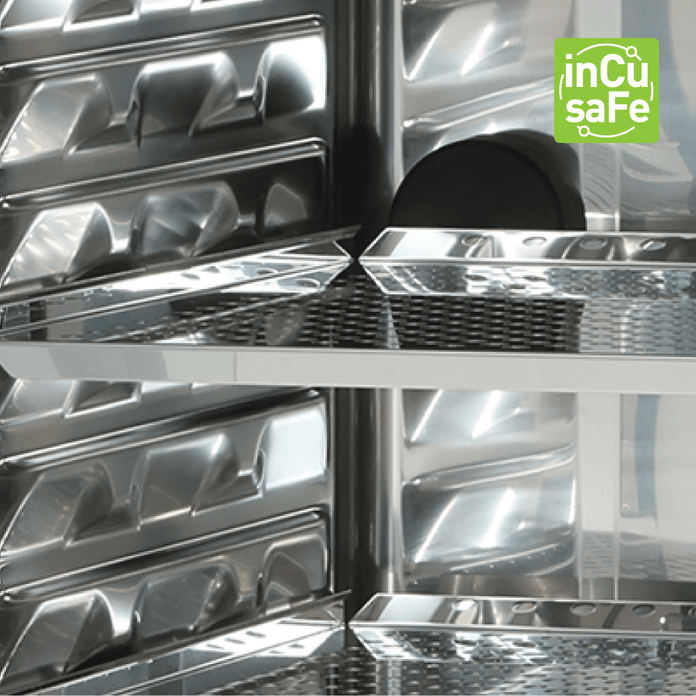

Interior Surfaces:InCu-saFe stainless steel with copper enriched alloy
-
Outer Door:Painted steel
-
Shelves:24.4" W x 17.7" D x 0.5" H (620 x 450 x 12 mm)
-
Maximum Load:15 lbs (7 kg)/tray
-
Access Port:1, Rear Upper (1.2" [30 mm] diameter)
-
Heating Method:Direct Heat and Air Jacket System
-
Uv Lamp:LED-based, Included (MCO-LUVS-PA)
-
Net Weight:198 lbs (90 kg)
-
Temperature Control Range:Ambient temperature + 5°C to 50°C
-
Temperature Uniformity:± 0.25°C
-
Co2 Control Range:0% to 20%
-
Co2 Controller:Microprocessor
-
Co2 Sensor Type:Dual Beam Infrared Sensor
-
Temperature Sensor:Thermistor
-
Data Output:USB 4-20 mA Analog Output (CO2, Temperature, and RH)
-
Data Acquisition:Standard 4-20 mA Module, Data Export via USB
-
Contamination Controls:InCu-SaFe copper enriched stainless steel interior and shelves, SafeCell UV light, Hydrogen peroxide (H2O2) vapor system
-
Display:Color LCD touchscreen readable in 0.1 increments
-

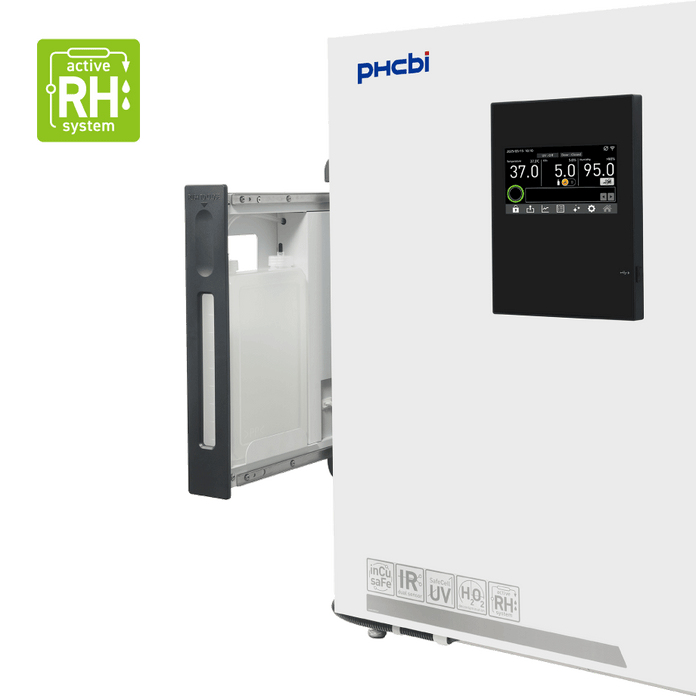

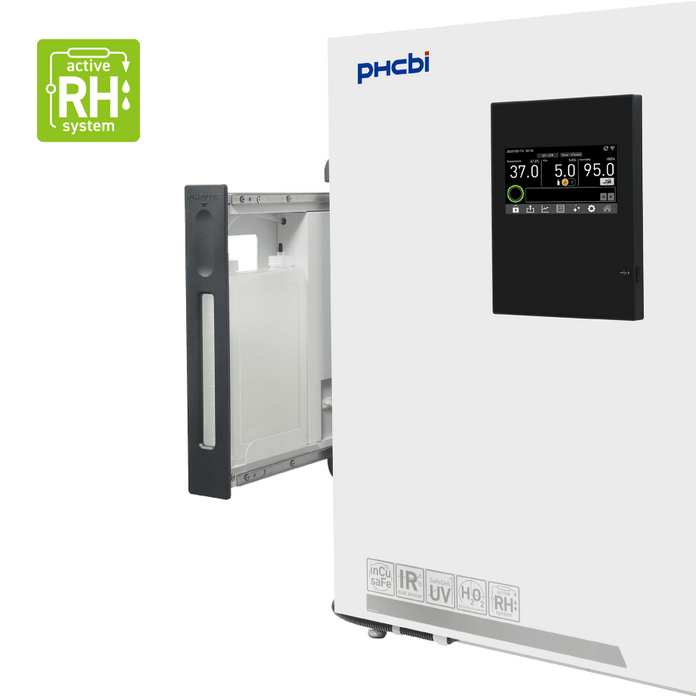

Humidifying System:Hybrid on-demand stream generation with humidifying pan*
Downloads
-
MCO-233AICUVHX-PA Product SheetDownload
Drawings
-
MCO-233AICUVHX-PA DimensionsVisit Link
