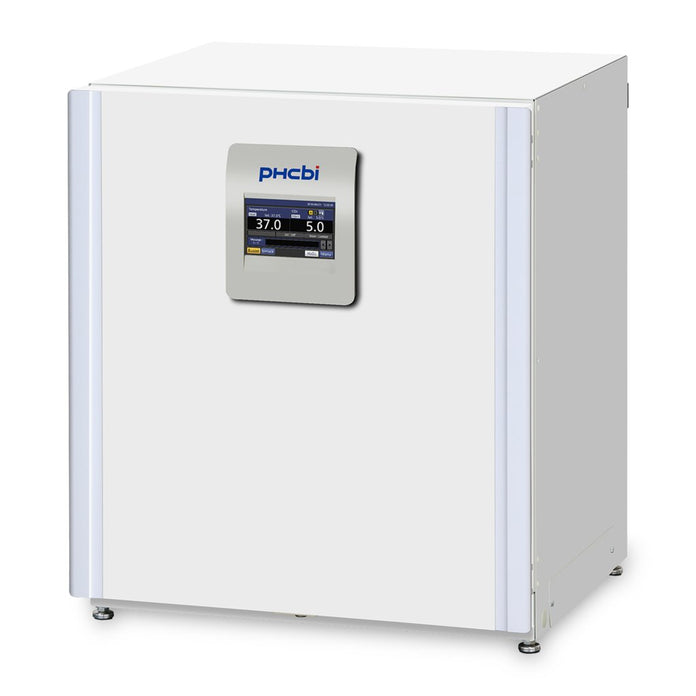

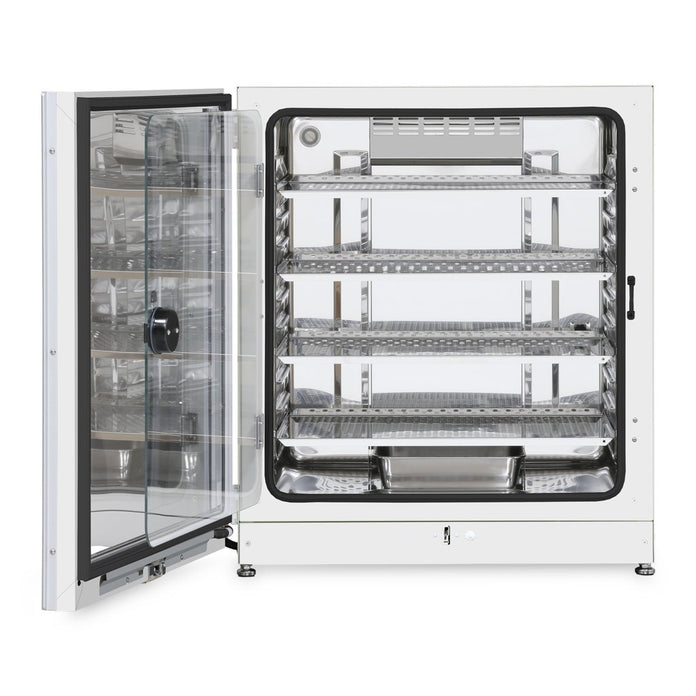

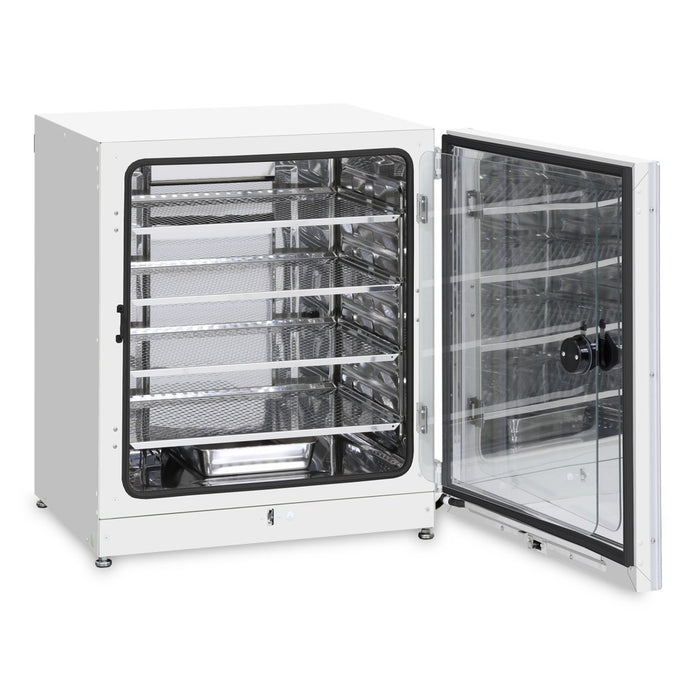

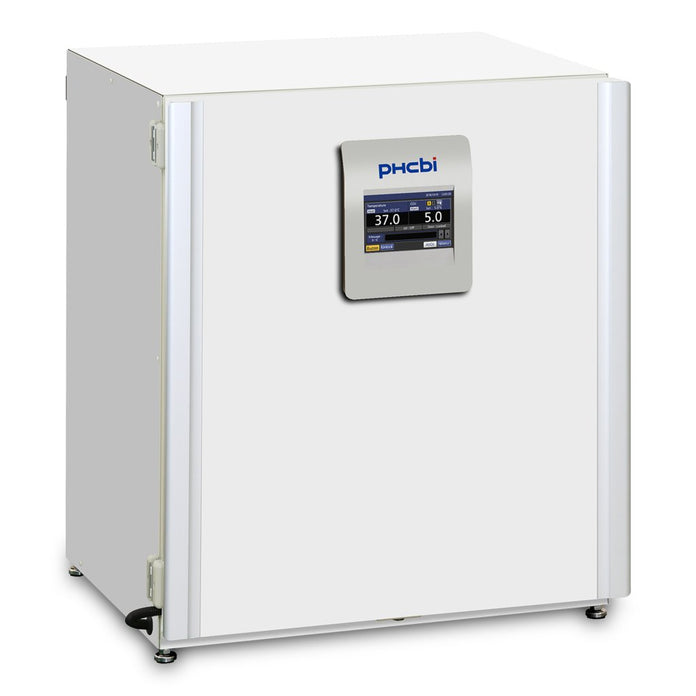

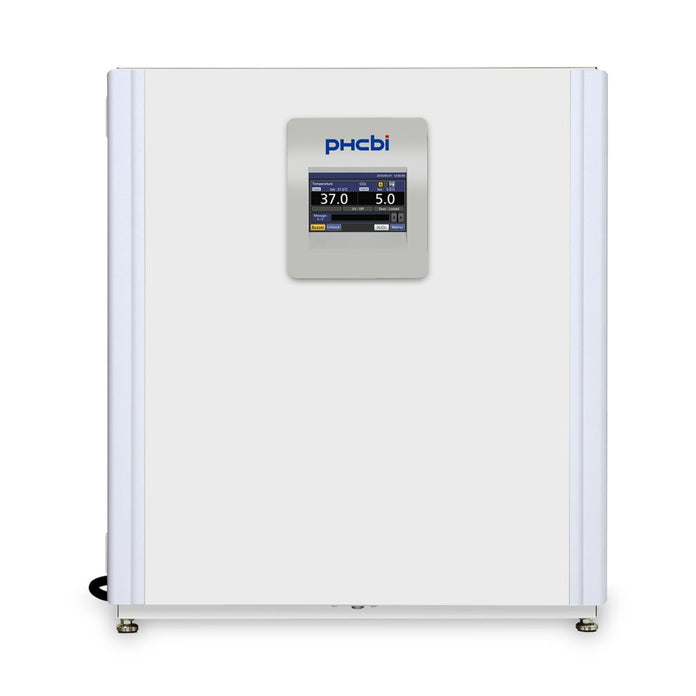

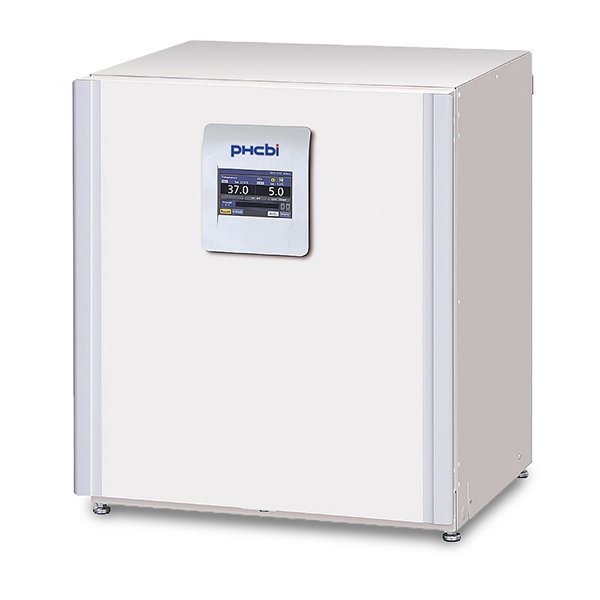

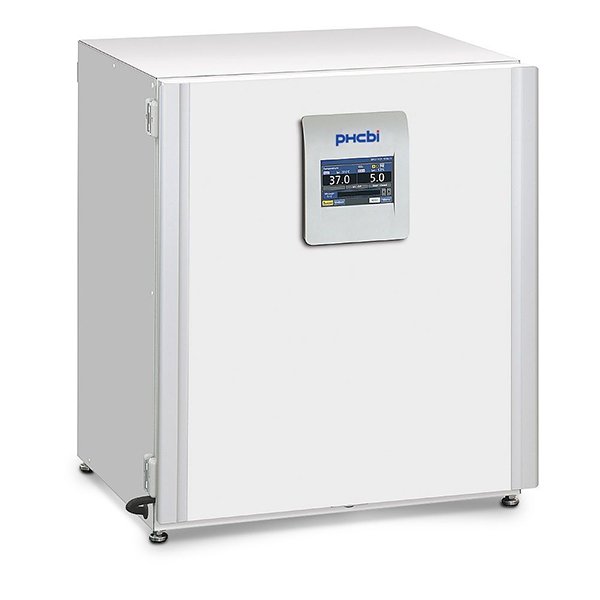

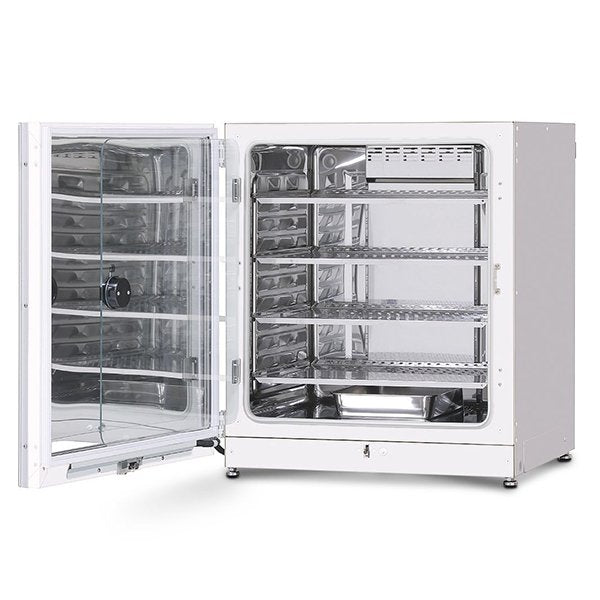

PHCbi - MCO-230AICUVHL-PA - Cell-IQ™ Series 8.1 cu.ft. CO2 Incubator for Cell Culture
Features
Cell Culture Incubators Capabilities
As a crucial piece of laboratory equipment, PHCbi brand cell culture incubators are designed to ensure highly accurate, reproducible chamber conditions. Our cell culture incubators provide a contamination-free environment while allowing precise CO2 or CO2/O2 control - essential for in vivo environment replication.
Uniform Consistent Environment
The patented Direct Heat and Air Jacket system, IR2 sensor, SafeCell™ UV and inCu-saFe® work together to ensure precise temperature, CO2 levels and contamination control respectively for a precise and repeatable environment.
Rapid CO2 Recovery with IR2 Sensor
Proprietary IR2 sensor provides superior CO2 control with fast recovery without overshoot even following multiple door openings.
Time Saving Decontamination
An optional high speed decontamination system uses hydrogen peroxide (H2O2) vapor to clean the incubator chamber in under three hours. The system safely and efficiently decontaminates with a 100% kill rate with at least a six log reduction of major contaminants.
Contamination Control with SafeCell UV and InCu-saFe
The PHCbi inCu-saFe combines the germicidal properties of elemental copper with the corrosion and discoloration resistance of stainless steel to deliver passive contamination control throughout the chamber interior. The SafeCell UV lamp provides safe, active and passive contamination control of circulated air and the humidity water reservoir. SafeCell scrubs and decontaminates circulated chamber air without affecting cell cultures in situ.

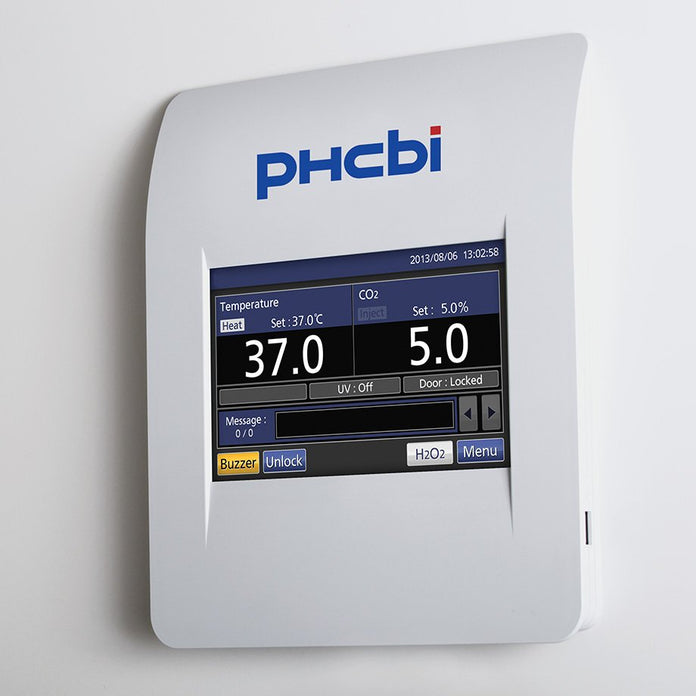

Color LCD Display
The high contrast color LCD display allows for easy, touchscreen programming of temperature, CO2and other internal conditions of your incubator even with gloved hands.
USB Log Function for Data Transfer and Storage
A standard USB port simplifies the storage or transfer of logged data.
Specifications
Overview
-
Nominal Height:35.6" (90.42 cm)
-
Nominal Width:30.3" (76.96 cm)
-
Nominal Length:28.8" (73.15 cm)
-
Internal Height:27.5" (69.85 cm)
-
Internal Width:25.3" (64.26 cm)
-
Internal Length:20.6" (52.32 cm)
-
Capacity:8.1
Technical Data
-
Interior Surfaces:InCu-saFe stainless steel with copper enriched alloy
-
Outer Door:Painted Steel
-
Shelves:W 24.4 inch x D 17.7 inch (W620 mm x D450 mm), maximum load - 15 lbs (7 kg)/tray
-
Access Port:1, Back side (1.2" (30 mm) diameter)
-
Heating Method:Direct Heat and Air Jacket System
-
In-line Gas Filter:0.3 um, efficiency 99.97% or higher
-
UV Lamp:4 W x 1 (ozone-free emission)
-
Net Weight:198 lbs (90 kg)
-
Temperature Control Range:Ambient temperature +5ºC to 50ºC
-
Temperature Uniformity:±0.25ºC, ambient temperature - 23ºC, setting - 37ºC, CO2 - 5 %, no load
-
CO2 Control Range:0% to 20%
-
CO2 Controller:PID Control System
-
CO2 Gas Connection:0.157 inch to 0.36 inch (4 mm to 6 mm) diameter tube can be connected
-
CO2 Variation:±0.15%, ambient temperature - 23ºC, setting - 37ºC, CO2 - 5%, no load)
-
CO2 Sensor Type:Dual Infrared Sensor
-
Data Output:USB, 4-20 mA analog output (CO₂ & temperature)
-
Decontamination Methods:Full chamber UV decontamination, H₂O₂ decontamination
-
Contamination Controls:InCu-SaFe copper enriched stainless steel interior and shelves, SafeCell UV light
-
Decontamination Cycle Time:24 hour UV decontamination, 3 hour H₂O₂ decontamination
-
Display:Color LCD touchscreen
-
Humidifying System:Natural evaporation with humidifying pan, 95 %R.H.±5 %R.H.
