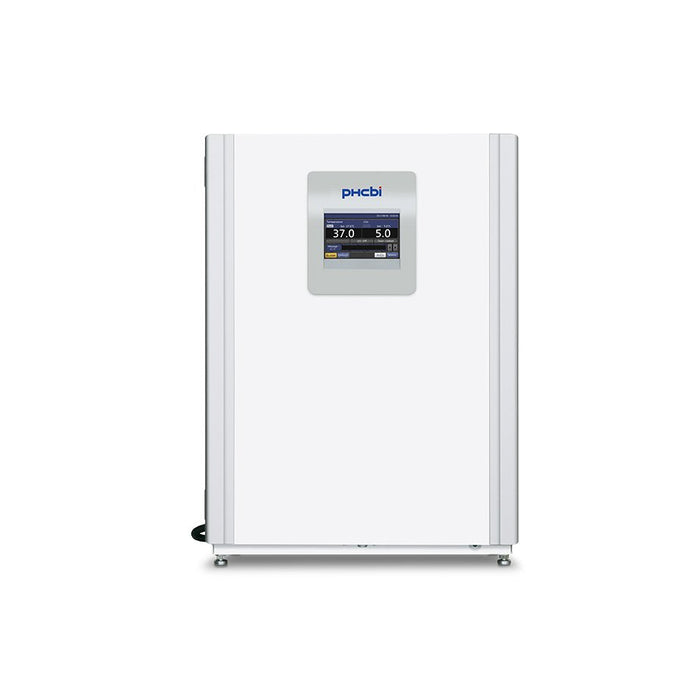

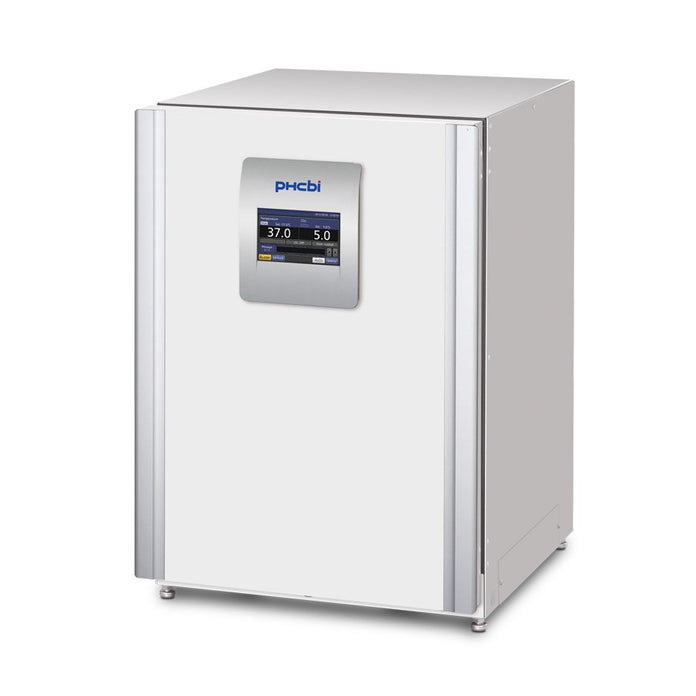

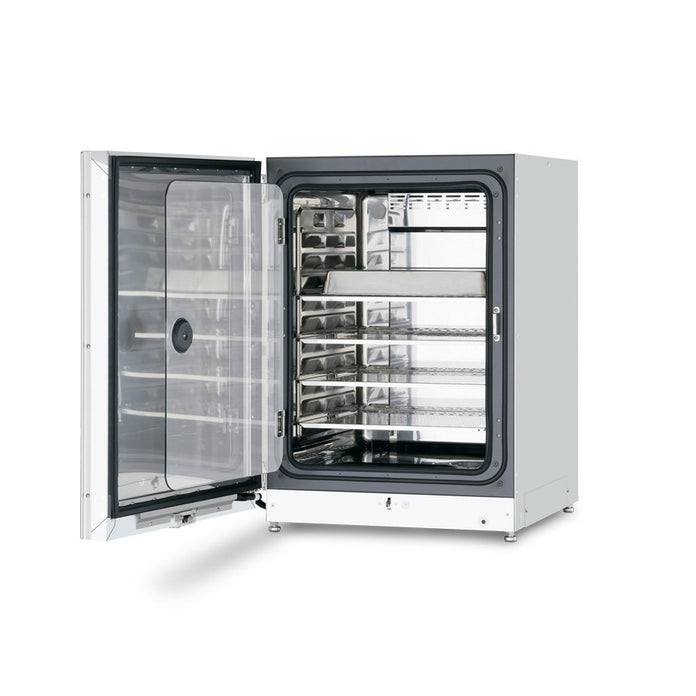

PHCbi - MCO-170AICUVL-PA - Cell-IQ™ Series 5.8 Cu. Ft. CO2 Laboratory Incubator

PHCbi - MCO-170AICUVL-PA - Cell-IQ™ Series 5.8 Cu. Ft. CO2 Laboratory Incubator
PHCbi - MCO-170AICUVL-PA - Cell-IQ™ Series 5.8 Cu. Ft. CO2 Laboratory Incubator
PHCbi - MCO-170AICUVL-PA - Cell-IQ™ Series 5.8 Cu. Ft. CO2 Laboratory Incubator
PHCbi - MCO-170AICUVL-PA - Cell-IQ™ Series 5.8 Cu. Ft. CO2 Laboratory Incubator

PHCbi - MCO-170AICUVL-PA - Cell-IQ™ Series 5.8 Cu. Ft. CO2 Laboratory Incubator

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The PHCbi Cell-IQ CO2 incubator design and touchscreen panel deliver exceptional ease of use, effortless cleaning and maintenance as well as outstanding performance with multilevel contamination control. The MCO-170AICUVL-PA laboratory incubator is designed for demanding and regulated applications in the biomedical, pharmaceutical, medical research and clinical laboratory applications. The Cell-IQ CO2 incubator offers the ideal environment for all your research needs. The MCO-170AICUVL-PA unit includes a touchscreen control panel that delivers improved usability, an optimized interior structure with technology for rapid cleaning, and a proprietary infrared sensor for stabilizing temperature, CO2, and humidity levels.

Features

Cell Culture Incubators Capabilities



As a crucial piece of laboratory equipment, PHCbi brand cell culture incubators are designed to ensure highly accurate, reproducible chamber conditions. Our cell culture incubators provide a contamination-free environment while allowing precise CO2 or CO2/O2 control - essential for in vivo environment replication.



Uniform and Consistent Environment



The patented Direct Heat and Air Jacket system, IR2 sensor, SafeCell™ UV and inCu-saFe® work together to ensure precise temperature, CO2 levels and contamination control respectively for a precise and repeatable environment.



Rapid CO2 Recovery with IR2 Sensor



Proprietary IR2 sensor provides superior CO2 control with fast recovery without overshoot even following multiple door openings.



Time Saving Decontamination



An optional high speed decontamination system uses hydrogen peroxide (H2O2) vapor to clean the CO2 incubator chamber in under three hours. The system safely and efficiently decontaminates with a 100% kill rate with at least a six log reduction of major contaminants.



Contamination Control with SafeCell UV and InCu-saFe



PHCbi's inCu-saFe combines the germicidal properties of elemental copper with the corrosion and discoloration resistance of stainless steel to deliver passive contamination control throughout the chamber interior. The SafeCell UV lamp provides safe, active and passive contamination control of circulated air and the humidity water reservoir. SafeCell scrubs and decontaminates circulated chamber air without affecting cell cultures in situ.

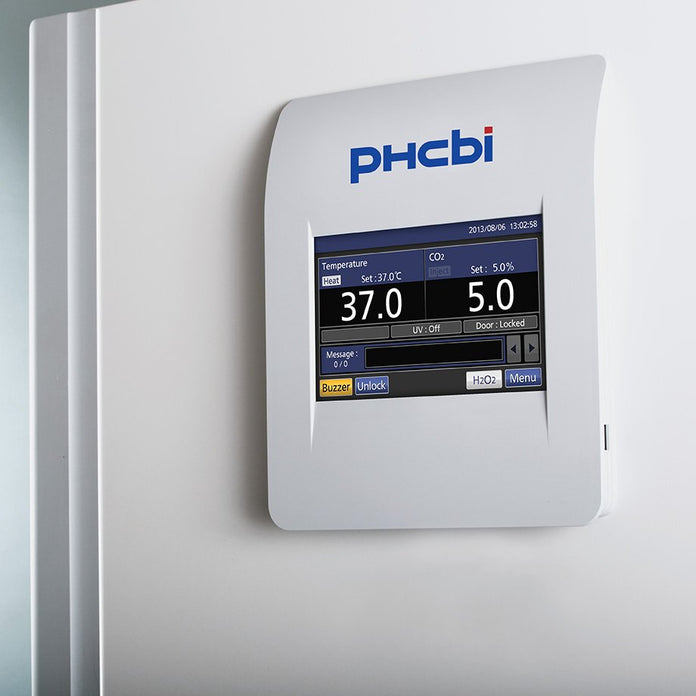

Color LCD Display



The high contrast color LCD display allows for easy, touchscreen programming of temperature, CO2 and other internal conditions of your incubator even with gloved hands.



USB Log Function for Data Transfer and Storage



A standard USB port simplifies the storage or transfer of logged data.



Watch the video

Specifications

Overview

  • Nominal Height:
    35.6" (90.42 cm)
  • Nominal Width:
    24.4" (61.98 cm)
  • Nominal Length:
    28.7" (72.9 cm)
  • Internal Height:
    26.2" (66.55 cm)
  • Internal Width:
    19.3" (49.02 cm)
  • Internal Length:
    20.6" (52.32 cm)
  • Capacity:
    5.8

Technical Data

  • Data Acquisition:
    Optional analog on cloud-based monitoring
  • Outer Door:
    Painted steel
  • Shelves:
    18.5" x 17.7" (470 x 450 mm)
  • Access Port:
    1, Back Side (1.2" [30 mm] Diameter)
  • Insulation:
    Extruded polystyrene foam
  • Air Filter:
    0.3 um, Efficiency 99.97 % or higher
  • UV Lamp:
    4W x 1 (ozone-free emission)
  • Net Weight:
    176 lbs (80 kg)
  • Temperature Control Range:
    Ambient temperature +º5C to +50ºC
  • Temperature Uniformity:
    ±0.25ºC (ambient temperature 23ºC, setting 37ºC, CO2 5 %, no load)
  • Maximum Power Consumption:
    Max. 376 W
  • CO2 Control Range:
    0% to 20%
  • CO2 Controller:
    PID Control System
  • CO2 Gas Connection:
    0.157 inch to 0.36 inch (4 mm to 6 mm) diameter tube can be connected
  • CO2 Gas Pressure:
    0.03 MPa(G) (0.3kgf/cm2(G),4.3 psi(G))
  • CO2 Variation:
    ±0.15% (ambient temperature 23ºC, setting 37ºC, CO2 5%, no load)
  • CO2 Sensor Type:
    Dual filter infrared sensor
  • Data Output:
    USB
  • Decontamination Methods:
    SafeCell ultraviolet light. Optional hydrogen peroxide (h3O2) vapor
  • Contamination Controls:
    InCu-SaFe copper enriched stainless steel interior and shelves, SafeCell UV light
  • Decontamination Cycle Time:
    < 3.0 Hours
  • Display:
    LCD touchscreen
  • Heating System:
    Direct Heat and Air Jacket System
  • Humidifying System:
    Natural evaporation with humidifying pan, 95 %R.H.±5 %R.H.
  • Interior Surfaces:
    InCu-saFe stainless steel with copper enriched alloy
