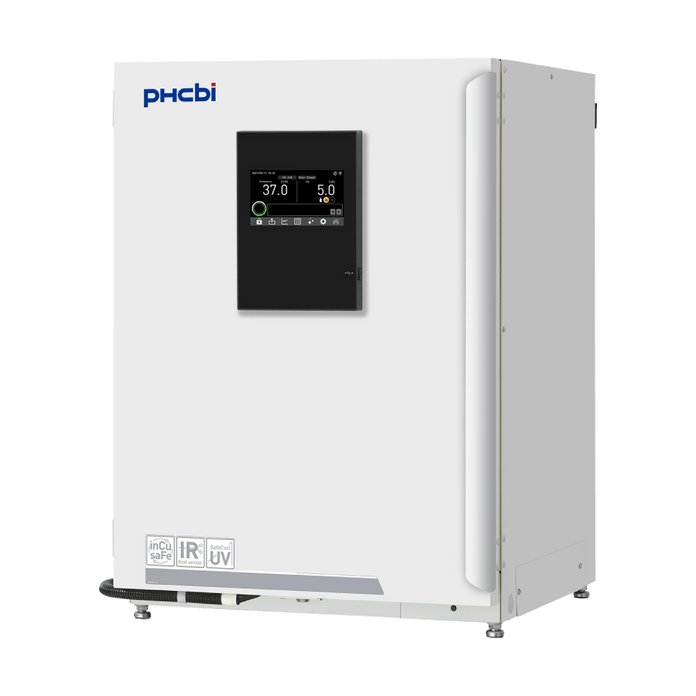

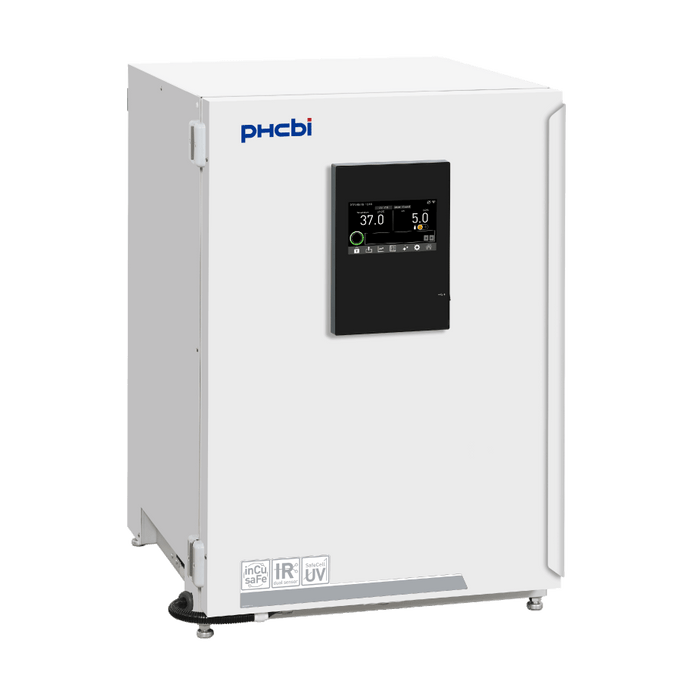

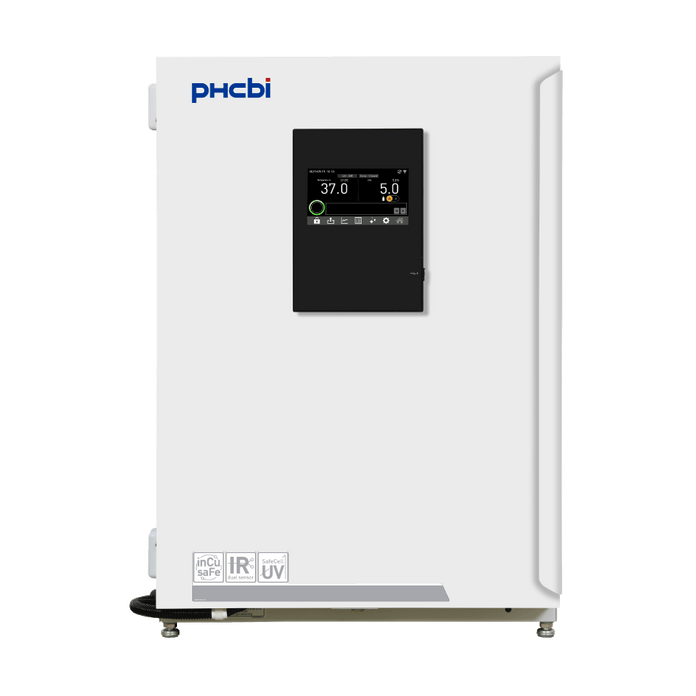

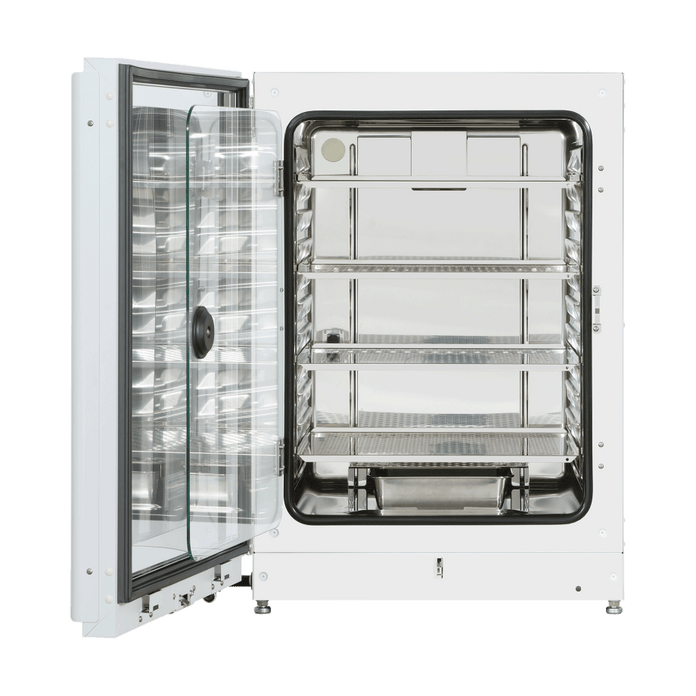

The MCO‑173AICUV‑PA delivers a tightly controlled, contamination‑resistant environment designed to support today’s most sensitive and demanding cell culture workflows. With multi‑layer contamination control, and an intuitive interface, it brings consistency and confidence to every experiment.

Features

Ultimate Sample Protection

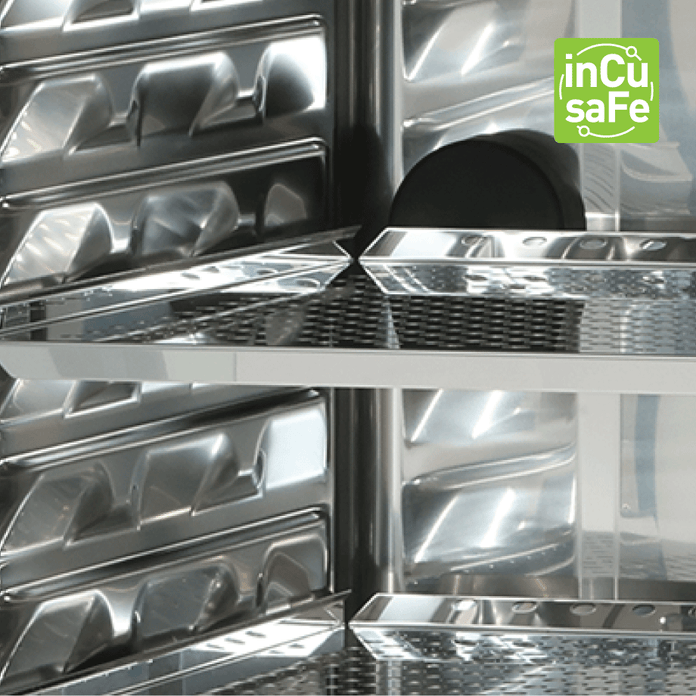

Precision incubation requires both the proper balance of CO2 and temperature inside the incubator. This incubator combines active and passive contamination controls including UV-LED, a proprietary antimicrobial copper-stainless steel alloy (inCu-saFe) interior, and integrated shelving with rounded corners to support critical applications. This next-generation incubator goes beyond traditional incubation by enhancing both data capture and troubleshooting capabilities. Its advanced onboard display and user interface do more than log basic readings — they track alarms and their resolution, overlay multiple data parameters simultaneously, and monitor the duration of incubator activities for deeper operational insight.


Intelligent Interface


A modern interface designed for clarity and confidence. The MCO-173AICUV-PA incubator makes monitoring and control simple with a clean design and intuitive tools.

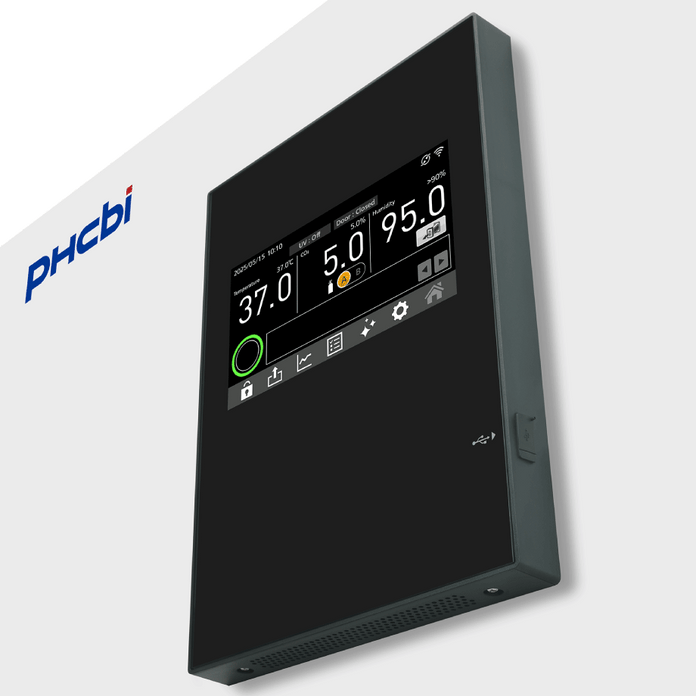

Large 7-inch touchscreen


Sleek black panel, 44% larger for improved visibility and ease of use.


Door activity overlay


Temperature graph shows door openings, helping users quickly spot the cause of fluctuations.


Instant support


Built-in, easy-to-scan QR codes provide immediate access to alarm responses and manuals.


Guided self-service tools


Designed to enable quick troubleshooting with service support available when needed.

Specifications

Overview

  • Nominal Height:
    35.6" (90.42 cm)
  • Nominal Width:
    24.4" (61.98 cm)
  • Nominal Length:
    28.7" (72.9 cm)
  • Internal Height:
    26.2" (66.55 cm)
  • Internal Width:
    19.3" (49.02 cm)
  • Internal Length:
    20.6" (52.32 cm)
  • Capacity:
    5.8

Technical Data

  • Interior Surfaces:
    InCu-saFe stainless steel with copper enriched alloy
  • Outer Door:
    Painted steel
  • Shelves:
    18.5" W x 17.7" D x 0.5" H (470 x 450 x 12 mm)
  • Maximum Load:
    15 lbs (7 kg)/tray
  • Access Port:
    1, Rear Upper (1.2" [30 mm] diameter)
  • Heating Method:
    Direct Heat and Air Jacket System
  • UV Lamp:
    LED-based, Included (MCO-LUVS-PA)
  • Net Weight:
    152 lbs (69 kg)
  • Temperature Control Range:
    Ambient temperature + 5°C to 50°C
  • Temperature Uniformity:
    ± 0.25°C
  • CO2 Control Range:
    0% to 20%
  • CO2 Controller:
    Microprocessor
  • CO2 Sensor Type:
    Dual Beam Infrared Sensor
  • Temperature Sensor:
    Thermistor
  • Data Output:
    USB 4-20 mA Analog Output (CO2 & Temperature)
  • Data Acquisition:
    Standard 4-20 mA Module, Data Export via USB
  • Contamination Controls:
    InCu-SaFe copper enriched stainless steel interior and shelves, SafeCell UV-LED light
  • Display:
    Color LCD touchscreen readable in 0.1 increments
  • Humidifying System:
    Passive Humidification via Water Pan
