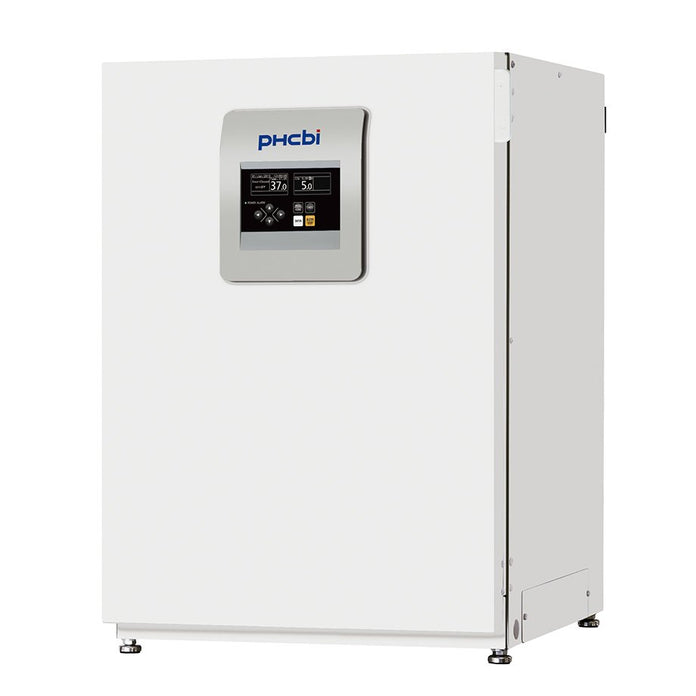

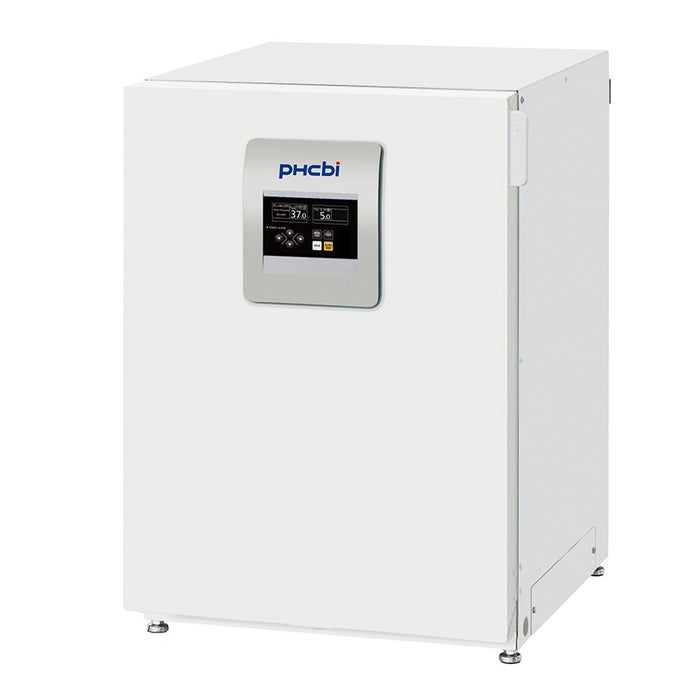

PHCbi - MCO-170ACL-PA - CytoGrow CO2 Incubator 5.8 Cu. Ft.
Features
Cell Culture Incubators Capabilities
As a crucial piece of laboratory equipment, PHCbi brand cell culture incubators are designed to ensure highly accurate, reproducible chamber conditions. Our cell culture incubators provide a contamination-free environment while allowing precise CO2 or CO2/O2 control - essential for in vivo environment replication.
Passive Contamination Control with InCu-saFe®
Designed with standard, passive contamination control throughout the chamber interior. The inCu-saFe surface combines the germicidal properties of elemental copper with the corrosion and discoloration resistance of stainless steel.
SafeCell™ UV Protection
The SafeCell UV lamp provides an added layer of contamination control. It eliminates contaminants introduced during door openings as they pass over the humidity reservoir surface without affecting the cell cultures.

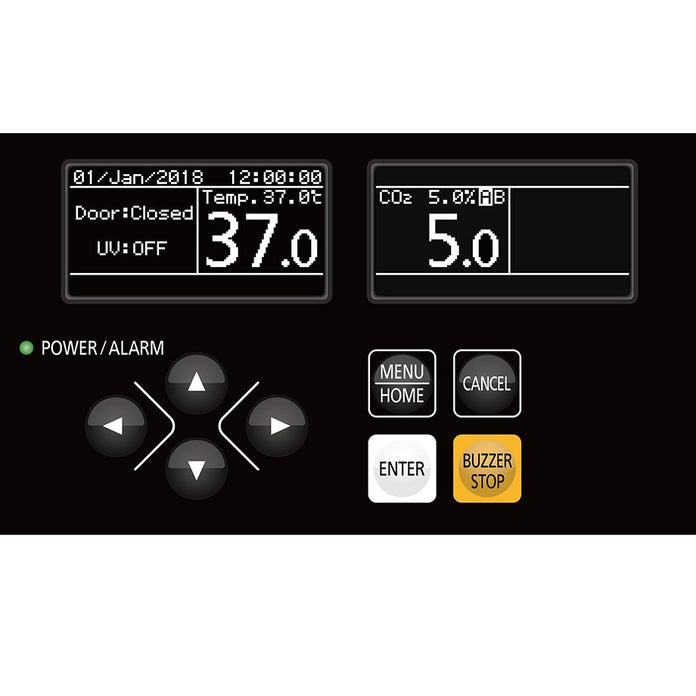

Integrated Microprocessor Control
Control and monitoring are offered through a fully integrated microprocessor controller with independent organic LED displays for CO2 and temperature. The softkey button menu enables intuitive programming. Alarm notifications warn when functions deviate from setpoints. A USB data port permits download of logged performance and event information.
CO2 Control
The automatic CO2 control system delivers precise, reliable and repeatable CO2 control over a setpoint range of 0% to 20% and includes a CO2 sample port integrated into the inner glass door.

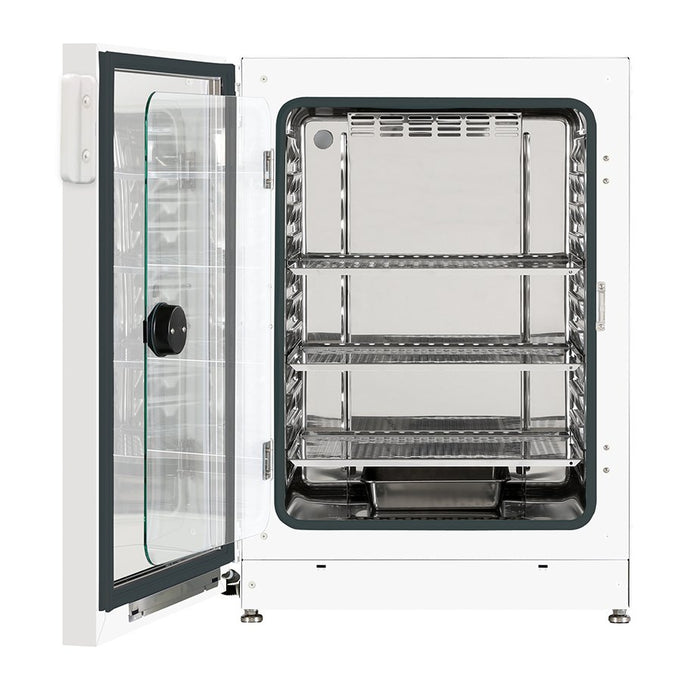

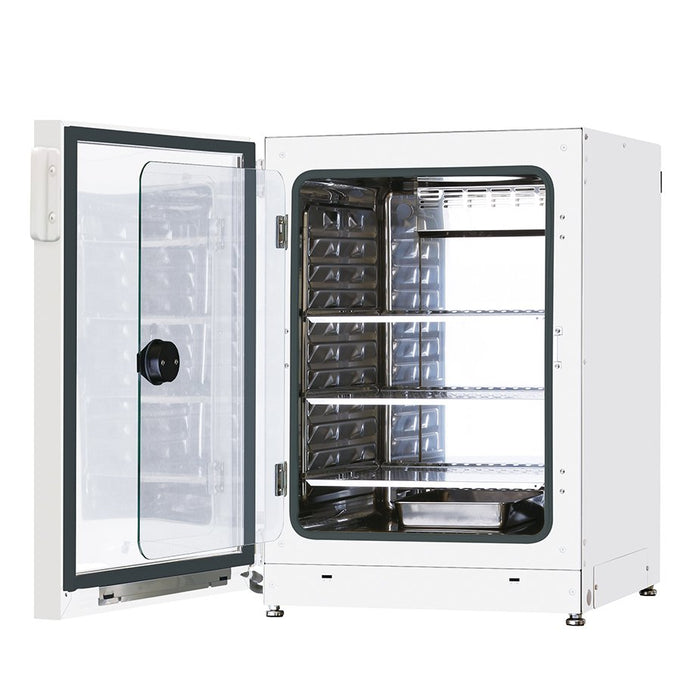

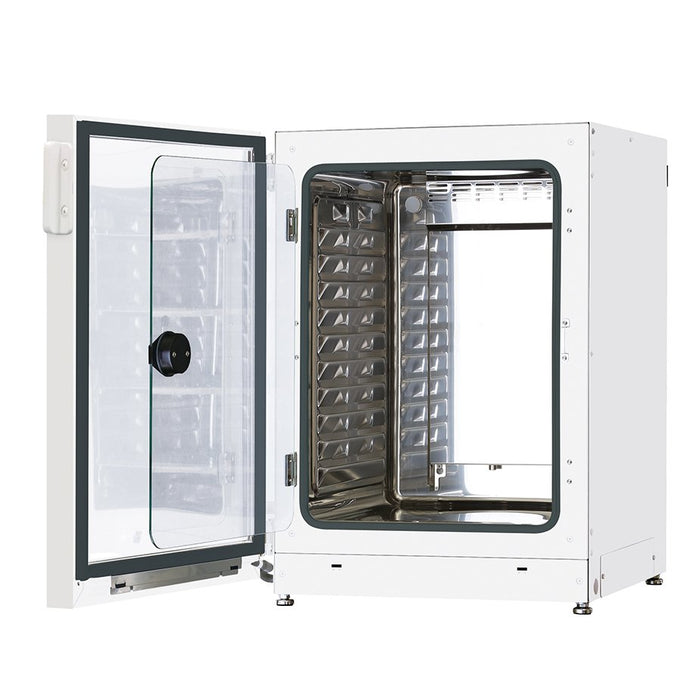

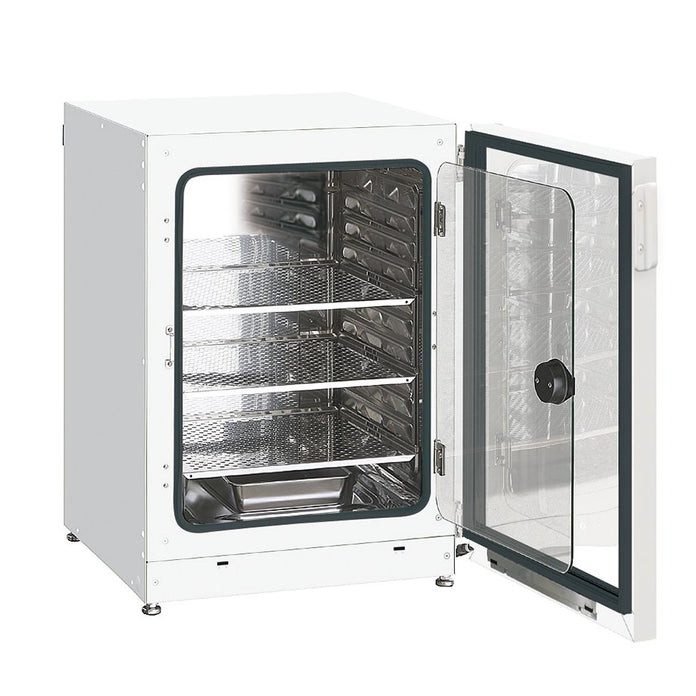

Shelf Channel System

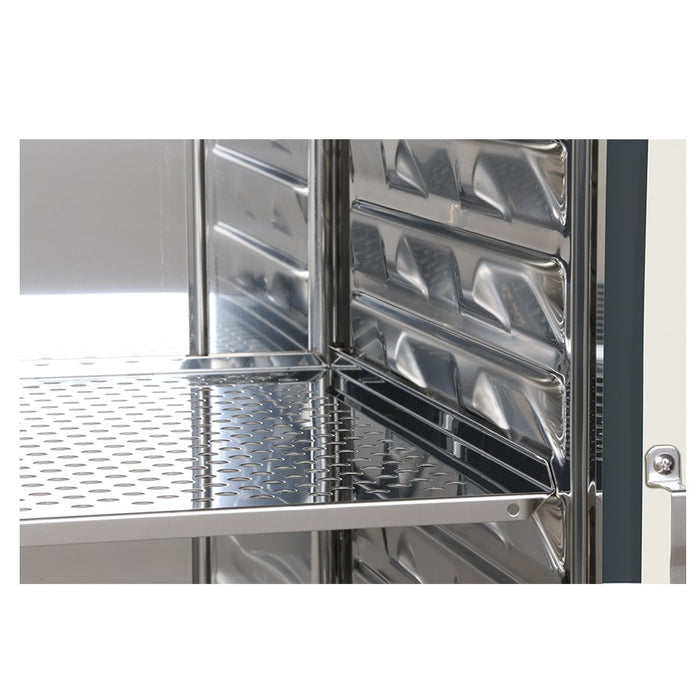

This stackable CO2 incubator offers a removable shelf channel system which allows for easy cleaning, eliminating the need for troublesome shelf brackets and clips. Perforated shelves promote natural temperature and gas uniformity.
Condensation Elimination
The innovative Peltier powered dew stick located in the interior chamber draws condensation away from the inner door, outer door and inside inCu-saFe copper enriched stainless steel surfaces. The dew stick returns moisture to the humidity reservoir and arrests contamination before it can destroy cell cultures.
Specifications
Overview
-
Nominal Height:35.6" (90.42 cm)
-
Nominal Width:24.4" (61.98 cm)
-
Nominal Length:28.7" (72.9 cm)
-
Internal Height:26.2" (66.55 cm)
-
Internal Width:19.3" (49.02 cm)
-
Internal Length:20.6" (52.32 cm)
-
Capacity:5.8
Technical Data
-
Outer Door:Painted steel
-
Shelves:3, (stainless steel copper enriched alloy with integrated shelf support)
-
Access Port:1, Back side (1.2" [30 mm] diameter)
-
Insulation:Rigid polyurethane foamed-in-place
-
UV Lamp:Optional
-
Net Weight:163 lbs (74 kg)
-
Temperature Control Range:Ambient temperature +º5C to +50ºC
-
Temperature Uniformity:±0.25ºC (ambient temperature 25ºC, setting 37ºC, CO2 5 %, no load)
-
Maximum Power Consumption:Max 300 W
-
CO2 Control Range:0% to 20%
-
CO2 Controller:Microcomputer, Input by keypad
-
CO2 Gas Connection:0.157 inch to 0.36 inch (4 mm to 6 mm) diameter tube can be connected
-
CO2 Gas Pressure:0.03 MPa(G) (0.3kgf/cm2(G),4.3 psi(G))
-
CO2 Variation:±0.15% (ambient temperature 25ºC, setting 37ºC, CO2 5%, no load)
-
CO2 Sensor Type:Thermal Conductivity
-
Contamination Controls:InCu-SaFe copper enriched stainless steel interior and shelves, optional SafeCell UV light
-
Display:White graphic OLED readable to 0.1 increments
-
Heating System:Direct Heat and Air Jacket System
-
Humidifying System:Natural evaporation with humidifying pan, 95 %R.H.±5 %R.H.
-
Interior Surfaces:Stainless steel copper enriched alloy
-
Data Management:Optional with LabAlert Monitoring System
