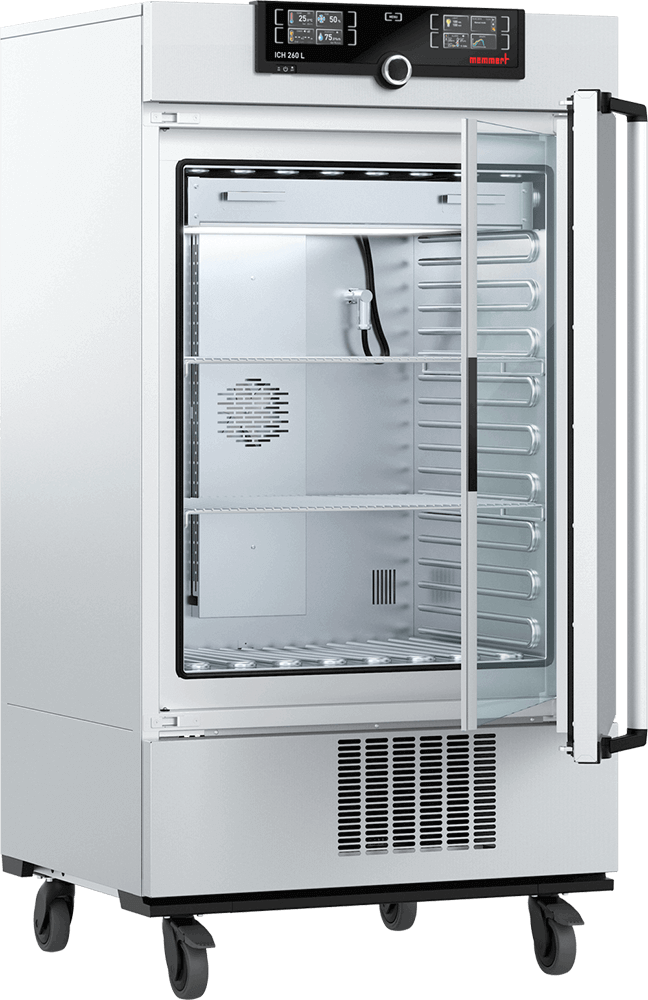

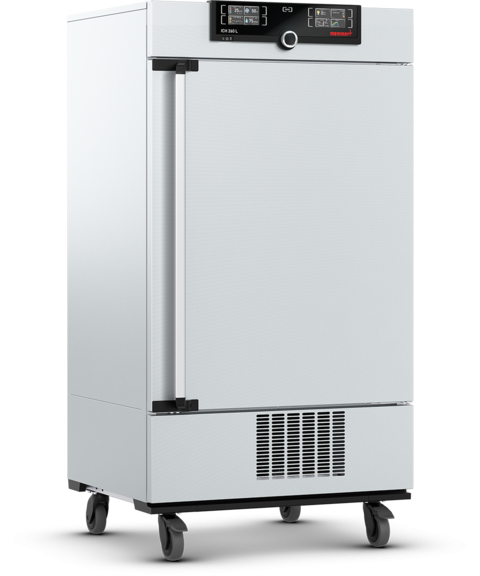

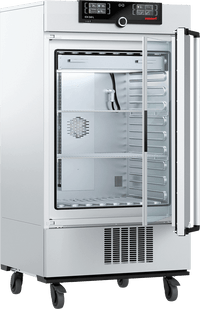

Memmert - ICH 260L, 115V - Stability Climate Chamber

Memmert - ICH 260L, 115V - Stability Climate Chamber

Memmert - ICH 260L, 115V - Stability Climate Chamber

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert

Memmert Climate Chamber ICH 260L, 115V.

Features

Unparalleled homogeneity of temperature and humidity! For stability testing according to ICH - WHO - EMA - ASEAN - GMP - GLP - GCCP.  Memmert USA sells German-built Memmert stability chambers with stainless steel inside and out. The ICH260L stability chamber will save energy and perform well for any project. Memmert Climate Chamber ICH 260L, 115V, light module acc ICH Q1B option 2, light intensity 8,000Lux, 4 Fluorescent lights with cold white light - 2 fluorescent lights with UV lamps. Temp range -10C to +60C without humidity, with humidity 0-60C, RH 10-80%.



  • Stainless Steel: Scratch resistant, hygienic and durable.
  • 2 Year Warranty: A limited 2 year warranty is included with the option to purchase an extra year.
  • AtmoCONTROL: Create and monitor programs.
  • TwinDISPLAY: Twice the features of SingleDISPLAY. Monitor programs easily via Ethernet or USB.

Specifications

Overview

  • Nominal Height:
    61.1" (155.19 cm)
  • Nominal Width:
    32.4" (82.3 cm)
  • Nominal Length:
    27" (68.58 cm)
  • Internal Height:
    31.5" (80.01 cm)
  • Internal Width:
    25.2" (64.01 cm)
  • Internal Length:
    19.7" (50.04 cm)

Temperature - Humidity

  • Working Temperature Range with Humidity:
    10 to 60°C
  • Setting Accuracy Temperature:
    0.1°C
  • Temperature Sensor:
    2 Pt100 sensors DIN Class A in 4-wire-circuit
  • Humidity:
    Humidity supply with distilled water from external tank by self-priming pump
  • Humidification:
    By hot steam generator

Interior - Exterior - Control Technology

  • Stainless Steel Interior - Volume:
    256 L
  • Stainless Steel Interior - Max. Number of Internals:
    5
  • Stainless Steel Interior - Max. Loading per Internal:
    44 lbs / 20 kg
  • Stainless Steel Interior - Max. Loading of Chamber:
    440 lbs / 200 kgs
  • Control Technology - ControlCOCKPIT:
    TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-color displays.
  • Control Technology - Adjustable Parameters:
    Temperature (Celsius or Fahrenheit), fan speed, relative humidity, timer
  • Control Technology - Language Setting:
    German, English, Spanish, French, Polish, Czech, Hungarian
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - Function SetpointWAIT:
    The process time does not start until the set temperature is reached
  • Control Technology - Calibration:
    Three freely selectable values each, temperature/humidity/CO2

Safety - Standard Equipment - Electrical Data

  • Safety - Autodiagnostic System:
    Integral fault diagnostics for temperature and humidity control
  • Safety - Alarm:
    Visual and acoustic
  • Standard Equipment - Door:
    Fully insulated stainless steel doors with 2-point locking (compression door lock)
  • Standard Equipment - Shelving:
    2 stainless steel grids, electropolished
  • Standard Equipment - Works Calibration Certificate:
    Standard values +10°C and +37°C, 60 % rh at +30°C
  • Electrical Data - Electrical Load 115 V (±10%), 50/60 Hz:
    Approx. 1450 W / 12.7 A
