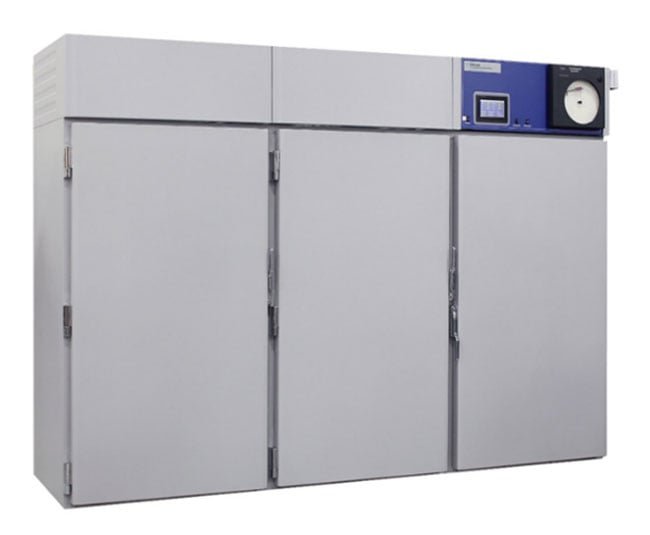

Environmental Specialties LLC - ES2000 Model AM-TW - Triplewide Temp + RH Chamber 114 Cu. Ft.

Environmental Specialties LLC - ES2000 Model AM-TW - Triplewide Temp + RH Chamber 114 Cu. Ft.

Environmental Specialties LLC - ES2000 Model AM-TW - Triplewide Temp + RH Chamber 114 Cu. Ft.

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Stability Chambers Reach-in stability chambers are temperature- and humidity-controlled environmental units that provide stable conditions for storage and testing purposes. Our reach-in stability chambers are capable of maintaining precise levels of temperature and humidity uniformity.

Features

  • Touchscreen LCD controller
  • High and low voltage wiring separated for safe servicing (NFPA 70E Compliant)
  • 2-way (RS-485) or 1-way (4-20mA) communication to controller
  • Horizontal air flow across full vertical height of chamber for uniform distribution
  • Integrated refrigeration equipment on top of chamber
  • Redundant refrigeration system available upon request
  • Condensation removed via optional pump or heated pan
  • Dry Air Tower to extend low humidity performance available upon request
  • 3A duplex receptacle available upon request
  • Chart recorder available upon request
  • Class I Div 2 construction available upon request
  • Electrofin coil coating for corrosive environments available upon request
  • Internal lighting available upon request
  • UPS available upon request
  • 20-year design life
  • MET listed
  • Warranty: 12 months parts and labor

Specifications

Overview

  • Nominal Height:
    91.5" (232.41 cm)
  • Nominal Width:
    123" (312.42 cm)
  • Nominal Length:
    34.5" (87.63 cm)
  • Internal Height:
    60" (152.4 cm)
  • Internal Width:
    116" (294.64 cm)
  • Internal Length:
    28.5" (72.39 cm)
  • Capacity:
    114.8

Technical Data

  • Temp Range:
    35 - 70°C
  • Humidity Range:
    10-96%
  • Volumetric Uniformity:
    ±1.0°C, ±.5.0% RH
  • 4-Wire Electrical Volts/Ø/Amps:
    208-230 / 1 / 30
  • Shelves Std/Max:
    12/57
  • Weight:
    1460 lbs (662 kg)
