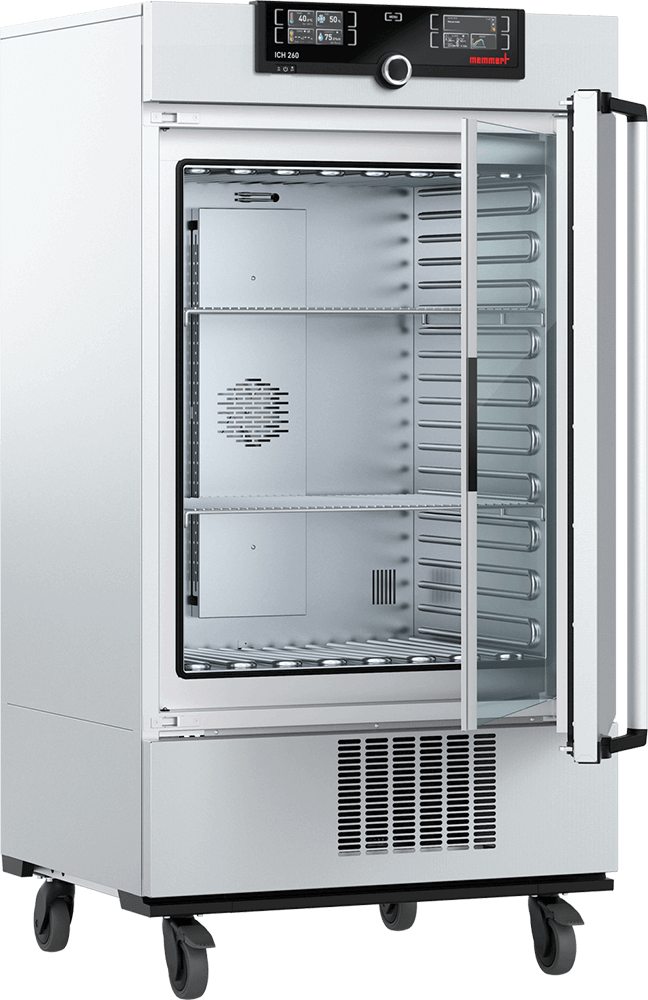

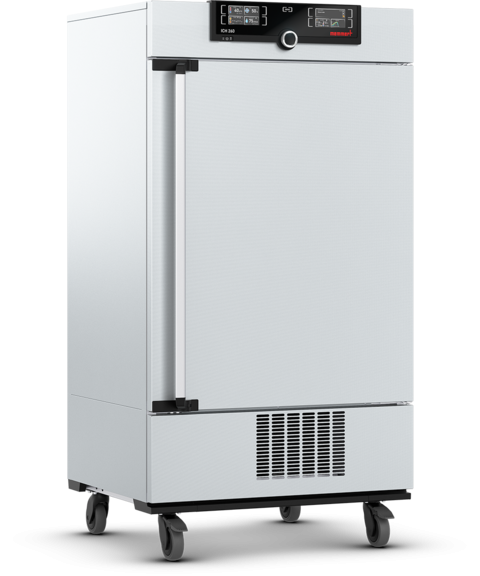

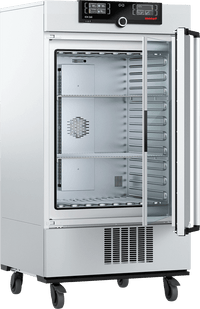

Memmert Climate Chamber ICH 260, 115V 50/60Hz, -10°C to 60°C, 10-80%RH.

Features

Unparalleled homogeneity of temperature and humidity! For stability testing according to ICH - WHO - EMA - ASEAN - GMP - GLP - GCCP. ICH260 Memmert stability climate chambers guarantee the perfect atmosphere for climate and temperature tests. Memmert Climate Chamber ICH 110 L, 115v 50/60Hz 0-60C, 10-60 with humidity and/or light, 10-80%RH, Illumination  acc. ICH Q1B, option 2 - separately switchable via controller, one box,3 fluorescent lights with cold white light. Light color 865 6,500 K, 2 fluo.



  • Stainless Steel: Scratch resistant, hygienic and durable.
  • 2 Year Warranty: A limited 2 year warranty is included with the option to purchase an extra year.
  • AtmoCONTROL: Create and monitor programs.
  • TwinDISPLAY: Twice the features of SingleDISPLAY. Monitor programs easily via Ethernet or USB.

Specifications

Overview

  • Nominal Height:
    45.4" (115.32 cm)
  • Nominal Width:
    32.4" (82.3 cm)
  • Nominal Length:
    27" (68.58 cm)
  • Internal Height:
    31.5" (80.01 cm)
  • Internal Width:
    25.2" (64.01 cm)
  • Internal Length:
    19.7" (50.04 cm)

Temperature - Humidity

  • Setting Temperature without Range:
    -10 to +60 °C
  • Working Temperature Range with Humidity:
    10 to 60°C
  • Setting Accuracy Temperature:
    0.1°C
  • Temperature Sensor:
    2 Pt100 sensors DIN Class A in 4-wire-circuit
  • Humidity:
    Humidity supply with distilled water from external tank by self-priming pump
  • Humidification:
    By hot steam generator

Interior - Exterior - Control Technology

  • Stainless Steel Interior - Volume:
    256 L
  • Stainless Steel Interior - Max. Number of Internals:
    9
  • Stainless Steel Interior - Max. Loading per Internal:
    44 lbs / 20 kg
  • Stainless Steel Interior - Max. Loading of Chamber:
    440 lbs /200 kgs
  • Control Technology - ControlCOCKPIT:
    TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-color displays.
  • Control Technology - Adjustable Parameters:
    Temperature (Celsius or Fahrenheit), fan speed, relative humidity, timer
  • Control Technology - Language Setting:
    German, English, Spanish, French, Polish, Czech, Hungarian
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - Function SetpointWAIT:
    The process time does not start until the set temperature is reached
  • Control Technology - Calibration:
    Three freely selectable values each, temperature and humidity

Safety - Standard Equipment - Electrical Data

  • Safety - Autodiagnostic System:
    Integral fault diagnostics for temperature and humidity control
  • Safety - Alarm:
    Visual and acoustic
  • Standard Equipment - Door:
    Fully insulated stainless steel doors with 2-point locking (compression door lock)
  • Standard Equipment - Shelving:
    2 stainless steel grids, electropolished
  • Standard Equipment - Works Calibration Certificate:
    Standard values +10°C and +37°C, 60 % rh at +30°C
  • Electrical Data - Electrical Load:
    115 V (±10%), 50/60 Hz, Approx. 1350 W / 11.8 A
