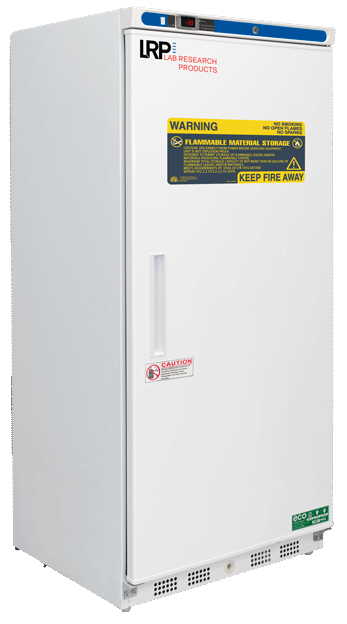

Lab Research Products - LRP-HC-FFP-17 - 17 Cu. Ft. Flammable Storage Freezer Basic Series with Natural Refrigerant

Lab Research Products - LRP-HC-FFP-17 - 17 Cu. Ft. Flammable Storage Freezer Basic Series with Natural Refrigerant

Lab Research Products - LRP-HC-FFP-17 - 17 Cu. Ft. Flammable Storage Freezer Basic Series with Natural Refrigerant

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Flammable storage freezers meet the requirements of NFPA 45 and NFPA 30 for cold storage of flammable and combustible materials in unclassified laboratory locations. Utilizes non-sparking and/or ATEX rated components to ensure an intrinsically safe interior for flammable materials in sealed containers. These units feature temperature alarms, keyed door locks, interior shelving, probe access, and microprocessor temperature control.

Features

The Basic Series Flammable Storage Freezers NFPA and OSHA guidelines 45 and 70 for the refrigerated storage of flammable (volatile) materials in general laboratory work areas. Utilizes ATEX and non-sparking components for safety. These units are NOT designed for use in environments where volatile/explosive conditions could potentially exist.



Freezer models feature a microprocessor temperature controller and display, allow for precise temperature control, verification and recovery versus mechanical style thermostats.



Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) which vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.



Please Note: For manual defrost freezers, periodic manual defrosting is required.  Freestanding models require 4" of clearance around back and sides of unit for proper ventilation.



Details



  • Six fixed shelves
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Leveling legs
  • Probe access port (3/4")
  • Powder coat exterior
  • High density urethane foam cabinet and door insulation
  • Natural, Hydrocarbon Refrigerant (R290)
  • Two year parts and labor warranty
  • Utilizes ATEX and non-sparking components for safety



Temp Controller



  • Microprocessor temperature controller
  • Digital temperature display with sample simulated probe
  • Audible and visual high and low temperature alarms
  • Remote alarm contacts Adjustable operating temperature range: -15°C – -25°C

Specifications

Overview

  • Nominal Height:
    67.75" (172.09 cm)
  • Nominal Width:
    30.75" (78.11 cm)
  • Nominal Length:
    28.63" (72.72 cm)
  • Internal Width:
    26.13" (66.37 cm)
  • Internal Length:
    22.5" (57.15 cm)
  • Capacity:
    17

General Description and Application

  • Door:
    Right Hinged
  • Shelves:
    6 Fixed
  • Freezer Compartments:
    Non-applicable
  • Baskets:
    Non-applicable
  • Mounting:
    Leveling Legs
  • Interior Lighting:
    Non-applicable
  • Airflow Management:
    Non-applicable
  • External Probe Access:
    Rear wall port (3/4" dia.)
  • Insulation:
    Cabinet is foamed-in-place with EPA compliant high density urethane foam
  • Exterior Materials:
    White powder coated steel
  • Access Control:
    Keyed Door Lock
  • Product Weight (lbs):
    215
  • Shipping Weight (lbs):
    240
  • Rated Amperage:
    5.5 Amps
  • Power Plug/Power Cord:
    NEMA 5-15 Plug, 8-10 ft. typical, conforms to UL471 requirements
  • Facility Electrical Requirement:
    115V, 60 Hz
  • Agency Listing and Certification:
    ETL, C-ETL listed, Energy Star Certified

Refrigeration System

  • Refrigerant:
    R290
  • Defrost:
    Manual
