The PHCbi TwinGuard Natural Refrigerants freezer delivers next-generation sample protection with dual cooling security, eco-friendly refrigerants, and energy efficiency. Designed for reliability in critical environments, it maintains performance down to -86°C while reducing energy use by more than 20%. A modern touchscreen interface and integrated access control make it a smarter, greener solution for safeguarding high-value biological materials.

Features

Ultimate Sample Protection



TwinGuard® ultra-low temperature freezers feature a dual cooling system with two independent compressors and circuits. In the event of a malfunction in one circuit, the second circuit seamlessly takes over, sustaining the in-chamber temperature as low as. -75°C, reducing the risk of sameple loss. Designed for reliability in high-stakes environments, TwinGuard freezers ensure continuous protection for irreplaceable research materials.



Integrated Lab Monitoring with LabSVIFT®



LabSVIFT is a cloud-based service built to simplify monitoring and performance tracking. LabSVIFT provides 24/7 monitoring*, real-time alerts, and centralized records compliant with FDA 21 CFR Part 11**. LabSVIFT features health check for PHCbi's MDF-DU303VXH-PA model, which evaluates equipment performance health to ensure optimal operation. Health check provides notifications with suggested corrective actions if any irregularities or abnormal conditions are detected. From routine performance checks to remote monitoring on your smartphone or PC, LabSVIFT helps ensure that your freezer is secure and operating at peak performance.



Intelligent Interface



A modern interface designed for clarity and confidence. The TwinGuard Natural Refrigerants dual-cooling freezer makes monitoring and control simple with a clean design and intuitive controls.

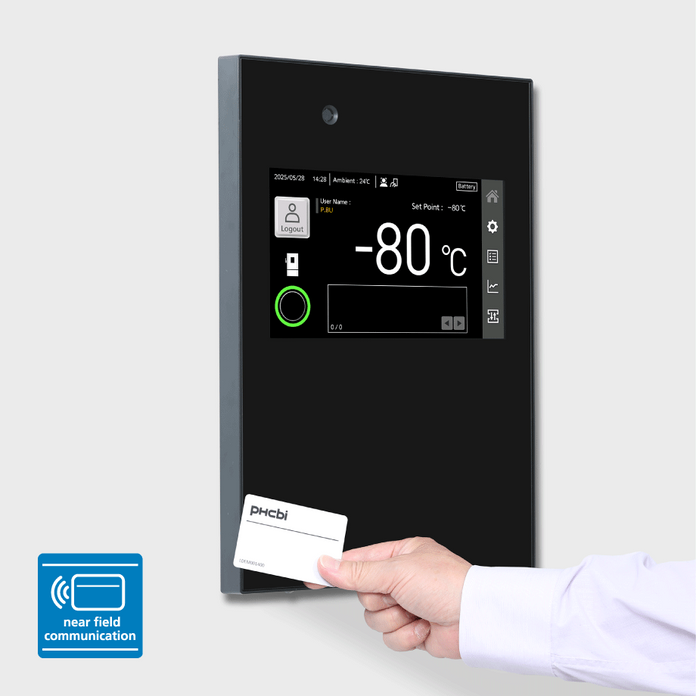

Large 10.1-inch touchscreen



Sleek blank panel, 44% larger for improved visibility and ease of use.



Door activity overlay



Temperature graph shows door openings, helping users quickly spot the cause of fluctuations.



Instant support



Built-in QR codes for easy scanning, gives immediate access to alarm responses and manuals.



Guided self-service tools



Empower users to resolve issues quickly, with service support available when needed.

Specifications

Overview

  • Nominal Height:
    72.4" (183.9 cm)
  • Nominal Width:
    26.4" (67.06 cm)
  • Nominal Length:
    34.7" (88.14 cm)
  • Internal Height:
    47.2" (119.89 cm)
  • Internal Width:
    19.3" (49.02 cm)
  • Internal Length:
    23.6" (59.94 cm)
  • Capacity:
    12.7

Technical Data

  • Internal Doors:
    2 insulated, ABS, with stainless steel frames and positive latches
  • Insulation:
    Foamed-in-place and VIP Plus vacuum insulated panels
  • Shelves:
    Stainless steel, 3 shelves (adjustable)
  • Inner Dimensions:
    18.7" W x 20.9" D (475 x 531 mm)
  • Load:
    110 lbs (50 kg) per shelf
  • Access Port:
    3, upper back wall (back-up system), bottom left (recorder sensor), bottom right (access)
  • Inner Diameter:
    0.6 in (17 mm)
  • Net Weight:
    496 lbs (225 kg)
  • Compressor:
    (2) 550 W
  • Refrigerant:
    HC Mixed refrigerant [R-600/R-170/R-50] 117.5g per circuit
  • Temperature Control Range:
    -40°C to -86°C in 1° increments (center of chamber, ambient temperature 30°C, no load)
  • Alarms:
    High temperature, low temperature, power failure, door ajar, remote alarm, battery life, fan motor life, fan lock, cooling circuit abnormality
  • Cooling Performance:
    Normal operation -86°C center of chamber (ambient temp. 30°C, no load), Secondary operation -75°C center of chamber (ambient temp. 30°C, no load)
  • Temperature Control System:
    Microprocessor, touchscreen data entry, password protected
  • Area Footprint:
    6.36 ft2 (0.59 m2)
  • Data Management:
    USB Retreivable data, Cloud IoT capable with LabSVIFT
  • Sound Level:
    52 dB(A) (background noise 20 dB(A))
  • Voltage:
    220 V 60 HZ NEMA 6-15
  • Storage (Boxes) For 2"/51 Mm Fiberboard Boxes:
    240
  • Storage (Racks) For 2"/51 Mm Fiberboard Boxes:
    12
  • Storage (Boxes) For 3"/76 Mm Fiberboard Boxes:
    144
  • Storage (Racks) For 3"/76 Mm Fiberboard Boxes:
    12
