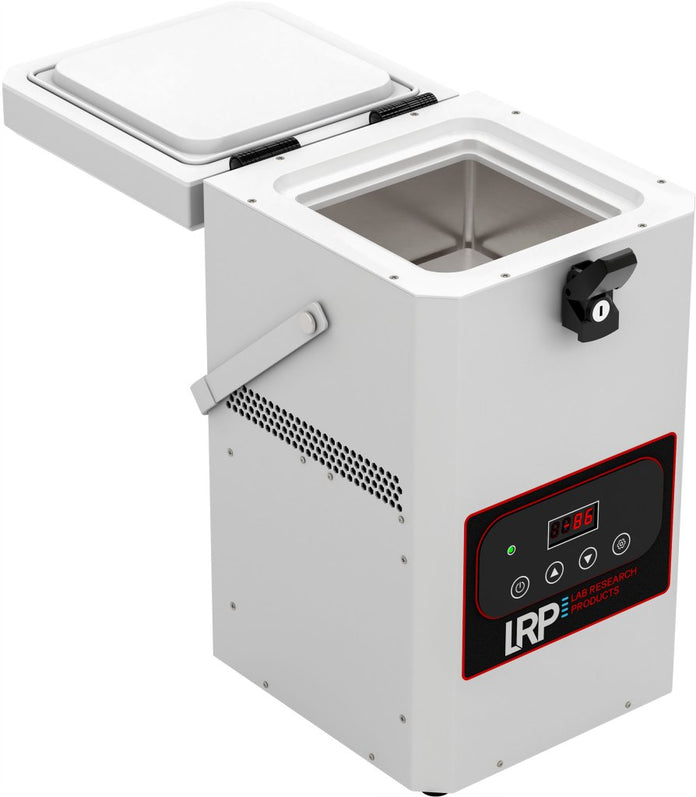

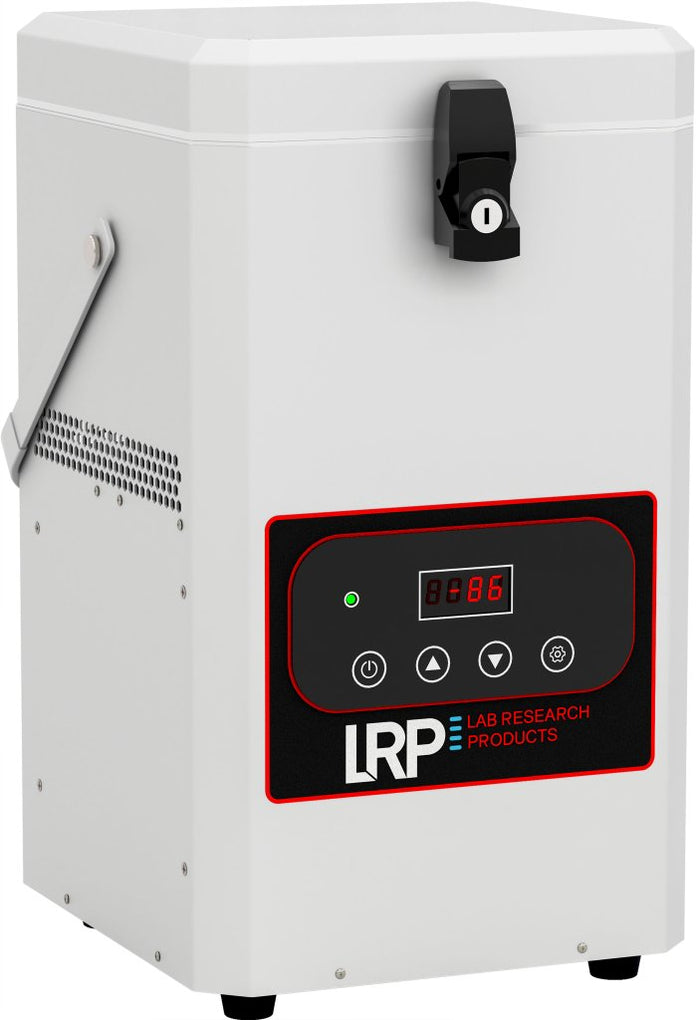

This ULT Benchtop Freezer delivers reliable ultra-low temperature performance in a compact design.

Features

Engineered with Stirling engine technology and helium refrigerant, this unit provides efficient cooling down to -86°C while maintaining low energy consumption and quiet operation. Designed for benchtop convenience, the freezer features a top-access swing door with a compression latch closure and a keyed lock for safety. This compact ULT is ideal for specialty applications where dependable -86°C storage is required without the footprint of a full-size ULT freezer.

Specifications

Overview

  • Nominal Height:
    18.5" (46.99 cm)
  • Nominal Width:
    10.25" (26.04 cm)
  • Nominal Length:
    11" (27.94 cm)

General Description and Application

  • Storage Capacity:
    5.25" x 5.25" x 3" cryogenic sample storage box
  • Door:
    Top access swing door, compression latch closure
  • Freezer Compartment:
    One, top access
  • Mounting and Installation:
    Rubber feet
  • Interior Lighting:
    Non-applicable
  • Airflow Management:
    Non-applicable
  • External Probe Access:
    Non-applicable
  • Insulation:
    Enclosure is foamed-in-place with EPA compliant high density urethane foam and VIPs
  • Exterior Materials:
    White powder coated steel
  • Access Control:
    Keyed door lock
  • General Warranty:
    Two (2) years parts and labor warranty
  • Compressor Warranty:
    Non-applicable
  • Product Weight (lbs):
    21
  • Shipping Weight (lbs):
    40
  • Exterior Width (in):
    10.25"
  • Exterior Depth (in):
    11"
  • Exterior Height (in):
    18.5"
  • Rated Amperage (AC):
    1 Amp,
  • Rated Amperage (DC):
    10 Amps
  • Power Plug/Power CorD (AC):
    NEMA 1-15P plug
  • Power Plug/Power CorD (DC):
    12V automotive socket
  • Facility Electrical Requirement (AC):
    110-127V, 15A, NEMA 5-15 receptacle
  • Facility Electrical Requirement (DC):
    12V, 15A fuse, automotive socket
  • Agency Listing and Certification:
    cETLus, CE, FC, RoHS, UK CA. 24V DC system operating voltage

Performance

  • Energy Consumption (kWh/day):
    <1.10 kWh/day
  • Average Heat Rejection (kWh/day):
    <1.33 kWh/day
  • Average Heat Rejection (BTU/hr):
    <190 BTU/hr
  • Noise Pressure Level (dBA):
    45 dBA or less installed
  • Pull Down Time to Nominal Operating Temp:
    <210 min to -86C (empty)

Refrigeration System

  • Compressor:
    Stirling engine
  • Refrigerant:
    Helium
  • Condenser:
    Integral heatsink
  • Evaporator:
    Integral cold plate
  • Defrost:
    Manual defrost
