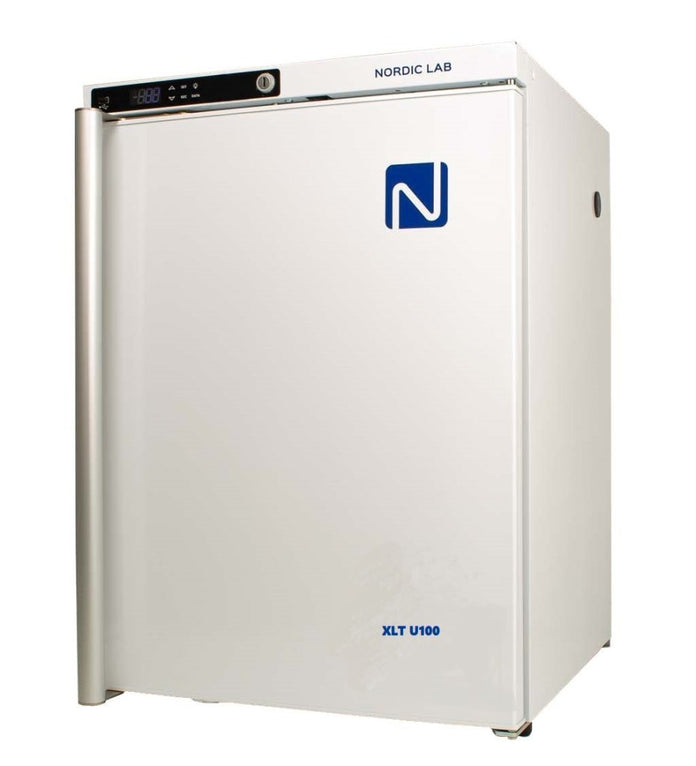

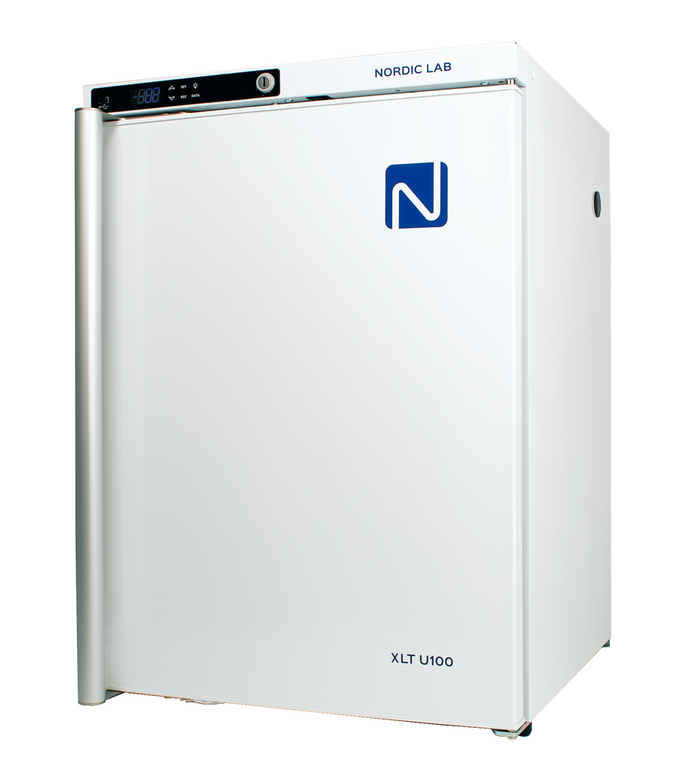

Nordic Lab - XLT U100-110V - (-65°C) Extra Low Temperature Upright Undercounter Freezers, 110V/60Hz

Nordic Lab - XLT U100-110V - (-65°C) Extra Low Temperature Upright Undercounter Freezers, 110V/60Hz

Nordic Lab - XLT U100-110V - (-65°C) Extra Low Temperature Upright Undercounter Freezers, 110V/60Hz

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert

It has become more common to centralize samples storage in freezer rooms or biobanks. Labs which are processing a larger number of samples often experience significant time consumption in handling samples to and from the storage facility.

Features

It has become more common to centralize samples storage in freezer rooms or biobanks. Labs which are processing a larger number of samples often experience significant time consumption in handling samples to and from the storage facility.



To have a small freezer in the Lab can save a lot of time in the daily work. The capacity of the undercounter freezer in many cases gives enough storage capacity for the users study.



Choose an undercounter freezer for applications where the user needs quick access, needs a sample hub before sending the samples to the central storage freezers or have a limited demand for storage capacity.



  • Pull down time at start up is less than 173 minutes.
  • A power consumption of 6,7 kWh/24h.
  • Large storage capacity.

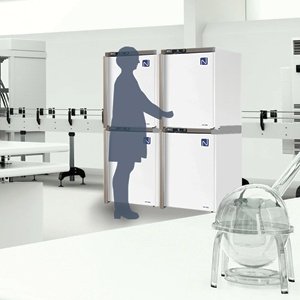

  • Stackable.
  • Noise level below 57 dB.

Specifications

Overview

  • Nominal Height:
    32.48" (82.5 cm)
  • Nominal Width:
    23.42" (59.49 cm)
  • Nominal Length:
    24.8" (62.99 cm)
  • Capacity:
    3.2

Technical Data

  • Gross Volume:
    93 litres
  • Min. Temperature:
    -65°C
  • Max. Temperature:
    -25°C
  • Refrigerant:
    Nature R
  • Adjustable Shelves:
    2
  • Power Consump. 24/h:
    4,6 kWh
  • Voltage:
    110V / 60Hz
  • Compressor Type:
    Single stage

Material & Features

  • Inner:
    Precoated white steel
  • Outer:
    Galvanized pre-coated steel
  • Audible & Visual Alarm:
    YES
  • Castors:
    NO
  • Inner Doors:
    NO
  • Defrost:
    Manual
  • Integrated Lock:
    YES
  • Battery Backup:
    48h
  • USB:
    YES
  • Data Connection:
    MODBUS
  • Digital Controller:
    XW737K
  • High/Low Temperature Alarm:
    YES
  • Adjustable Shelves, Stainless Steel:
    2
  • Door Vacuum Release:
    Automatic
  • Portholes For External Probe & CO2 Backup:
    Ø20 mm
  • Prepared For External Logging Equipment:
    YES
  • Connection For Remote Alarm:
    YES

Dimensions Details

  • Depth (incl. condenser):
    630 mm
  • Net Weight:
    60 kg
  • Internal Height:
    625/395 mm
  • Internal Width:
    430 mm
  • Internal Depth:
    425/205 mm
  • Insulation:
    80 mm
  • Insulation Type:
    PUR
  • Internal Humidity:
    <5 %
