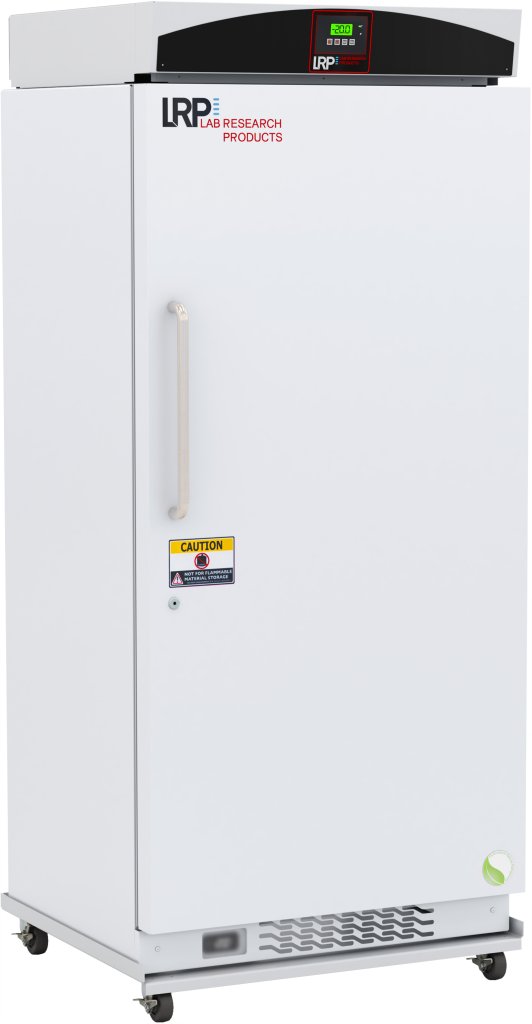

This Plus Series manual defrost freezer offers 30 cubic feet of versatile storage for laboratory environments.

Features

Featuring variable speed compressor technology, this freezer delivers powerful cooling designed to save energy and enhance system performance. Its temperature control is powered by microprocessor technology, protecting samples down to -25°C. Enjoy a robust alarm system to protect your samples, and benefit from natural hydrocarbon refrigerants that meet EPA SNAP standards for environmental safety. With low energy consumption and environmental benefits, this model is an efficient and next-level solution for diverse laboratory applications.

Specifications

Overview

  • Nominal Height:
    76.5" (194.31 cm)
  • Nominal Width:
    35.75" (90.81 cm)
  • Nominal Length:
    35.5" (90.17 cm)
  • Internal Height:
    59.5" (151.13 cm)
  • Internal Width:
    32" (81.28 cm)
  • Internal Length:
    22.5" (57.15 cm)
  • Capacity:
    30

General Description and Application

  • Door:
    One (1) solid swing, right hinged, stainless steel door handle, magnetic door gasket
  • Interior:

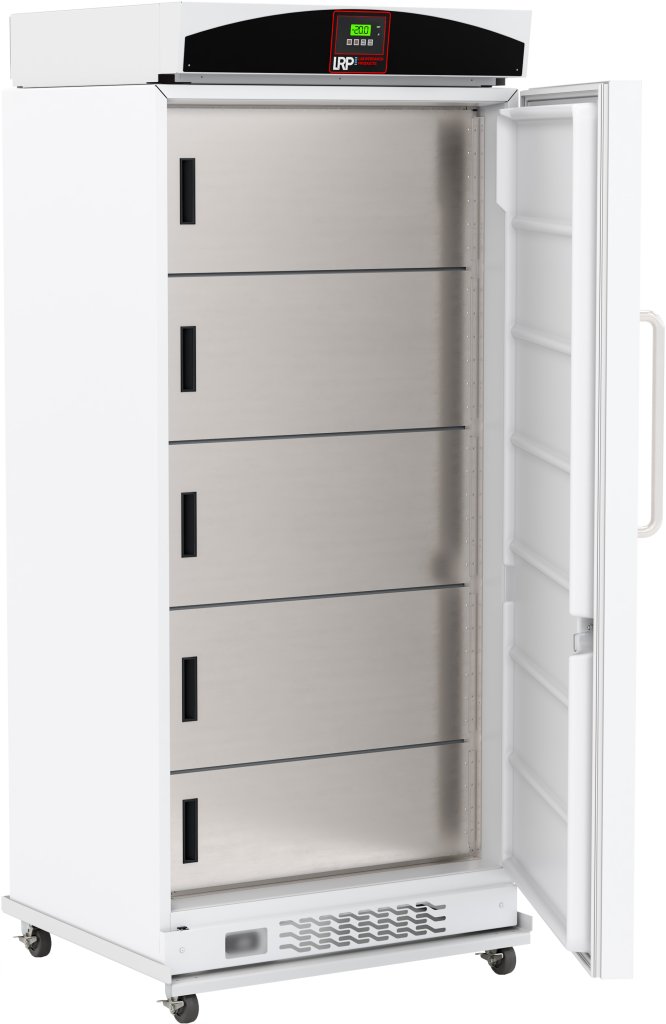

    Five (5) inner fast-freeze compartments with doors for temperature maintenance
  • Shelves:
    Four (4) fixed evaporator shelves
  • Mounting and Installation:
    Caster platform
  • External Probe Access:
    3/4" probe access port on rear wall
  • Insulation:
    EPA compliant high density urethane foam
  • Exterior Materials:
    Powder coated steel
  • Access Control:
    Keyed door lock
  • General Warranty:
    Two (2) year parts and labor warranty
  • Compressor Warranty:
    Five (5) year compressor parts warranty
  • Product Weight (lbs):
    330
  • Shipping Weight (lbs):
    360
  • Rated Amperage:
    3.3 Amps
  • Power Plug/Power Cord:
    NEMA 5-15P plug, 6 ft long cord
  • Facility Electrical Requirement:
    110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
  • Agency Listing and Certification:
    UL listed per UL 60335-1 and UL 60335-2-89 standards, c UL listed per CSA C22.2 No. 120 standard

Performance

  • Uniformity (Cabinet Air):
    +/- 3°C
  • Stability (Cabinet Air):
    +/- 3°C
  • Maximum Temperature Variation (Cabinet Air):
    7°C Total
  • Energy Consumption (kWh/day):
    4.9 kWh/day
  • Average Heat Rejection (BTU/hr):
    690 BTU/hr
  • Pull Down Time to Nominal Operating Temp:
    75 min (empty)

Refrigeration System

  • Compressor:
    Hermetic, variable speed
  • Refrigerant:
    EPA SNAP compliant R290 propane
  • Condenser:
    Static - exterior walls of cabinet with auxiliary fan
  • Evaporator:
    Evaporator shelves
  • Defrost:
    Manual defrost
