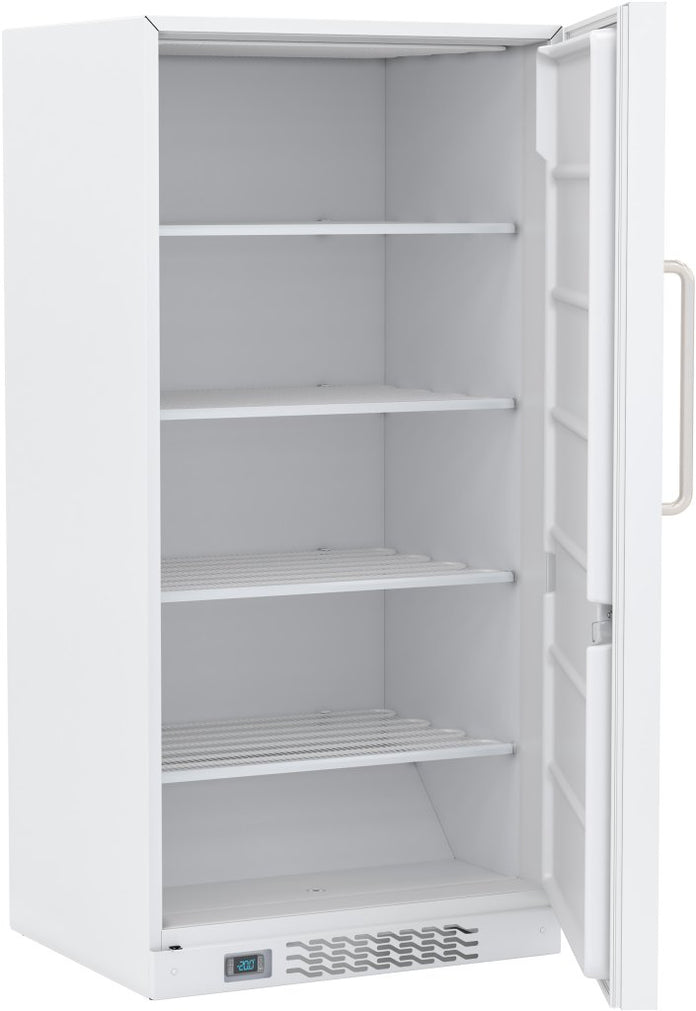

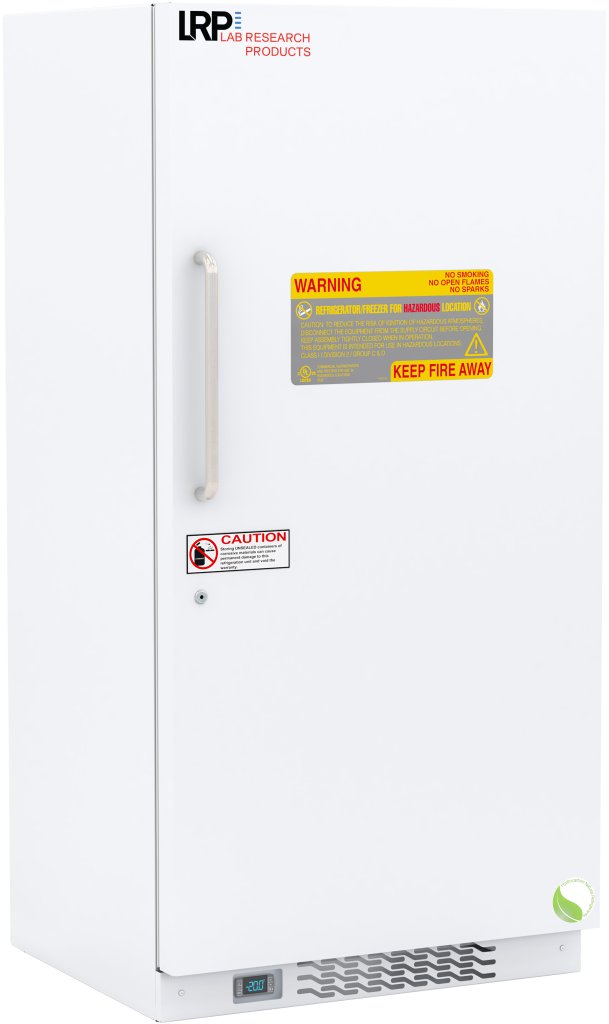

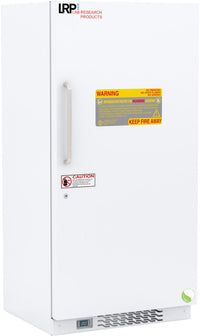

Lab Research Product - LRP-HC-EFS-30 - 30 Cu. Ft. Basic Series Hazardous Location Freezer
Features
This model is the ideal choice for industrial environments requiring strict safety protocols. It delivers 30 cubic feet of spacious storage and utilizes EPA SNAP compliant natural refrigerants for environmentally responsible operation. Powered by microprocessor temperature technology, this model delivers precise and stable temperature control. Please note that this unit must be hardwired for safety. With low energy consumption and high safety standards, this model is a safe and efficient solution for hazardous laboratory locations and industrial settings.
Specifications
Overview
-
Capacity:30
General Description and Application
-
Door:One (1) solid swing, right hinged, stainless steel door handle, magnetic door gasket
-
Shelves:Four (4) fixed evaporator shelves
-
Mounting and Installation:Leveling legs
-
External Probe Access:3/4" probe access port on rear wall
-
Insulation:EPA compliant high density urethane foam
-
Exterior Materials:Powder coated steel
-
Access Control:Keyed door lock
-
General Warranty:Two (2) year parts and labor warranty
-
Compressor Warranty:Five (5) year compressor parts warranty
-
Product Weight (lbs):300
-
Shipping Weight (lbs):330
-
Rated Amperage:3.3 Amps
-
Power Plug/Power Cord:Power cord not included, final power connections must be hardwired to meet local codes
-
Facility Electrical Requirement:110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
-
Agency Listing and Certification:UL listed per UL 60335-1 and UL 60335-2-89 standards, c UL listed per CSA C22.2 meet NFPA and OSHA guidelines for hazardous locations, Class 1 Division II, Groups C & D
Performance
-
Uniformity (Cabinet Air):+/- 3°C
-
Stability (Cabinet Air):+/- 4°C
-
Maximum Temperature Variation (Cabinet Air):8°C Total
-
Energy Consumption (kWh/day):5.0 kWh/day
-
Average Heat Rejection (BTU/hr):705 BTU/hr
-
Pull Down Time to Nominal Operating Temp:70 min (empty)
Refrigeration System
-
Compressor:Hermetic, variable speed
-
Refrigerant:EPA SNAP compliant R290 propane
-
Condenser:Static - exterior walls of cabinet with auxiliary fan
-
Evaporator:Evaporator shelves
-
Defrost:Manual defrost
