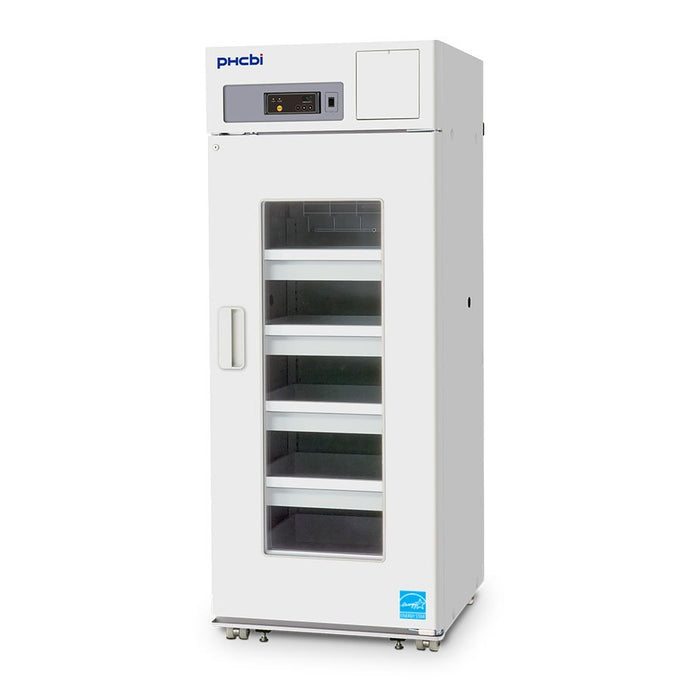

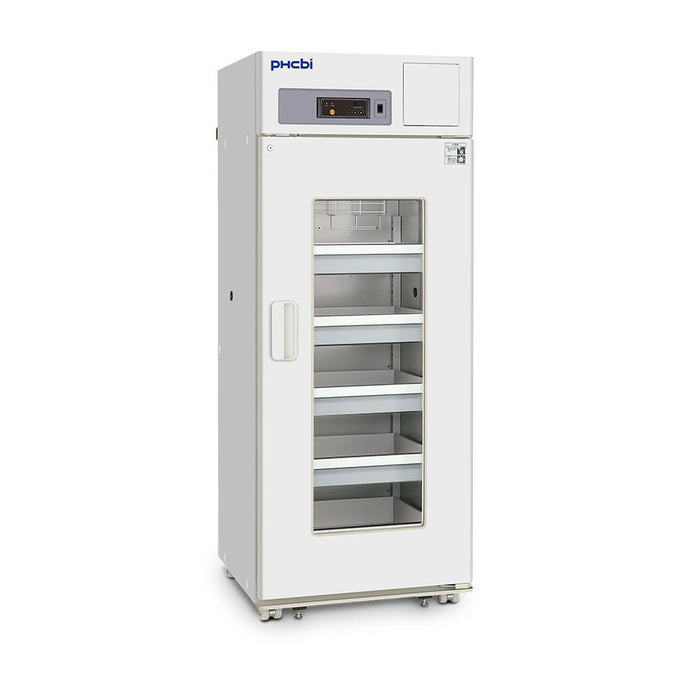

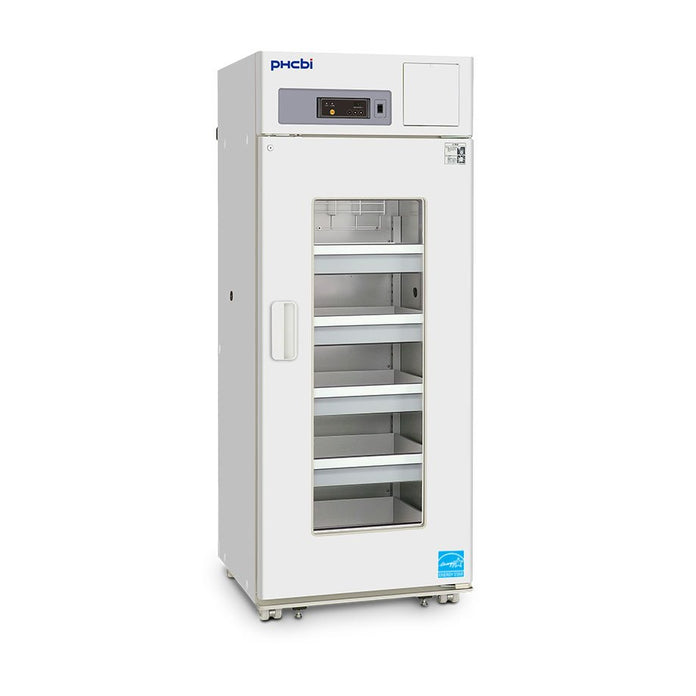

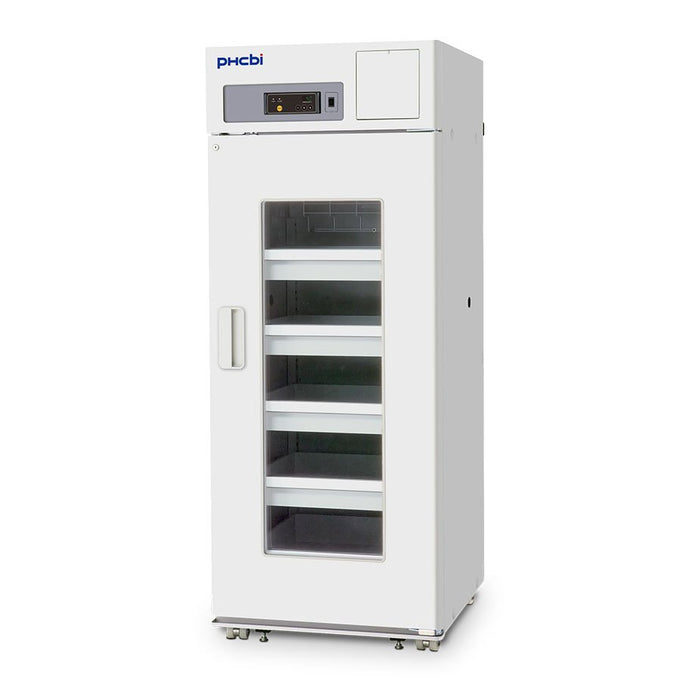

The MPR-722R-PA is an upright pharmacy refrigerator offering a stable and reliable environment for managing clinical, pharmaceutical and industrial research at uniform temperatures. Easy to use features and design and precise temperature control provides the ideal climate for various laboratory procedures including biomedical storage and processing.

Features

SNAP Refrigerants and PHC Compliance with EPA Recommendations



Model MPR-722R-PA operates on new generation SNAP compliant, low flammability HFO refrigerants to assure low environmental impact. The use of SNAP compliant refrigerants (Significant New Alternatives Policy) established by the United States Environmental Protection Agency underscores our recognition of social responsibility and environmental sustainability by integrating the latest refrigeration technology.



Purpose-Built Cold Chain Storage



PHCbi brand pharmaceutical refrigerators are engineered from the inside out to create, maintain and restore precise temperatures necessary for vaccine storage. Our purpose-built vaccine storage refrigerators are designed for temperature uniformity and stability that is not commonly found with household or commercial cabinets. PHCbi brand vaccine refrigerators satisfy current and evolving storage protocols essential for vaccine cold chain storage.



Adjustable Design



This eco-friendly pharmacy refrigerator offers a practical solution for storage with adjustable shelves and a wide setpoint range for varying laboratory applications, including biomedical storage and processing. The interior layout makes it ideal for running experiments that require changeable shelf configurations. The shelves can be arranged to accommodate all heights, and deep and strong enough to hold processing equipment and most devices.

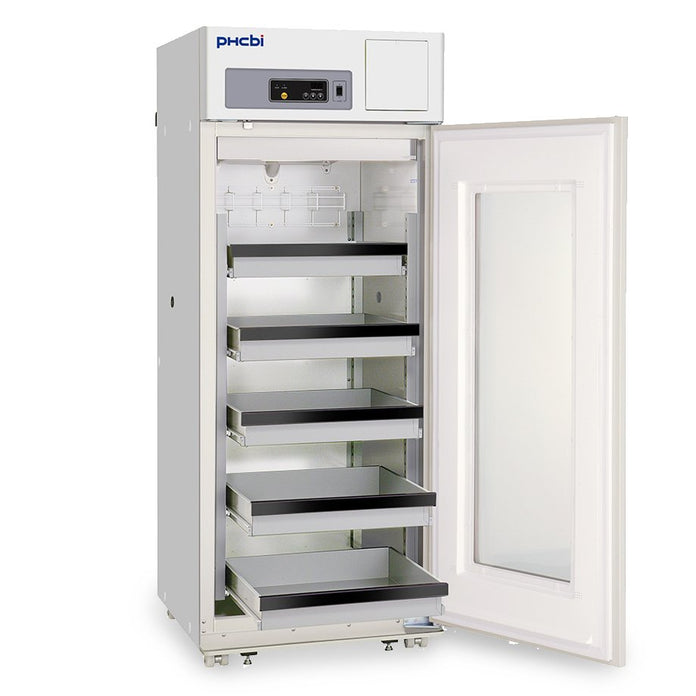

This model is fitted with stainless steel pull out drawers. These drawers are deep enough to hold large bottles of reagent kits. They also allow convenient and space efficient storage.



Cycle Defrost System



Defrosting is performed automatically and only when required, protecting contents against unnecessary temperature rise. The defrosting heater provides protection from freezing in extremely low ambient temperature conditions.



Microprocessor Controller and Alarms



The temperature control system, with a microprocessor, maintains true temperature at the set level and is unaffected by outside ambient temperature. Audible and flashing LED visual alarms alert the user to the unlikely event of either a high or low temperature status.



Uniform Temperature with Forced Air Circulation



The fan-forced air circulation and efficient temperature recovery properties allow for precise temperature conditions.



Efficient and Superior Upright Pharmaceutical Refrigerator



High performance compressors and components deliver fast temperature pull-down, recovery and tolerance for high ambient temperature conditions. This energy efficient system improves LEED scores and contributes to global sustainability.



Watch the video

Specifications

Overview

  • Nominal Height:
    76.9" (195.33 cm)
  • Nominal Width:
    30.3" (76.96 cm)
  • Nominal Length:
    36.2" (91.95 cm)
  • Internal Height:
    59" (149.86 cm)
  • Internal Width:
    25.6" (65.02 cm)
  • Internal Length:
    27.9" (70.87 cm)
  • Capacity:
    23.7

Technical Data

  • Insulation:
    CFC free urethane
  • Access Port:
    3, Left/right sides, ceiling (1.1" (30 mm) diameter)
  • Drawers:
    5
  • Cooling Method:
    Uniformity forced air
  • Compressor:
    Hermetic type, Output 200 W
  • Refrigerant:
    SNAP Approved HFO R-513A
  • Defrosting:
    Electronically monitored evaporator
  • Temperature Control Range:
    2 to 23ºC
  • Alarms:
    High temperature, low temperature, door ajar, power failure
  • Net Weight:
    425 lbs (193 kg)
  • Door Lock:
    Key
  • Temperature Control System:
    Microprocessor Control System
  • Area Footprint:
    9.08 sq.ft. (0.84 m2)
  • Data Management:
    Optional with LabAlert Monitoring System
  • Sound Level:
    48 dB(A) (background noise 20 dB(A))
  • Energy Star Certified:
    Energy Star Unique ID 2368967
