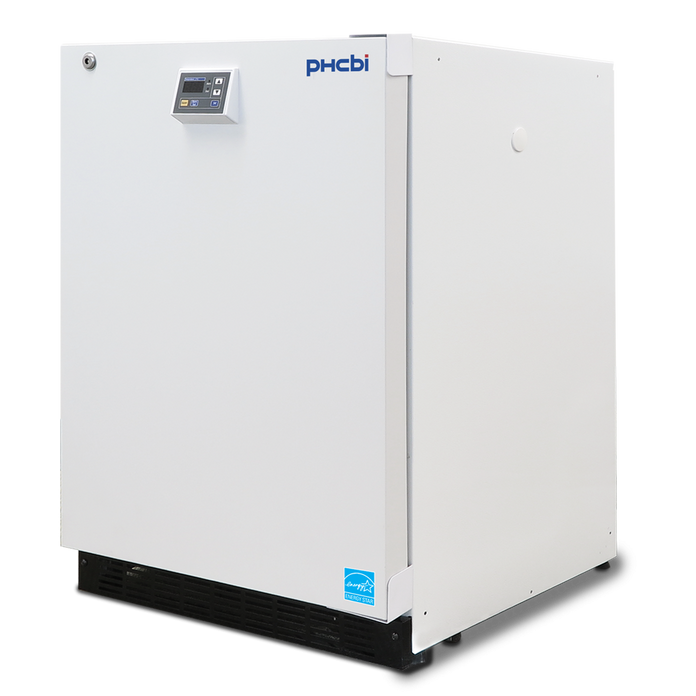

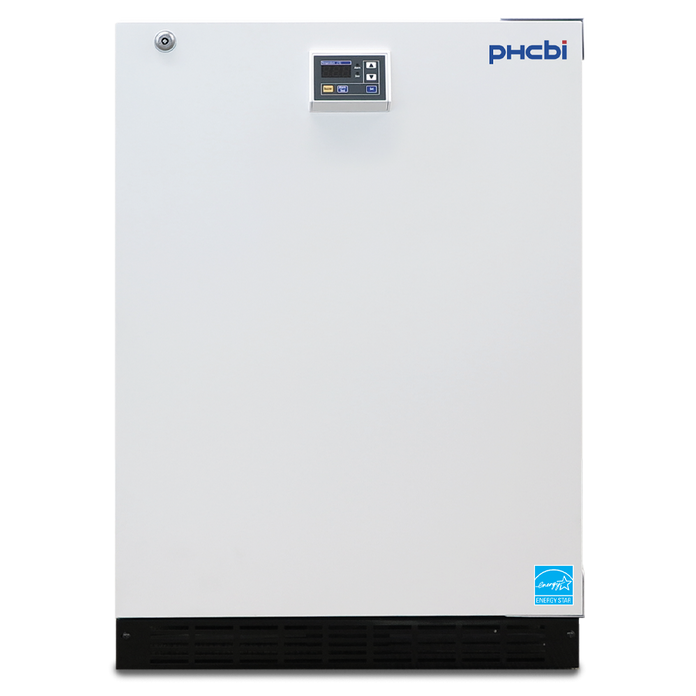

PHCbi - PF-L5181W-PA - ENERGY STAR Certified Undercounter Medical Freezer

PHCbi - PF-L5181W-PA - ENERGY STAR Certified Undercounter Medical Freezer
PHCbi - PF-L5181W-PA - ENERGY STAR Certified Undercounter Medical Freezer

PHCbi - PF-L5181W-PA - ENERGY STAR Certified Undercounter Medical Freezer

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The PF-L5181W-PA high performance undercounter freezer is designed to maintain temperatures between -15°C and -25°C with a tight uniformity of ±5°C for storing critical vaccines and biologics. This model is engineered to meet CDC guidelines in a small footprint. Precise temperature control and uniformity protect vaccine and biologic viability whether the unit is loaded or empty.

Features

Temperature Control Precision



This freezer features precise temperature control engineered to meet the current and evolving criteria for vaccine storage while requiring less energy than traditional undercounter medical freezers. The purpose-built PF-L5181W-PA is designed to maintain the high performance necessary for valuable inventory using the latest inverter compressor speed technology for optimum control.



Ease of Use and Accessibility



With a compact footprint, the PF-L5181W-PA is designed for functional workspaces and fits under most tables, cabinets and lab benches. The solid door protects light-sensitive materials. If a door is left ajar, the self-closing mechanism mitigates scenarios that could result in lost product. An alarm provides an even deeper level of protection. An optional stacking accessory is available to maximize storage capacity when space constraints become a concern.



Temperature Uniformity Even When Full



Many high performance vaccine storage freezers can maintain precise temperatures when they are empty. The PF-L5181W-PA vaccine freezer has been designed to maintain high performance temperature uniformity of ±5°C even when loaded, as often occurs during peak vaccine season. This model features evaporator shelving and forced air circulation within the chamber to ensure swift temperature pull-down upon startup and rapid recovery after door openings.



Energy and Sustainability



This ENERGY STAR Certified undercounter biomedical freezer provides energy efficiency and sustainability without compromising performance. Traditional refrigerants have been replaced with environmentally friendly natural refrigerants to meet EPA Significant New Alternatives Policy (SNAP) guidelines and the AIM Act of 2020 for low global warming potential and no ozone-depleting substances.



Microprocessor Control and Alarm



The unit has a door-mounted control with an easy to view LED display that features preset automatic alarm tracking around the temperature setpoint. The alarm is set at 3°C above and below setpoint, consistent with vaccine and high-value product storage requirements.



Manual Defrost System



The PF-L5181W-PA is a manual defrost high performance undercounter medical freezer. This ensures that sensitive frozen enzymes or vaccines are not exposed to temperature deviation common with freezers containing an auto defrost cycle.

Specifications

Overview

  • Nominal Height:
    34.1" (86.61 cm)
  • Nominal Width:
    23.8" (60.45 cm)
  • Nominal Length:
    23.7" (60.2 cm)
  • Internal Height:
    25.6" (65.02 cm)
  • Internal Width:
    19.9" (50.55 cm)
  • Internal Length:
    17.1" (43.43 cm)
  • Capacity:
    5

Technical Data

  • Shelves and Shelf Dimensions:
    3, coated steel wire, Dimensions 19.2" x 14.75" (487 x 375 mm)
  • Access Port:
    1, Right side of product (1.2" (30 mm) diameter)
  • Compressor:
    40 W (hermetic, inverter driven)
  • Refrigerant:
    R-600a
  • Temperature Control Range:
    -15 to -25 in 0.1°C increments
  • Alarms:
    Power failure (Optional), high temperature deviation (V-B), low temperature deviation (V-B), door open (V-B), sensor failure (V) V=Visual, B=Buzzer
  • Net Weight:
    100 lbs (45 kg)
  • Electrical Requirements:
    115V, 60Hz, 1Ø, NEMA 5-15P requires NEMA 5-15R receptacle
  • Doors:
    1, Electro galvanized steel
  • Insulation:
    HFO foamed-in-place
  • Temperature Display:
    LED
  • Door Lock:
    Key lock, top mounted with 2 keys
  • Energy Star Certified:
    Energy Star Unique ID 2396856
