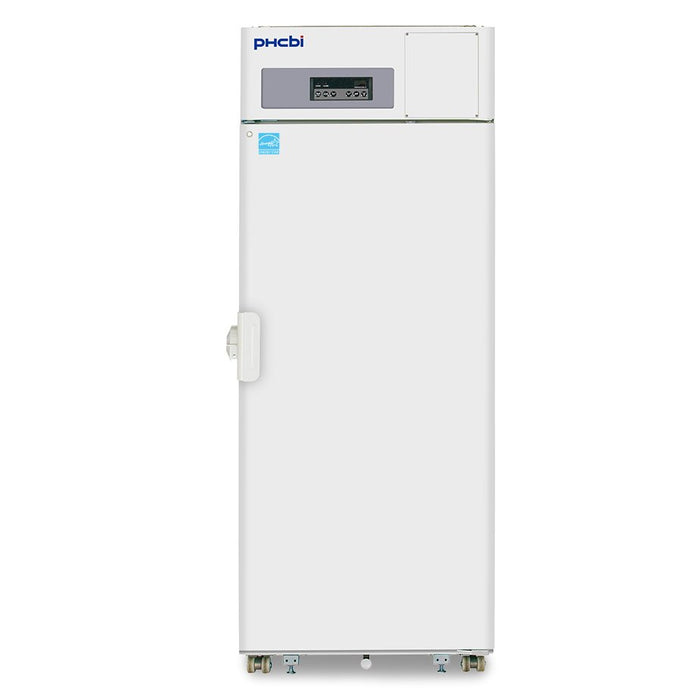

PHCbi - MDF-U731-PA - 22.0 Cu. Ft. -30°C Upright Laboratory Grade Freezer

Features
Purpose-Built Cold Chain Storage
PHCbi brand biomedical freezers are engineered from the inside out to create, maintain and restore precise temperatures necessary for vaccine storage. Our purpose-built -30°C to -40°C vaccine storage freezers are designed for temperature uniformity and stability that is not commonly found with household or commercial cabinets. PHCbi brand vaccine cold chain storage solutions satisfy current and evolving storage protocols essential for continued vaccine efficacy.
Optimum Storage Capabilities
PHCbi biomedical freezers offer auto defrost storage solutions for uniformity, reliability and environmentally safe operation. This upright medical-grade and laboratory grade freezer provides storage at -30°C with electronically controlled auto-defrost, which occurs only on demand. It leads to minimized temperature spikes and maintenance-free storage. No need for end user intervention to defrost unit and clean up condensate.
Optimized Design and High Performance
Constructed with high performance laboratory and clinical grade refrigeration systems, these high performance biomedical freezers are used in clinical, biotechnology and industrial labs. Unlike many other cold wall freezers, the High Performance Biomedical Freezers Series has cooling coils strategically spaced in the walls, along both sides, the back, the top and the bottom of the chamber to ensure maximum cooling performance.
Superior Temperature Uniformity
The robust refrigeration system, powered by PHCbi compressors, provides dependable cooling by balancing temperature performance and energy management.
Microprocessor Controller and Alarms
Comprehensive setpoint, alarm, monitoring and diagnostic functions are maintained by PHC-built microprocessor controller with digital display of all input/output function.
Specifications
Overview
-
Nominal Height:77" (195.58 cm)
-
Nominal Width:30.3" (76.96 cm)
-
Nominal Length:32.7" (83.06 cm)
-
Internal Height:54" (137.16 cm)
-
Internal Width:25.6" (65.02 cm)
-
Internal Length:27.6" (70.1 cm)
-
Capacity:22
Technical Data
-
Insulation:Rigid polyurethane foamed-in-place
-
Shelves:Polyurethane coated wire, 4 shelves, (allowable load 110 lbs. [50 kg]/shelf)
-
Shelves - Dimensions:24.6" x 24.4" (626 x 620 mm)
-
Access Ports:2 Side, 1 top (1.2" (30 mm) diameter)
-
Net Weight:155 kg (342 lbs)
-
Cooling Performance:-15ºC to -30ºC (Ambient temperature 5ºC to 35ºC, no load)
-
Compressor:Hermetic type (output
-
Refrigerant:SNAP and CARB Approved HFO R-449A
-
Alarms:High temperature, low temperature, door, power failure, remote alarm terminal
-
Temperature Control System:Microprocessor Control System
-
Construction:Interior and exterior painted steel
-
Energy Consumption:6.72 kWh/day
-
Temperature Sensor:Thermistor
-
Data Management:Optional with LabAlert Monitoring System
-
Energy Star Certified:ENERGY STAR Unique ID 2296326
