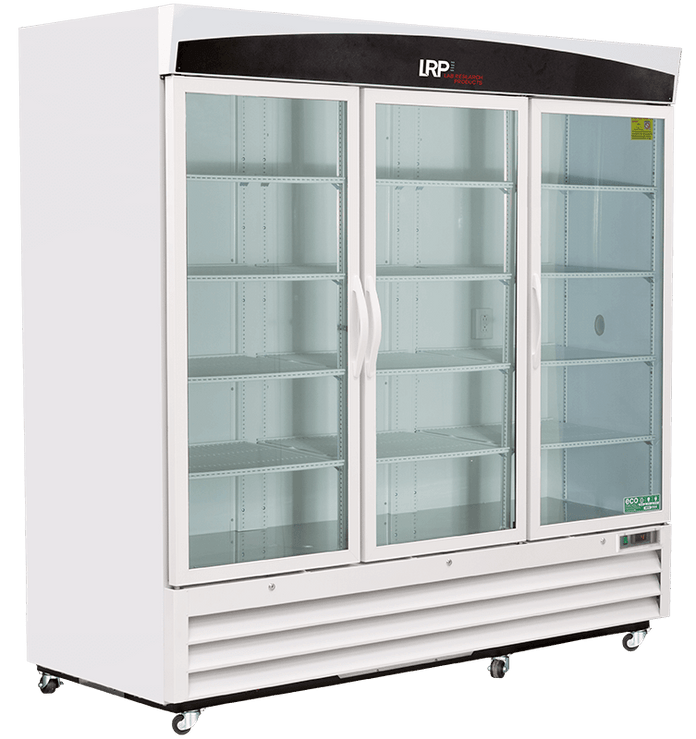

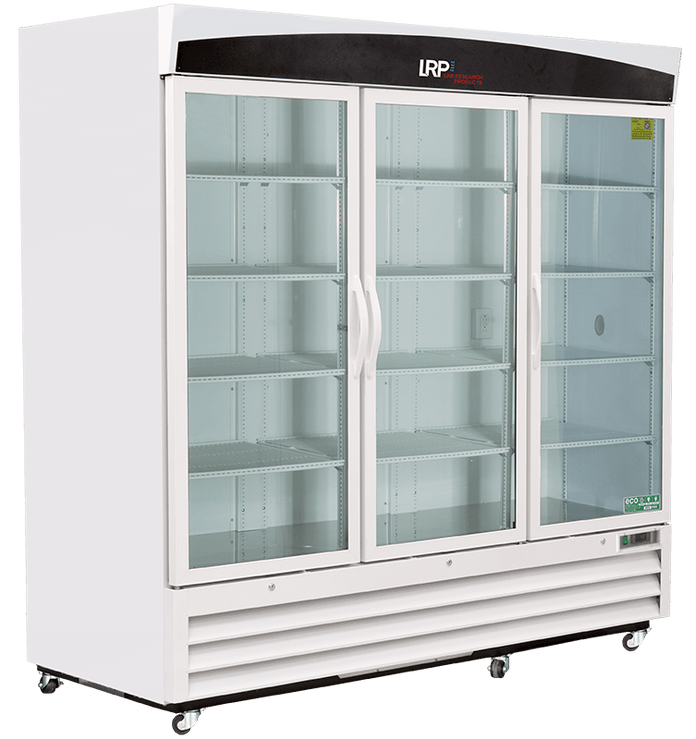

Lab Research Products - LRP-HC-CB-72 - 72 Cu. Ft. Basic Series Glass Door Chromatography Refrigerator

Features
Standard Features Include:
- Interior GFCI protected electrical outlet and one each 2" access port
- One year parts and labor warranty and an additional four year compressor parts warranty
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines
Details
- Three swing glass doors, self-closing (energy efficient, double pane vacuum insulated)
- Twelve adjustable shelves (adjustable in ½" increments)
- Forced draft air circulation
- Keyed door lock
- Magnetic door gasket for positive seal
- Heavy duty door handles
- Swivel Casters (3 ½")
- LED interior lights are safety shielded and switch controlled
- One GFCI protected duplex electrical outlet
- One 2" access port with spring loaded self-closing, gasketed metal cover
- Probe access port (⅜")
- Powder coated steel white interior and exterior
- High density urethane foam cabinet insulation
- Hydrocarbon, natural refrigerant (R290)
- One year parts and labor warranty, plus an additional four year compressor parts warranty
Temp Controller

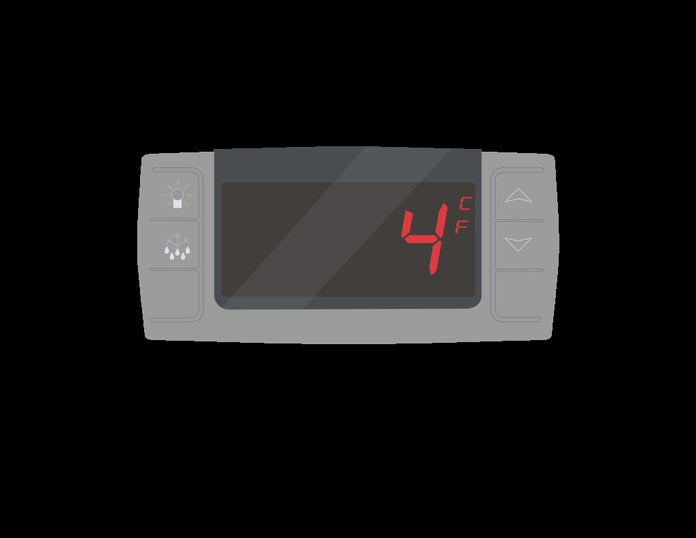

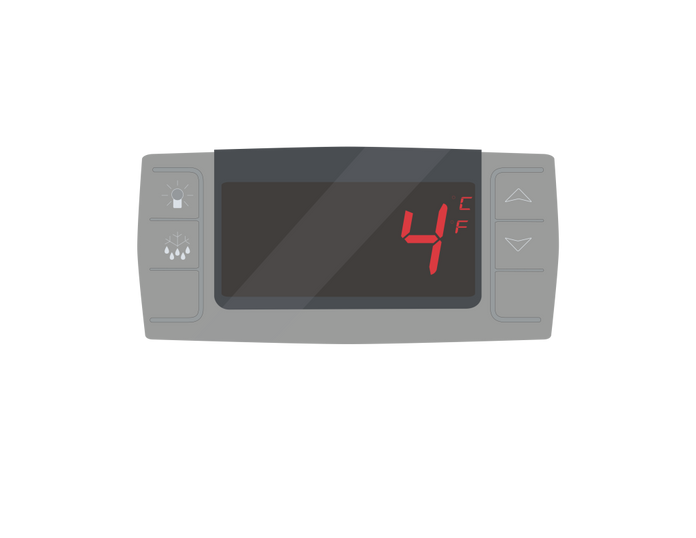

- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- 2 probes; 1 in air and 1 in sample bottle
- Remote alarm contacts
- Adjustable operating temperature: 1°C to 10°C
Specifications
Overview
-
Nominal Height:81.75" (207.65 cm)
-
Nominal Width:34" (86.36 cm)
-
Nominal Length:81.75" (207.65 cm)
-
Internal Height:24.75" (62.87 cm)
-
Internal Width:52.25" (132.72 cm)
-
Internal Length:76" (193.04 cm)
-
Capacity:72
Technical Data
-
Defrost:Cycle
-
Door:3 Glass
-
Int Door:0
-
Shelves:12 Adj.
-
Refrigerant:R290
-
H.P.:1/2
-
Amps:7.5
-
Weight:693 lbs.
Drawings
-
LRP-HC-CB-72 Ext Cut SheetVisit Link
-
LRP-HC-CB-72 Int Cut SheetVisit Link
Useful Links
-
LRP-HC-CB-72 Spec SheetVisit Link
