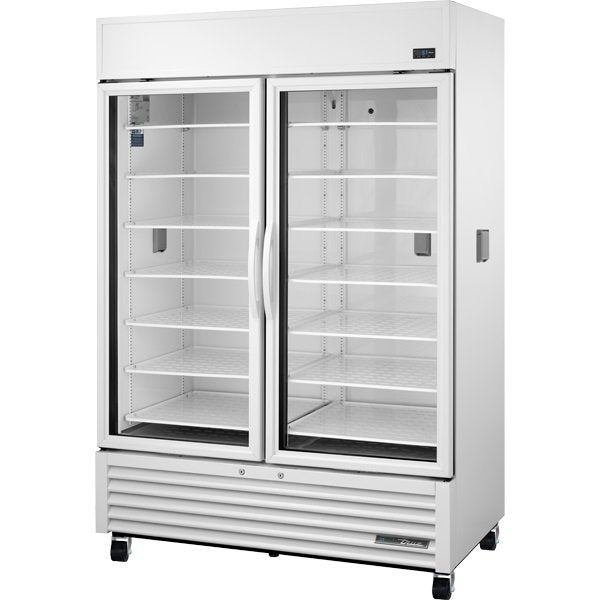

True Scientific - TSCI-1200R-G-PH~TSL01 RX3 2P1D1M NS - 43.9 Cu.Ft. Swing Glass Door Chromatography Refrigerator, 115V

True Scientific - TSCI-1200R-G-PH~TSL01 RX3 2P1D1M NS - 43.9 Cu.Ft. Swing Glass Door Chromatography Refrigerator, 115V
True Scientific - TSCI-1200R-G-PH~TSL01 RX3 2P1D1M NS - 43.9 Cu.Ft. Swing Glass Door Chromatography Refrigerator, 115V
True Scientific - TSCI-1200R-G-PH~TSL01 RX3 2P1D1M NS - 43.9 Cu.Ft. Swing Glass Door Chromatography Refrigerator, 115V
True Scientific - TSCI-1200R-G-PH~TSL01 RX3 2P1D1M NS - 43.9 Cu.Ft. Swing Glass Door Chromatography Refrigerator, 115V
True Scientific - TSCI-1200R-G-PH~TSL01 RX3 2P1D1M NS - 43.9 Cu.Ft. Swing Glass Door Chromatography Refrigerator, 115V

True Scientific - TSCI-1200R-G-PH~TSL01 RX3 2P1D1M NS - 43.9 Cu.Ft. Swing Glass Door Chromatography Refrigerator, 115V

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert

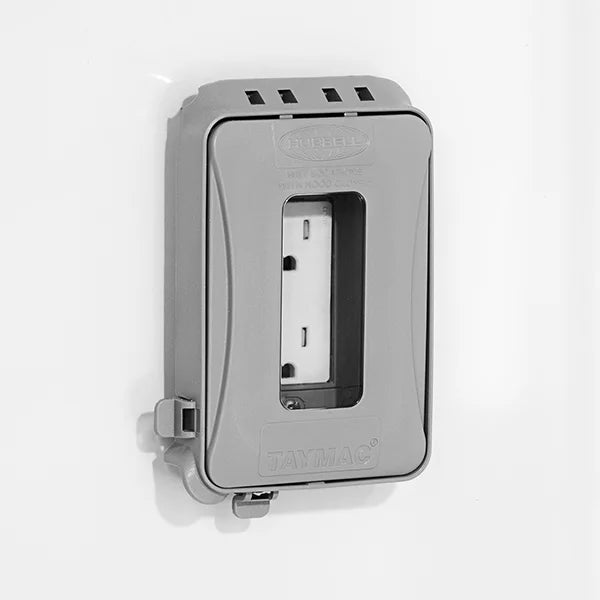

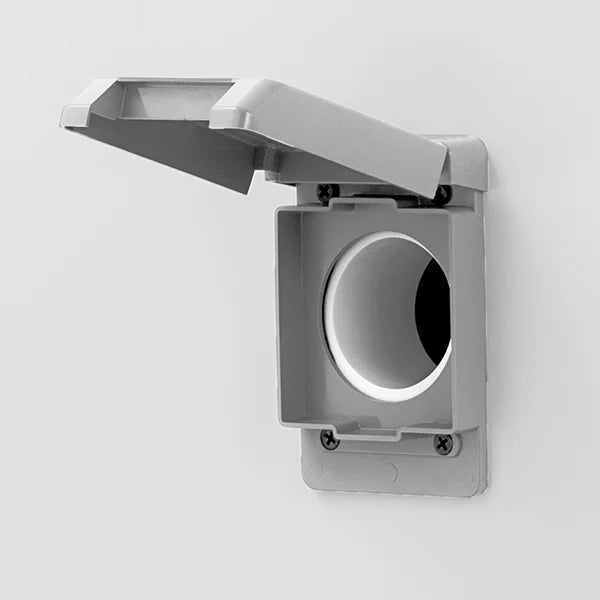

Refrigerator designed for pharmacy/vaccine applications. Unit features 2.5" castors, two 2" diameter access ports, a GFI-protected 12A max duplex outlet, and a chromatography mast.

Features

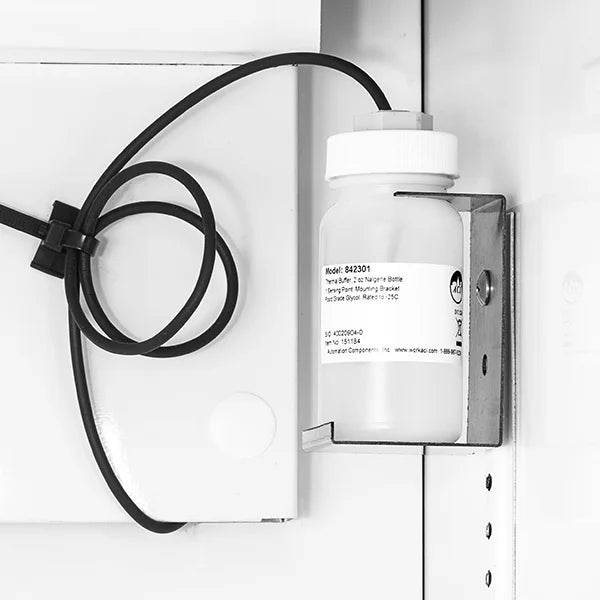

Electronic temperature control with digital display. Temperature measured in a glycol-filled bottle displayed on the control to simulate actual product temperature. Audible and visual high/low temperature alarm. Door ajar alarm. Logs high and low cabinet temperature. Power Failure and Sensor Failure alarm. Control has a battery backup feature. Temperature Probe access port. Uses environmentally friendly R290 hydrocarbon refrigerant. Zero (0) ozone depletion potential (ODP). Zero (0) global warming potential (GWP). Reverse Condensing Fan Motor Technology allows for the reversal of the condensing fan motor, helping to keep the condensing coil clean and reduce energy consumption by as much as 20%.



Watch the video

Specifications

Overview

  • Nominal Height:
    78.5" (199.39 cm)
  • Nominal Width:
    54.125" (137.48 cm)
  • Nominal Length:
    29.75" (75.57 cm)
  • Capacity:
    43.9

Performance Specifications

  • Temperature Range (min - max):
    2°C - 8°C
  • Temperature Set Point:
    5°C
  • Temperature Uniformity:
    0.7°C
  • Temperature Stability:
    0.6°C
  • Energy Star Certified:
    Yes
  • Energy Usage (kWh):
    3.294
  • Daily Rejected Heat (BTU/Hr):
    1000

Dimensions & Construction

  • Number of Doors:
    2
  • Door Type:
    Glass Swing

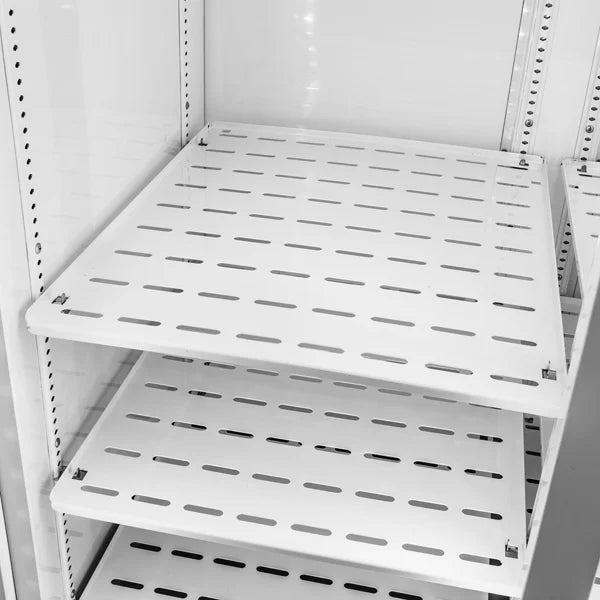

  • Number of Shelves:
    14
  • Probe Port(s):
    1 (0.625")
  • Access Port(s):
    2 (2")
  • Internal Outlet:
    Duplex Outlet 12A Max
  • Castors or Leg Levelers:
    2.5 in. Castors
  • Crated Weight:
    550 lbs. (249.5 kg)
  • Refrigerant:
    R290

Electrical Data

  • Voltage / Frequency:
    115V / 60Hz
  • Amperage:
    2.8A
  • Plug Type:
    NEMA 5-15P
