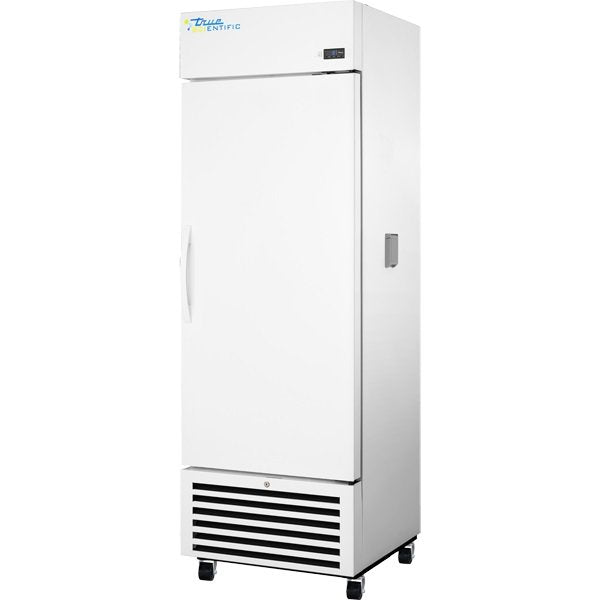

True Scientific 437.8 Liters (15.46 Cu Ft) Chromatography Unit Refrigerator, Swing Solid Door, Right Door Hinge, White Exterior, White Interior, 115 Voltage - Revision A.

Features

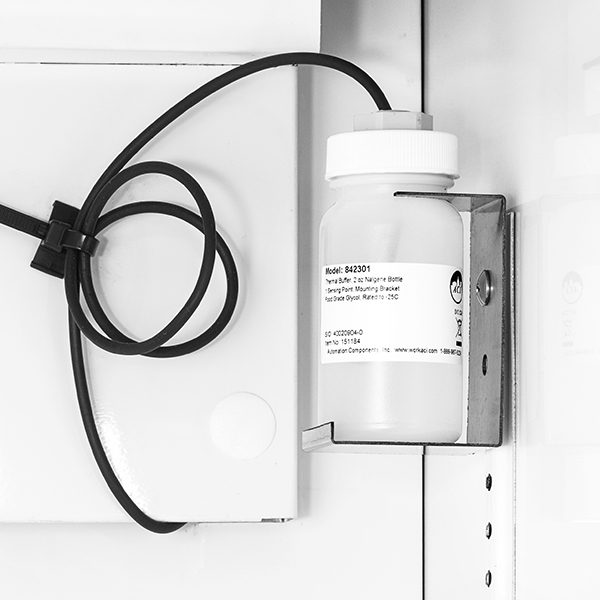

True Scientific series utilizes the most advanced technologies designed specifically for pharmacy, laboratory, and clinical applications. Energy efficient refrigeration system with innovative airfow technology specifically designed to maintain cabinet temperatures between 2°C – 10°C (36°F – 50°F). Self-Cleaning condenser technology eliminates the need for cleaning the condensing coil, reduces energy consumption, and helps maintain the tightest temperatures. Energy-efficient and environmentally friendly R290 hydrocarbon refrigerant. Temperature is measured in a glycol-filled bottle which is displayed on the control to simulate actual product temperature. In the event of a high/low-temperature alarm, door opening, temperature sensor failure or power failure, an alarm will be activated, helping to prevent product loss. Built-in antimicrobial properties to protect the handle. Control has a battery back up feature and is locked at the factory to prevent inadvertent changes to the settings.


Watch the video

Specifications

Overview

  • Nominal Height:
    81.625" (207.33 cm)
  • Nominal Width:
    27" (68.58 cm)
  • Nominal Length:
    24.5" (62.23 cm)
  • Internal Height:
    54.25" (137.8 cm)
  • Internal Width:
    23.5" (59.69 cm)
  • Internal Length:
    19.38" (49.23 cm)
  • Capacity:
    15.46

Performance Specifications

  • Temperature Range (min - max):
    2°C - 10°C
  • Temperature Set Point:
    5°C
  • Temperature Uniformity:
    0.4°C
  • Temperature Stability:
    0.6°C
  • Energy Star Certified:
    Yes
  • NSF 456 Certified:
    Yes
  • Energy Usage (kWh):
    1.74
  • Rejected Heat (BTU/hr):
    576

Dimensions & Construction

  • Number of Doors:
    1
  • Door Type:
    Solid Swing

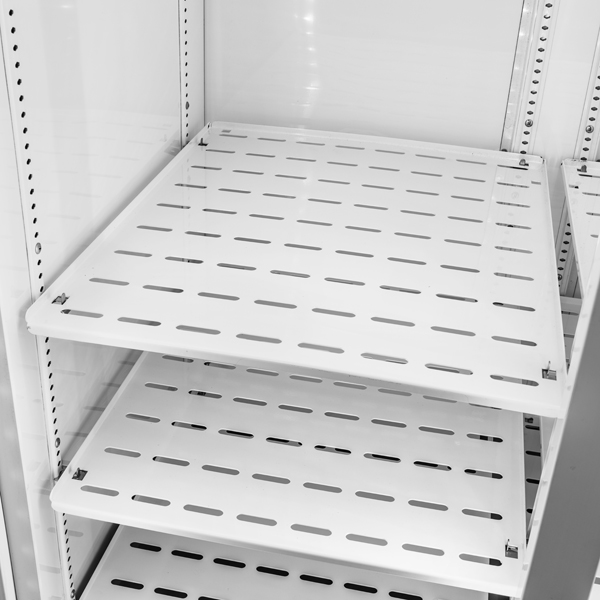

  • Number of Shelves:
    7
  • Shelf Dimensions - Full-Depth Sheet Metal Shelf:
    22.56" W × 16.94" D
  • Shelf Capacity - Full-Depth Sheet Metal Shelf:
    77 lbs.
  • Shelf Dimensions - Half-Depth Wire Shelf:
    22.56" W × 7.69" D
  • Shelf Capacity - Half-Depth Wire Shelf:
    30 lbs.
  • Probe Port(s):
    1 (0.625")

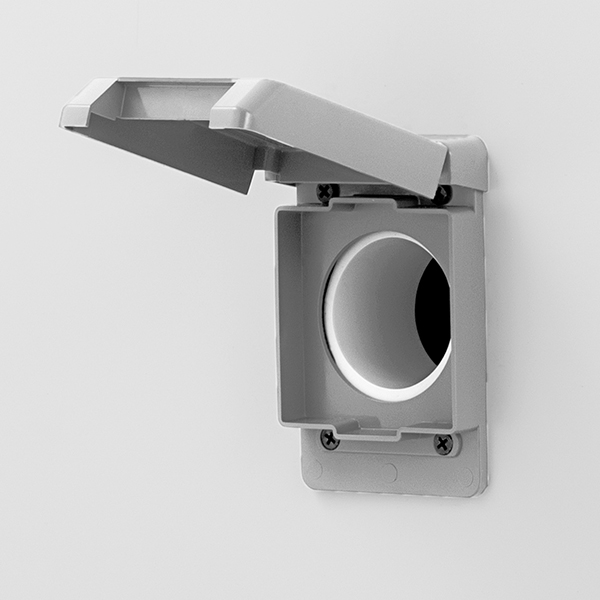

  • Access Port(s):
    2 (2")

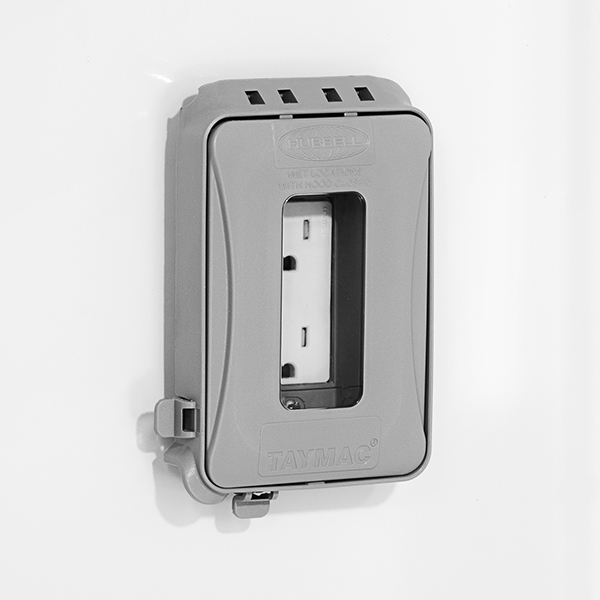

  • Internal Outlet:
    Duplex Outlet 12A Max
  • Castors or Leg Levelers:
    2.5 in. Castors
  • Crated Weight:
    300 lbs. (136 kg)
  • Refrigerant:
    R290

Electrical Data

  • Voltage / Frequency:
    115V / 60Hz
  • Amperage:
    1.8A
  • Plug Type:
    NEMA 5-15P
