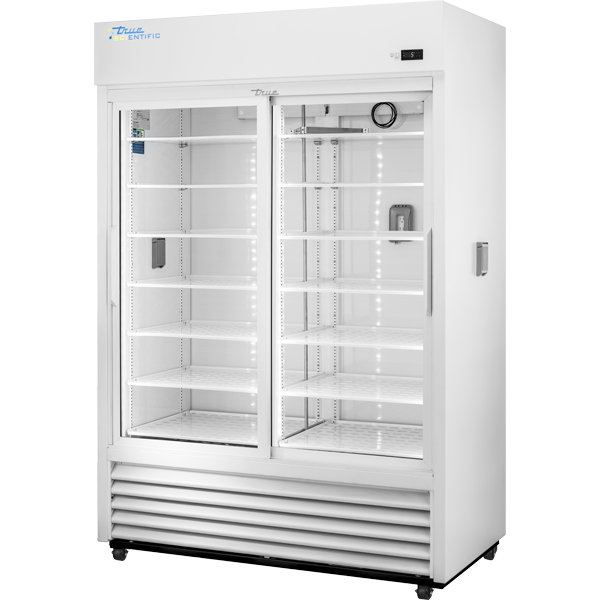

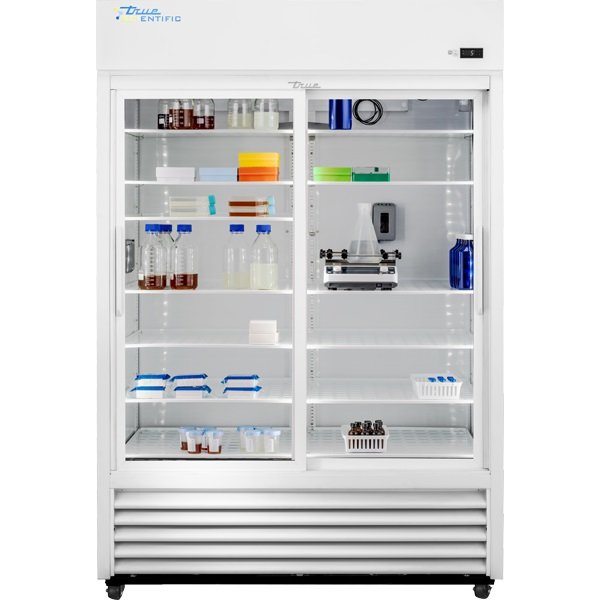

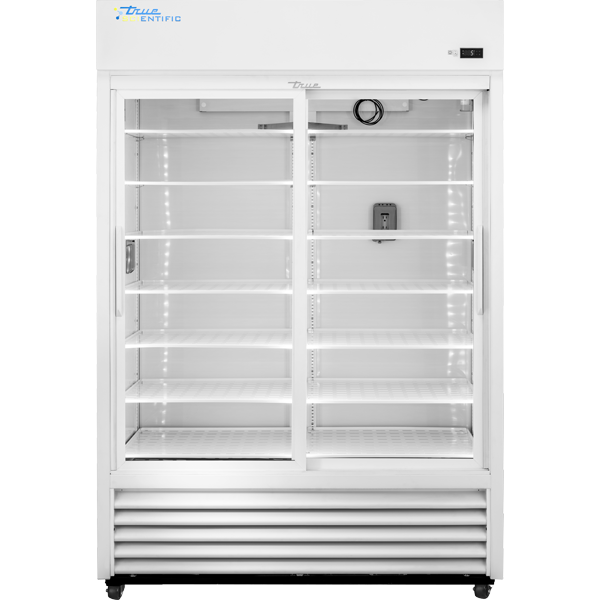

True Scientific 1204 Liters (42.5 Cu Ft) Chromatography Unit Refrigerator Slide Glass, Multi Door, White Exterior, White Interior, 115 Voltage - Revision A.

Features

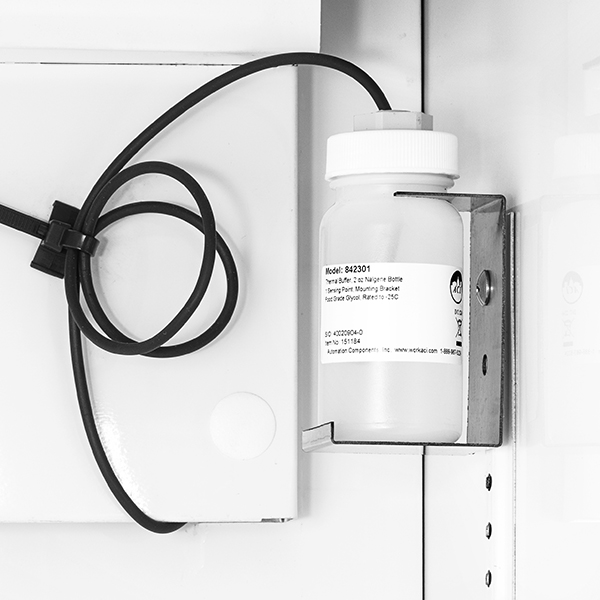

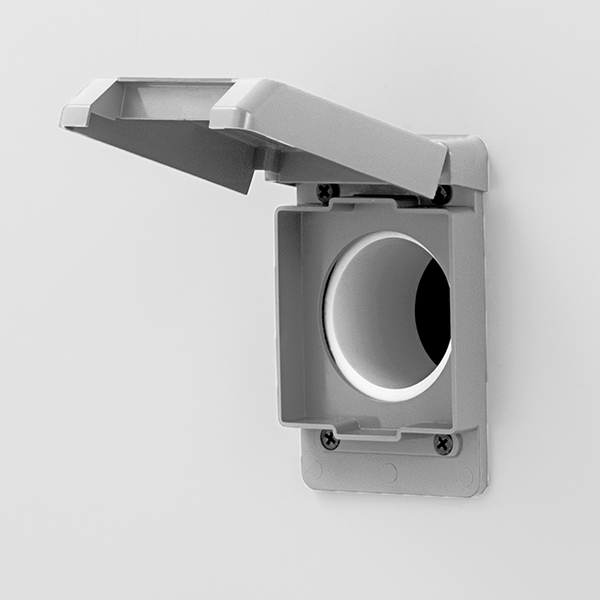

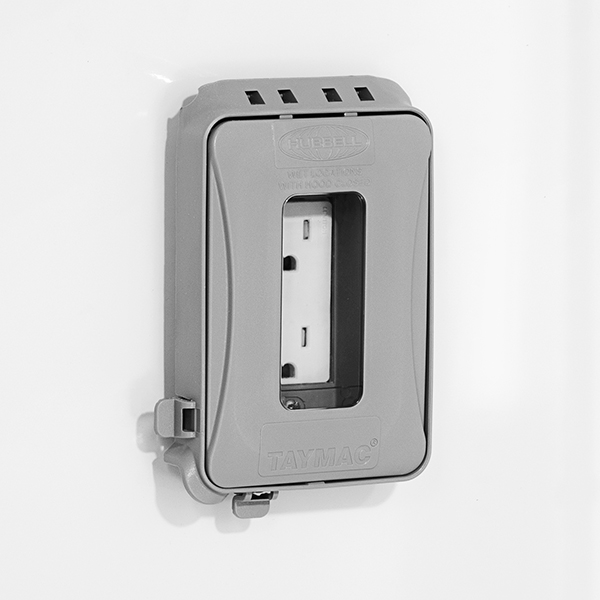

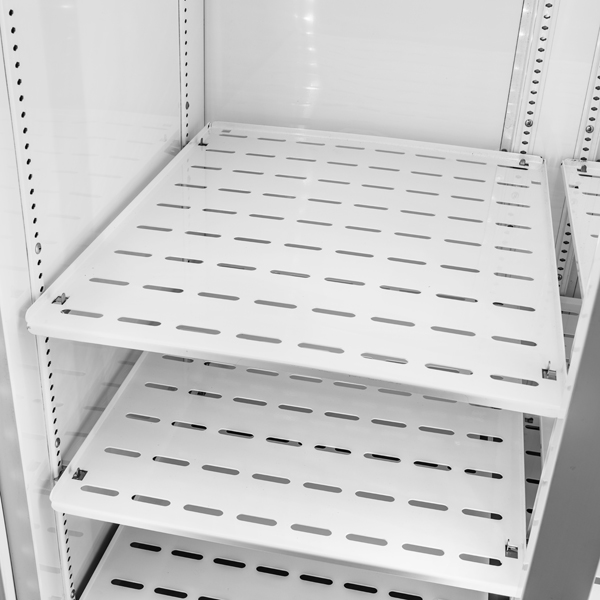

Expertly designed air circulation and refrigeration systems ensure temperature stability and uniformity throughout the cabinet, meeting CDC guidelines and eliminating hot and cold spots that could put your contents at risk. Adjustable perforated and non-peel white coated steel shelves, ideal for storing large containers as well as vials and tubes. True Scientific products use R290, a natural refrigerant that is future-proof and sets sustainability standards while providing increased efficiency and reduced operating cost. Reliability you can count on with best-in-class warranty – 3 year labor, 5 year parts, 7 year compressor warranty. Self-Cleaning condenser technology reduces the need for cleaning the condensing coil, reduces energy consumption, and helps maintain the tightest temperatures. Battery backed-up digital display of current temperature with alarms for high/low temp, power failure, sensor failure and door ajar. Simulated Temperature Monitoring measured in a glycol-filled bottle to simulate actual product temperature. Chromatography models have a temperature probe port in the rear of the unit, 2 inch access ports on either side, and an internal duplex outlet.


Watch the video

Specifications

Overview

  • Nominal Height:
    78.38" (199.09 cm)
  • Nominal Width:
    54.125" (137.48 cm)
  • Nominal Length:
    29.75" (75.57 cm)
  • Internal Height:
    54.25" (137.8 cm)
  • Internal Width:
    50.625" (128.59 cm)
  • Internal Length:
    23.75" (60.33 cm)
  • Capacity:
    42.5

Performance Specifications

  • Temperature Range (min - max):
    2°C - 10°C
  • Temperature Set Point:
    5°C
  • Temperature Uniformity:
    0.7°C
  • Temperature Stability:
    1.7°C
  • Energy Star Certified:
    Yes
  • NSF 456 Certified:
    Yes
  • Energy Usage (kWh):
    3.812
  • Daily Rejected Heat (BTU/Hr):
    1155

Dimensions & Construction

  • Number of Doors:
    2
  • Door Type:
    Glass Slide
  • Number of Shelves:
    14 Full
  • Shelf Dimensions - Full Shelf:
    24.38" W × 21.13" D
  • Shelf Capacity - Full Shelf:
    92 lbs.
  • Probe Port(s):
    1 (0.625")
  • Access Port(s):
    2 (2")
  • Internal Outlet:
    Duplex Outlet 12A Max
  • Castors or Leg Levelers:
    2.5 in. Castors
  • Crated Weight:
    550 lbs. (249 kg)
  • Refrigerant:
    R290

Electrical Data

  • Voltage / Frequency:
    115V / 60Hz
  • Amperage:
    2.8A
  • Plug Type:
    NEMA 5-15P
