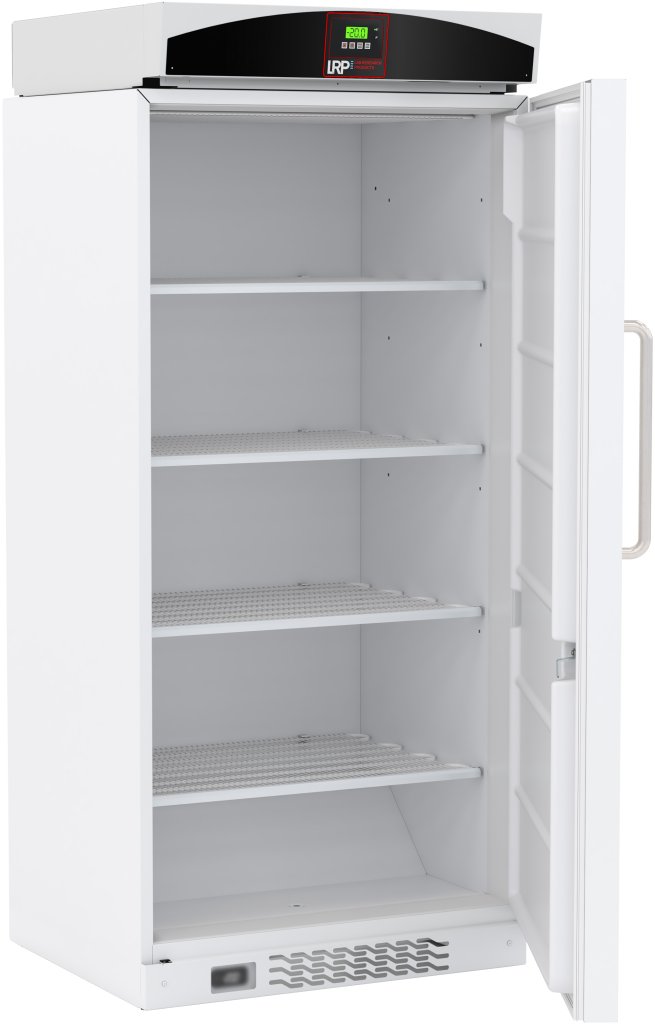

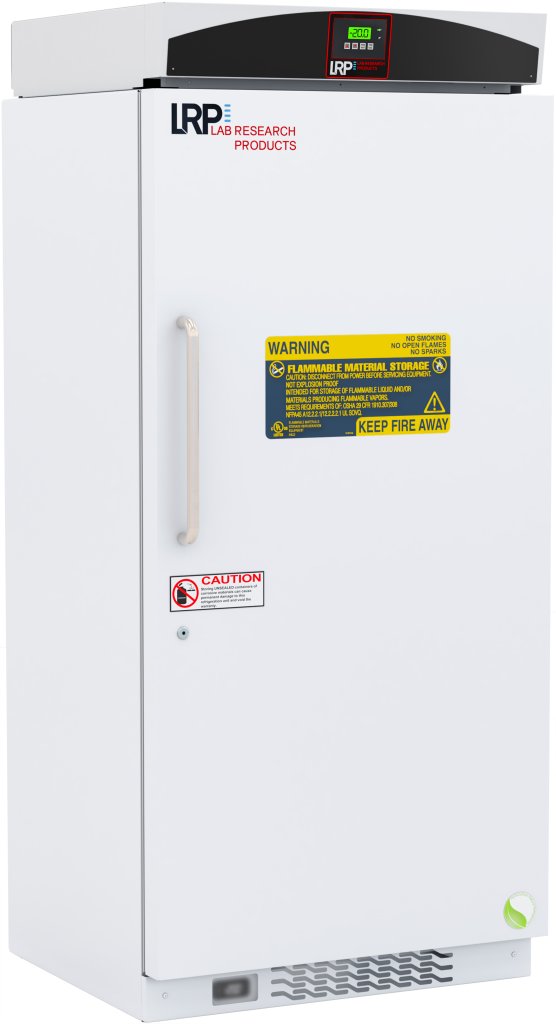

Lab Research Product - LRP-HC-FFP-30 - 30 Cu. Ft. Plus Series Flammable Storage Freezer

Lab Research Product - LRP-HC-FFP-30 - 30 Cu. Ft. Plus Series Flammable Storage Freezer
Lab Research Product - LRP-HC-FFP-30 - 30 Cu. Ft. Plus Series Flammable Storage Freezer

Lab Research Product - LRP-HC-FFP-30 - 30 Cu. Ft. Plus Series Flammable Storage Freezer

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
This Plus Series flammable storage freezer offers a secure solution for storing volatile materials in laboratory and industrial settings.

Features

This model meets NFPA and OSHA guidelines 45 and 70 for the refrigerated storage of flammable (volatile) materials in general laboratory work areas. Featuring variable speed compressor technology, this freezer delivers powerful cooling designed to save energy and enhance system performance. Its temperature control is powered by microprocessor technology, protecting samples down to -25°C. Enjoy a robust alarm system to protect your samples, and benefit from natural hydrocarbon refrigerants that meet EPA SNAP standards for environmental safety. With low energy consumption and high safety standards, this freezer is an ideal solution for laboratories requiring flammable storage protection.

Specifications

Overview

  • Nominal Height:
    72.5" (184.15 cm)
  • Nominal Width:
    35.75" (90.81 cm)
  • Nominal Length:
    35.5" (90.17 cm)
  • Internal Height:
    65" (165.1 cm)
  • Internal Width:
    32" (81.28 cm)
  • Internal Length:
    22.5" (57.15 cm)
  • Capacity:
    30

General Description and Application

  • Door:
    One (1) solid swing, right hinged, stainless steel door handle, magnetic door gasket
  • Shelves:
    Four (4) fixed evaporator shelves
  • Mounting and Installation:
    Leveling legs
  • External Probe Access:
    3/4" probe access port on rear wall
  • Insulation:
    EPA compliant high density urethane foam
  • Exterior Materials:
    Powder coated steel
  • Access Control:
    Keyed door lock
  • General Warranty:
    Two (2) year parts and labor warranty
  • Compressor Warranty:
    Five (5) year compressor parts warranty
  • Product Weight (lbs):
    300
  • Shipping Weight (lbs):
    330
  • Rated Amperage:
    3.3 Amps
  • Power Plug/Power Cord:
    NEMA 5-15P plug, 6 ft long cord
  • Facility Electrical Requirement:
    110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
  • Agency Listing and Certification:
    UL listed per UL 60335-1 and UL 60335-2-89 standards, c UL listed per CSA C22.2 No. 120 standard, in compliance with the requirements for Flammable Materials Storage Refrigerators as defined by NFPA 99 and 45

Performance

  • Uniformity (Cabinet Air):
    +/- 3°C
  • Stability (Cabinet Air):
    +/- 3°C
  • Maximum Temperature Variation (Cabinet Air):
    7°C Total
  • Energy Consumption (kWh/day):
    5.2 kWh/day
  • Average Heat Rejection (BTU/hr):
    740 BTU/hr
  • Pull Down Time to Nominal Operating Temp:
    65 min (empty)

Refrigeration System

  • Compressor:
    Hermetic, variable speed
  • Refrigerant:
    EPA SNAP compliant R290 propane
  • Condenser:
    Static - exterior walls of cabinet with auxiliary fan
  • Evaporator:
    Evaporator shelves
  • Defrost:
    Manual defrost
