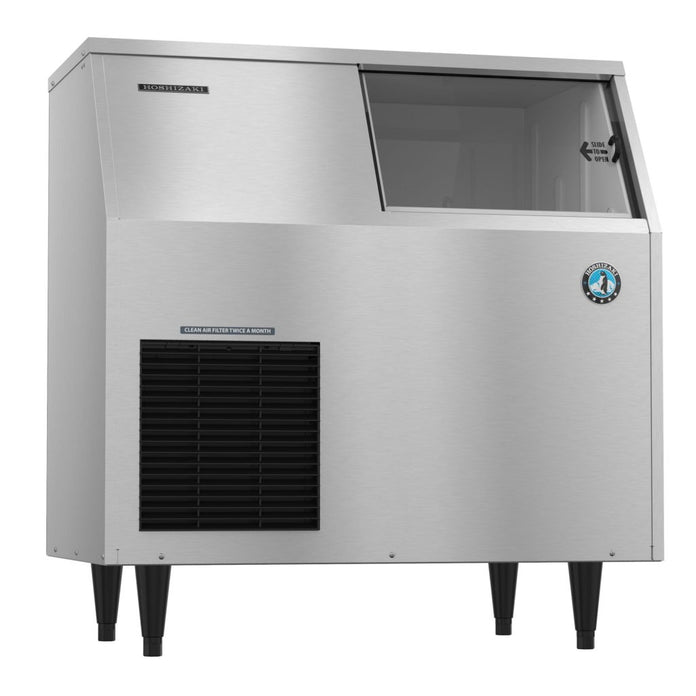

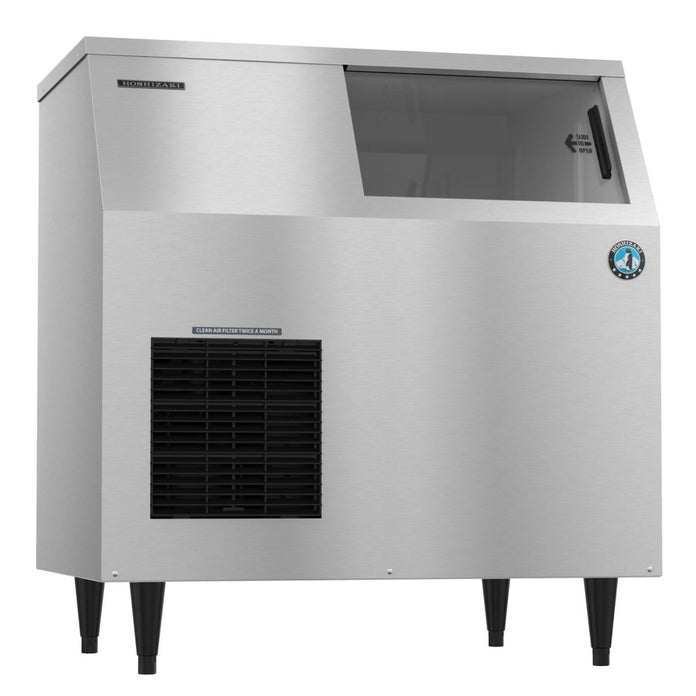

Hoshizaki - F-BAJ - Flaker Icemaker, Air-Cooled, Built in Storage Bin

Hoshizaki - F-BAJ - Flaker Icemaker, Air-Cooled, Built in Storage Bin
Hoshizaki - F-BAJ - Flaker Icemaker, Air-Cooled, Built in Storage Bin

Hoshizaki - F-BAJ - Flaker Icemaker, Air-Cooled, Built in Storage Bin

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Produces flaked ice Durable stainless steel exterior Front in, front out airflow Gear motor protected from overload Automatic system flush when bin control is activated Designed for long life dependability.

Product Range

SKU Name
F-500BAJ Hoshizaki - F-500BAJ - Flaker Icemaker, Air-Cooled, Built in Storage Bin
F-330BAJ Hoshizaki - F-330BAJ - Flaker Icemaker, Air-Cooled, Built in Storage Bin
F-300BAJ Hoshizaki - F-300BAJ - Flaker Icemaker, Air-Cooled, Built in Storage Bin

Features

The F-500BAJ is capable of producing approximately 536 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. It features an Automatic system flush when bin control is activated plus a greaseless bearing auger construction making it simple to maintain. The F-BAJ requires a Single phase, 115v/60/1. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.



  • Durable stainless steel exterior
  • Advanced CleanCycle24TM design
  • Stainless steel auger with greaseless bearing



Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Self Contained, Built in Storage Bin icemaker.



  • Produces flaked ice
  • Durable stainless steel exterior
  • Front in, front out airflow
  • Clean ice and easy maintenance lead to longer unit life span

Specifications

Overview

Technical Data

  • Ambient temperature range:
    45 – 100°F
  • Water temperature range:
    45 – 90°F
  • Water pressure:
    10 – 113psig
  • Voltage range :
    104 – 127V
  • Weight:
    265 lbs
  • Warranty:
    Three Years
  • Electrical Specs:
    Single phase, 115v/60/1, 3 wire, including ground.
  • Electrical Specs-Amperage:
    13.8, Max Fuse (Must be hardwired at site, no cord/plug included)
  • Electrical Specs-HACR Breaker:
    20 A (Must be hardwired at site, no cord/plug included)
  • Electrical Specs-kWh Usedper 100 lbs. 90°/ 70°F:
    5.05
  • Plumbing Specs:
    1/2" FPT Inlet
  • Plumbing Specs- Icemaker Water Supply Line:
    Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent,
  • Plumbing Specs- Icemaker Drain Line:
    3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
  • Utility Consumption:
    5.05 kWh per 100 lbs @ 90/70
  • Utility Consumption:
    12 gal of Potable Water per 100 lbs @ 90/70
  • Operating Limits-Ambient Temp Range:
    45 - 100°F
  • Operating Limits-Water Temp Range:
    45 - 90°F
  • Operating Limits- Water Pressure:
    10 - 113psig
  • Operating Limits-Voltage Range:
    104 - 127V
  • Operating Limits-Heat Rejection:
    2500 BTU/hr
  • Operating Limits-Refrigerant Charge:
    R-404A, (1 lbs. 0.6 oz. / 470 g)
  • Five Years:
    Parts warranty on Compressor, air-cooled condenser coil.
  • Flaked Dimensions:
    1”
  • Three Years:
    Parts & Labor warranty on entire machine
  • Five Years:
    Parts warranty on Compressor, air-cooled condenser coil
