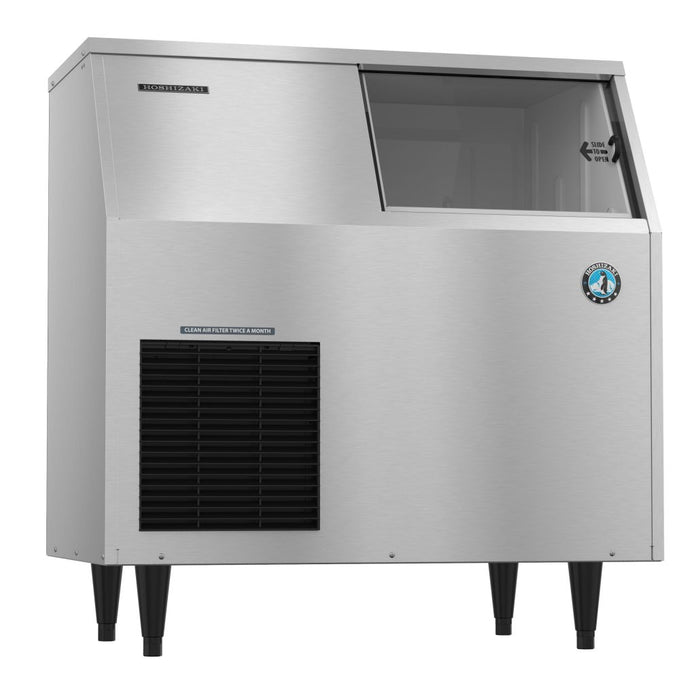

Hoshizaki - F-300BAJ - Flaker Icemaker, Air-Cooled, Built in Storage Bin

Hoshizaki - F-300BAJ - Flaker Icemaker, Air-Cooled, Built in Storage Bin

Hoshizaki - F-300BAJ - Flaker Icemaker, Air-Cooled, Built in Storage Bin

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert

The F-300BAJ is capable of producing approximately 353 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Self Contained, Built in Storage Bin icemaker stores up to 100 lbs of ice*.

Features

It features an Automatic system flush when bin control is activated plus a greaseless bearing auger construction making it simple to maintain. The F-300BAJ requires a Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.



  • Up to 353 lbs of ice produced per 24 hours
  • Up to 100 lbs of built-in storage capacity (3.7ft3)
  • Produces flaked ice
  • Durable stainless steel exterior
  • Front in, front out airflow
  • Gear motor protected from overload
  • Automatic system flush when bin control is activated
  • Designed for long life dependability
  • R-404A refrigerant (9.2 oz. / 260 g)
  • Heat Rejection:2300 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 7.8 amps (15 Amp Max fuse)
  • 6.14 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.

Specifications

Overview

  • Nominal Height:
    39.25" (99.7 cm)
  • Nominal Width:
    36" (91.44 cm)
  • Nominal Length:
    24.25" (61.6 cm)

Technical Data

  • Electrical Specs:
    Single phase, 115v/60/1 8 ft cord with NEMA 5-15 Plug
  • Amperage:
    7.8
  • Max Fuse/HACR Breaker:
    15 A
  • Ambient Temp Range:
    45 – 100°F
  • Water Temp Range:
    45 – 90°F
  • Water Pressure:
    10 – 113psig
  • Voltage Range:
    104 – 127V
  • Heat Rejection:
    2300 BTU/hr
  • Refrigerant Charge:
    R-404A, (9.2 oz. / 260 g)
  • Plumbing Specs:
    1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
  • Shipping Weight:
    200
  • Utility Consumption:
    6.14 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
