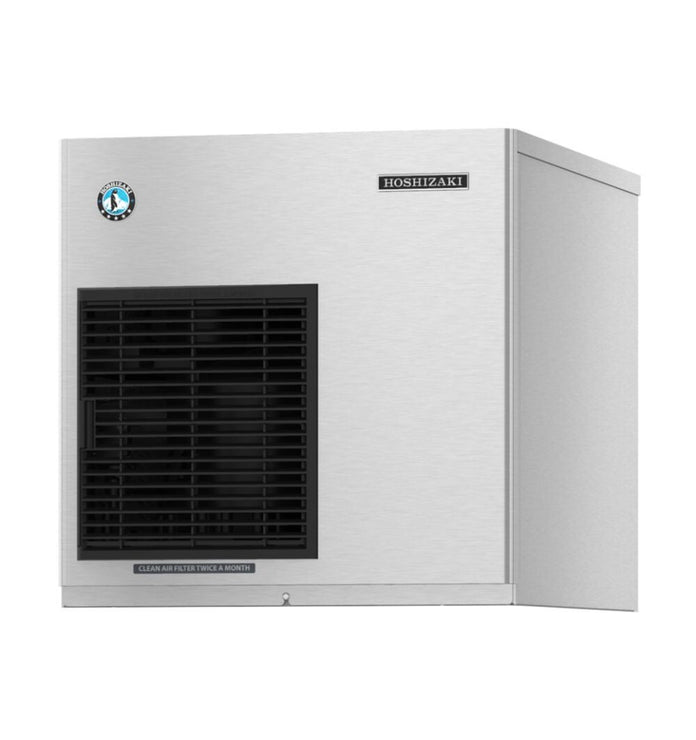

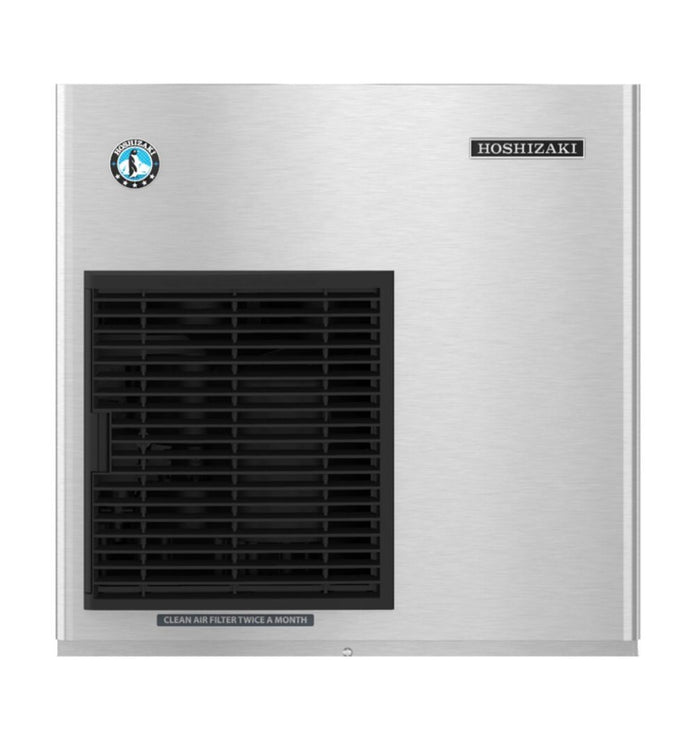

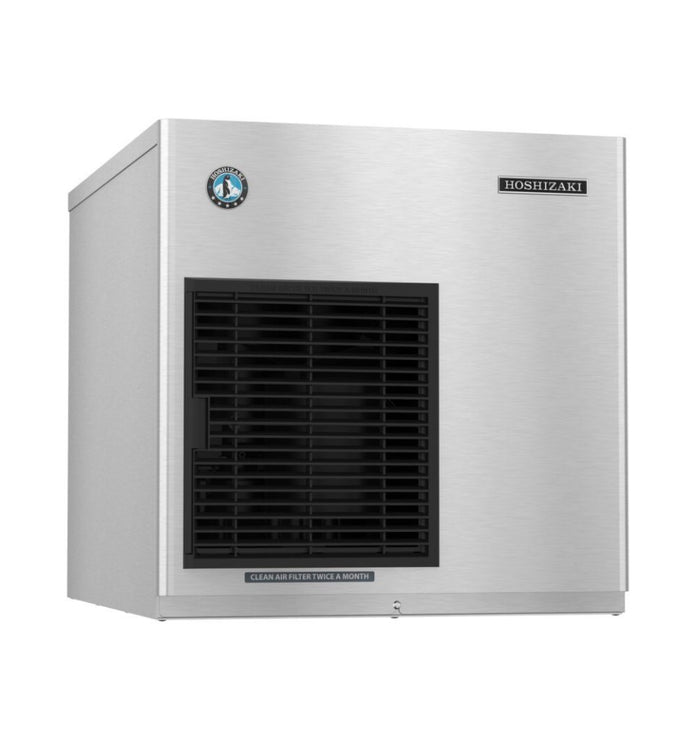

The F-422MAK produces up to 485 lbs. of flaked ice per day, perfect for salad bars, seafood displays, and other applications requiring long-lasting, sanitary ice. This air-cooled, Slim Line modular ice machine features Advanced CleanCycle24™ for automatic hourly cleaning and a greaseless bearing auger for easy maintenance, and ultrasonic bin control for consistent ice levels.

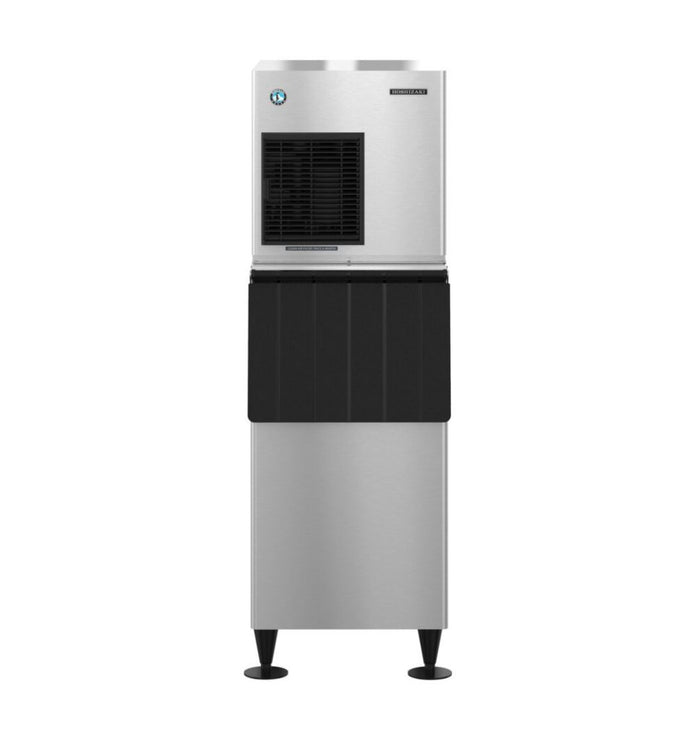

Compatible bins: B-250SF, B-300SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS, B-1500SS, B-1650SS; sold separately.

Electrical Specs

Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 8.8, Max Fuse/HACR Breaker: 15A

Operating Limits

Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 108 – 127V, Heat Rejection: 3400 BTU/hr, Refrigerant Charge: R290 (2.8 oz.)

Plumbing Specs

1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent

Shipping Weight

175 lbs.

Utility Consumption

4.9 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70

Warranty

Three Years: Parts & Labor warranty on entire machine; Five Years: Parts warranty on Compressor, air-cooled condenser coil
