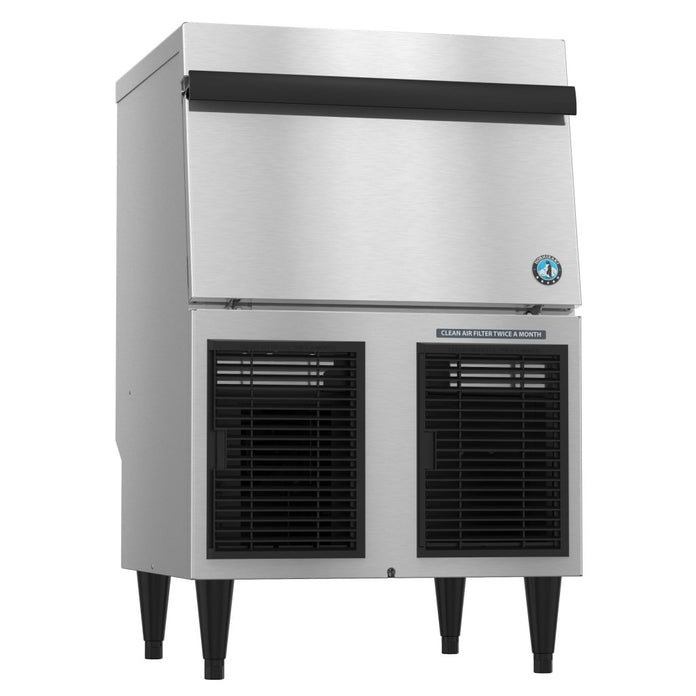

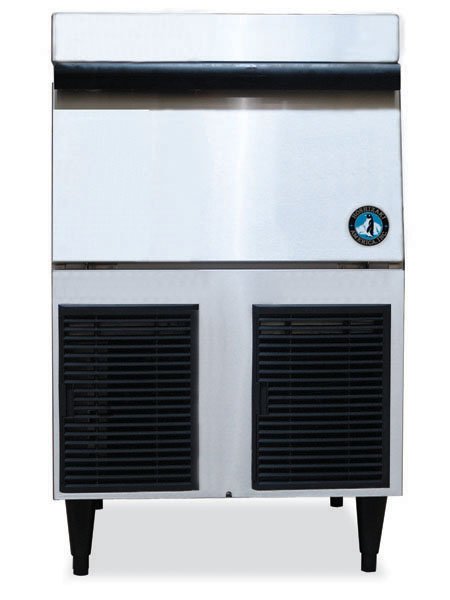

The F-330BAJ is capable of producing approximately 332 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Self Contained, Built in Storage Bin icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-330BAJ requires a Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug electrical connection that is hard-wired at the installation site. Front in, front out airflow. Please consult the Specification Sheet for additional details.

• F-330BAJ - Up to 332 lbs. of ice production per 24 hrs.
• Front breathing allows for easier fit into tight spaces
• Durable stainless steel exterior
• Stainless steel auger with greaseless
• Built-in storage capacity of 2.7ft3/80 lbs.
• Advanced CleanCycle24TM design 2 second flush cycle every hour
• Convenient drop down door
• Front access for easier maintenance
• Removable air filters
• Equipped with 8 ft. cord with NEMA 5-15P Plug
• R-404A Refrigerant bearing

Electrical Specs

Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 13.8, Max Fuse/HACR Breaker: 20 A

Operating Limits

Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 2500 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 0.6 oz. / 470

Plumbing Specs

1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent

Utility Consumption

5.05 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70

Warranty

Three Years: Parts & Labor warranty on entire machine.
