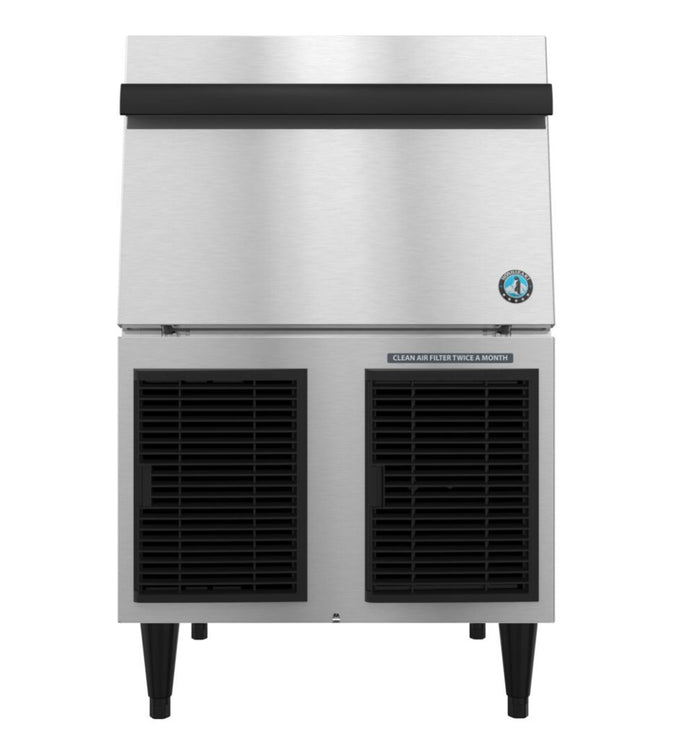

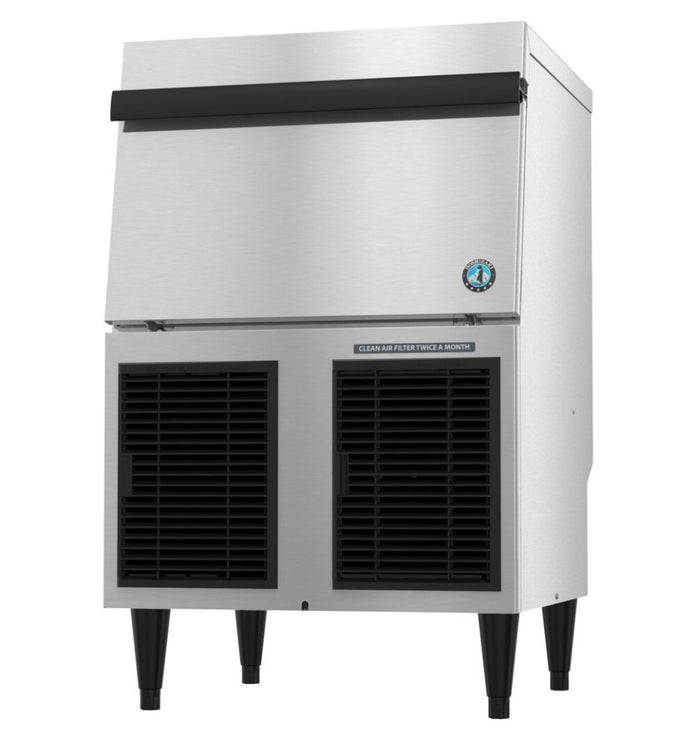

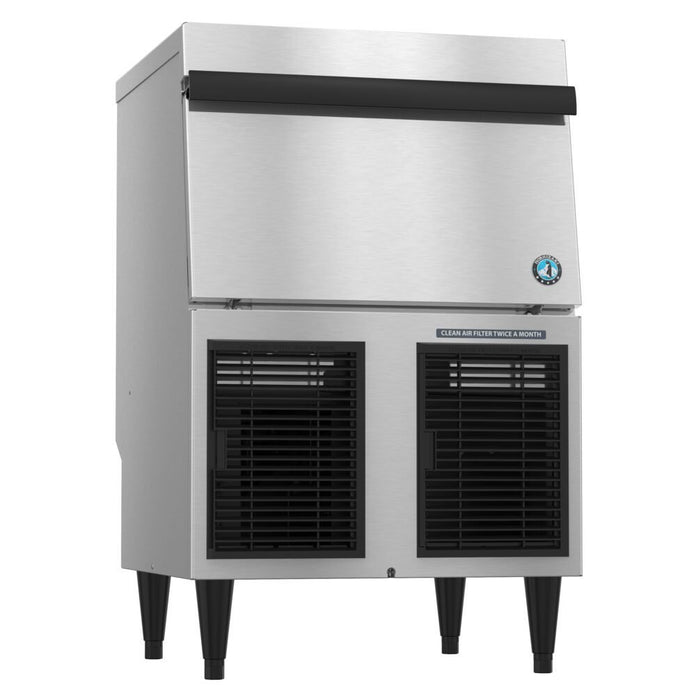

The F-330BAK produces up to 331 lbs. of flaked ice per day, perfect for salad bars, seafood displays, and other applications requiring long-lasting, sanitary ice. This air-cooled, self-contained unit features a built-in storage bin that stores up to 80 lbs. of ice at a time*, Advanced CleanCycle24™ for automatic hourly cleaning, and a greaseless bearing auger for easy maintenance. With front-in, front-out airflow, it’s designed for efficient placement in a variety of operations.

*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb./ft³ average ice density.

Electrical Specs

Single phase, 115v/60/1 8 ft cord with NEMA 5-15 Plug, Amperage: 6.3, Max Fuse/HACR Breaker: 15A

Operating Limits

Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 3400 BTU/hr, Refrigerant Charge: R290 (2.8 oz.)

Plumbing Specs

1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent

Shipping Weight

178 lbs.

Utility Consumption

4.29 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70

Warranty

Three Years: Parts & Labor warranty on entire machine; Five Years: Parts warranty on Compressor, air-cooled condenser coil
