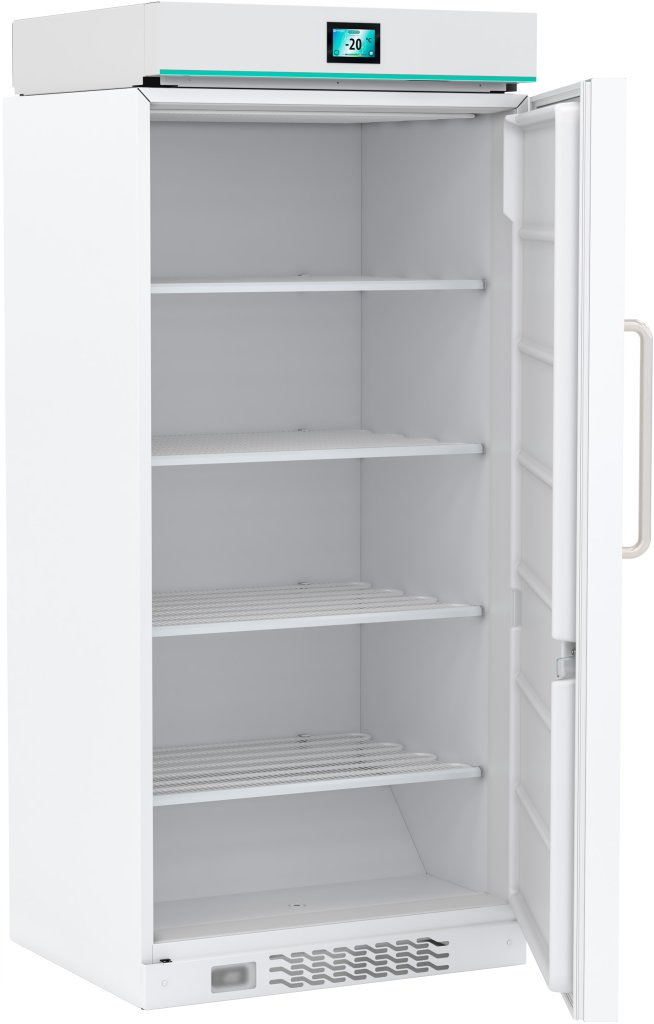

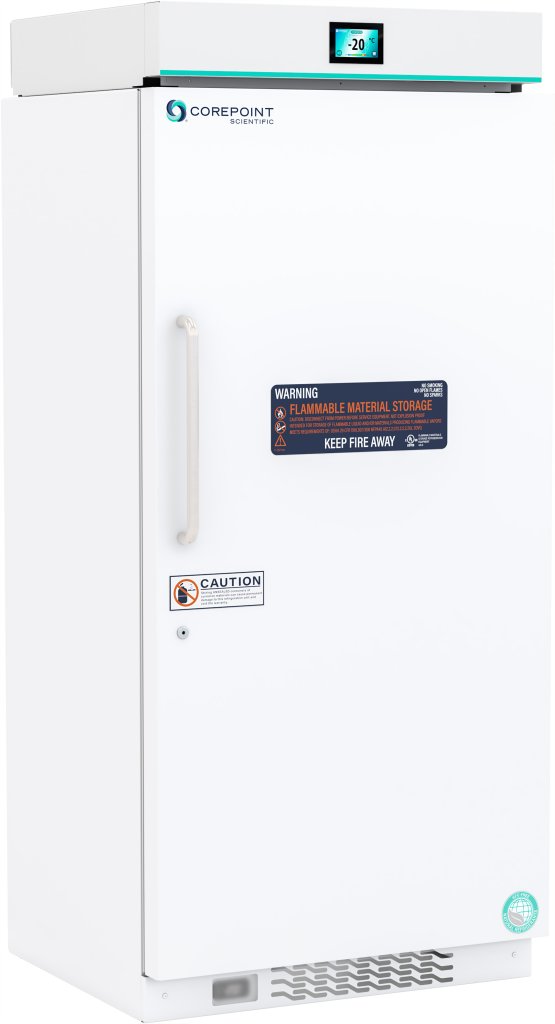

Corepoint Scientific - CPS-HC-FFP-30-TS - 30 Cu. Ft. Touchscreen Flammable Storage Freezer with Natural Refrigerants

Corepoint Scientific - CPS-HC-FFP-30-TS - 30 Cu. Ft. Touchscreen Flammable Storage Freezer with Natural Refrigerants
Corepoint Scientific - CPS-HC-FFP-30-TS - 30 Cu. Ft. Touchscreen Flammable Storage Freezer with Natural Refrigerants

Corepoint Scientific - CPS-HC-FFP-30-TS - 30 Cu. Ft. Touchscreen Flammable Storage Freezer with Natural Refrigerants

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
This premier touchscreen flammable storage freezer redefines precision and user experience for critical sample storage.

Features

This model meets NFPA and OSHA guidelines 45 and 70 for the refrigerated storage of flammable (volatile) materials in general laboratory work areas. These models offer exceptional temperature uniformity and extensive data logging and charting capabilities for auditing and compliance. Access a 24-hour temperature chart and data logging capabilities through an intuitive touchscreen interface. Experience an extensive array of customizable audible and visual alarms supported by battery backup and remote alarm contacts. These units utilize microprocessor temperature technology, protecting samples down to -25°C. They also feature natural hydrocarbon refrigerants for EPA SNAP compliance and eco-friendly cooling. This freezer provides an energy-efficient and high-performance solution for any laboratory needing flammable storage protection and data logging capabilities.

Specifications

Overview

  • Nominal Height:
    72.5" (184.15 cm)
  • Nominal Width:
    35.75" (90.81 cm)
  • Nominal Length:
    35.5" (90.17 cm)
  • Internal Height:
    61.75" (156.85 cm)
  • Internal Width:
    32" (81.28 cm)
  • Internal Length:
    22.5" (57.15 cm)
  • Capacity:
    30

General Description and Application

  • Door:
    One (1) solid swing, right hinged, stainless steel door handle, magnetic door gasket
  • Shelves:
    Four (4) fixed evaporator shelves
  • Mounting and Installation:
    Leveling legs
  • External Probe Access:
    3/4" Probe access port on rear wall
  • Insulation:
    EPA Compliant high density urethane foam
  • Exterior Materials:
    Powder coated steel
  • Access Control:
    Keyed door lock
  • General Warranty:
    Two (2) year parts and labor warranty
  • Compressor Warranty:
    Five (5) year compressor parts warranty
  • Product Weight (lbs):
    300
  • Shipping Weight (lbs):
    330
  • Rated Amperage:
    3.3 Amps
  • Power Plug/Power Cord:
    NEMA 5-15P plug, 6 ft long cord
  • Facility Electrical Requirement:
    110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
  • Agency Listing and Certification:
    UL listed per UL 60335-1 and UL 60335-2-89 standards, c UL listed per CSA C22.2 No. 120 standard, in compliance with the requirements for Flammable Materials Storage
  • Refrigerators as defined by NFPA 99 and 45:
  • :
  • :
  • :

Performance

  • Uniformity (Cabinet Air):
    +/- 3°C
  • Stability (Cabinet Air):
    +/- 3°C
  • Maximum Temperature Variation (Cabinet Air):
    7°C Total
  • Energy Consumption (kWh/day):
    5.2 kWh/day
  • Average Heat Rejection (BTU/hr):
    740 BTU/hr
  • Pull Down Time to Nominal Operating Temp:
    65 min (empty)

Refrigeration System

  • Compressor:
    Hermetic, variable speed
  • Refrigerant:
    EPA SNAP compliant R290 propane
  • Condenser:
    Static - exterior walls of cabinet with auxiliary fan
  • Evaporator:
    Evaporator shelves
  • Defrost:
    Manual defrost
