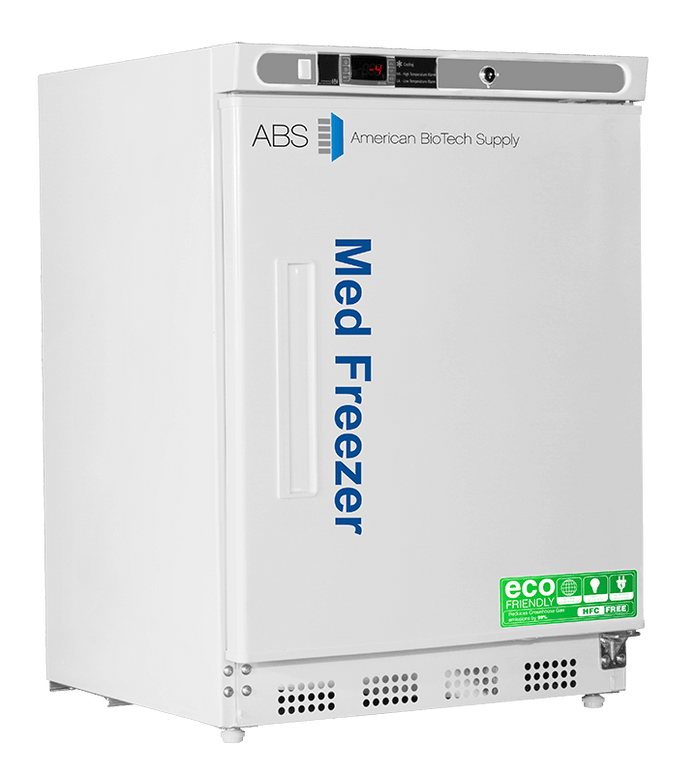

American Biotech Supply - PH-ABT-HC-UCBI-0420 - 4.2 Cu. Ft. Premier Pharmacy/Vaccine Undercounter Freezer Built-In

Product Range
| SKU | Name |
|---|---|
| PH-ABT-HC-UCBI-0420SS | American Biotech Supply - PH-ABT-HC-UCBI-0420SS - 4.2 Cu. Ft. Capacity Premier Pharmacy/Vaccine Undercounter Freezer Built-In |
| PH-ABT-HC-UCBI-0420SS-LH | American Biotech Supply - PH-ABT-HC-UCBI-0420SS-LH - 4.2 Cu. Ft. Pharmacy Undercounter Built-In Freezer, Left Hinged - Stainless Steel |
| PH-ABT-HC-UCBI-0420-LH | American Biotech Supply - PH-ABT-HC-UCBI-0420-LH - 4.2 Cu. Ft. Premier Pharmacy/Vaccine Undercounter Freezer Built-In, Left Hinged |
| PH-ABT-HC-UCBI-0420A | American Biotech Supply - PH-ABT-HC-UCBI-0420A - 4.2 Cu. Ft. Capacity Premier Pharmacy/Vaccine Undercounter Auto Defrost Freezer Built-In |
| PH-ABT-HC-UCBI-0420-ADA-LH | American Biotech Supply - PH-ABT-HC-UCBI-0420-ADA-LH - 4.2 Cu. Ft. Premier Pharmacy/Vaccine Undercounter Freezer Built-In, Left Hinged |
| PH-ABT-HC-UCBI-0420A-LH | American Biotech Supply - PH-ABT-HC-UCBI-0420A-LH - 4.2 Cu. Ft. Premier Pharmacy/Vaccine Undercounter Auto Defrost Freezer Built-In, Left Hinged |
Features
Periodic defrosting is required.
The Built-In models are designed with a "front breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C to 8°C) in the refrigerator and -58°F to 5°F (or -50°C to -15°C) in the freezer.
Details
- Two fixed shelves
- Vaccine storage power cord warning label
- Keyed door lock
- Recessed door handle
- Magnetic door gasket for positive seal
- Leveling legs
- HFC-free refrigerant (R600a), foam insulation and packaging
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Two-year parts and labor warranty, plus an additional three-year compressor parts-only warranty
- Pyxis®, Omnicell® and AcuDose RX® compatible
Temp Controller

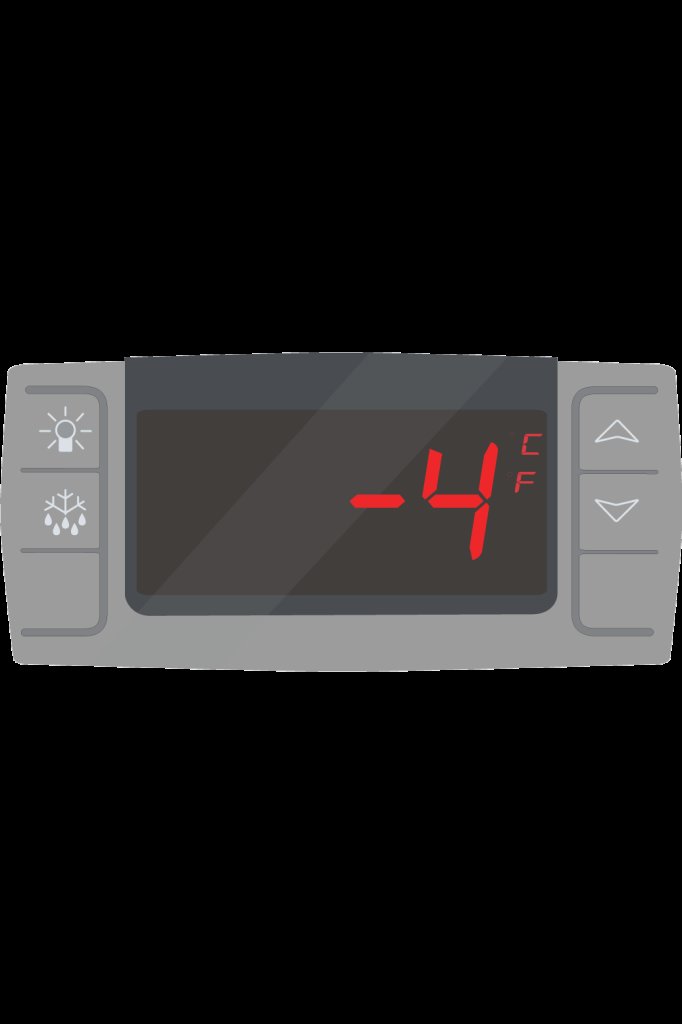

- Microprocessor temperature controller
- Digital temperature display and Alarm Module with battery back-up to support temperature monitoring and alarms
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- 2 probes; 1 in air and 1 in glycol bottle
- Adjustable operating temperature range: 5°F to -13°F (-15°C to -25°C)
- Calibrated using a NIST traceable device, certificate included
Specifications
Overview
-
Nominal Height:33.38" (84.79 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:24.5" (62.23 cm)
-
Internal Height:24.5" (62.23 cm)
-
Internal Width:19" (48.26 cm)
-
Internal Length:17.25" (43.82 cm)
-
Capacity:4.2
Technical Data
-
Defrost:Manual
-
Door:1 Solid
-
Int Door:0
-
Shelves:2 Fixed
-
Refrigerant:R600a
-
H.P.:0.125
-
Amps:1.5
-
Weight:100 lbs.
-
Shipping Weight:132 lbs.
Drawings
-
PH-ABT-HC-UCBI-0420 Ext CutsheetVisit Link
-
PH-ABT-HC-UCBI-0420 Int CutsheetVisit Link
Useful Links
-
PH-ABT-HC-UCBI-0420 SpecSheetVisit Link
-
ABS Natural Refrigerants FlyerVisit Link
