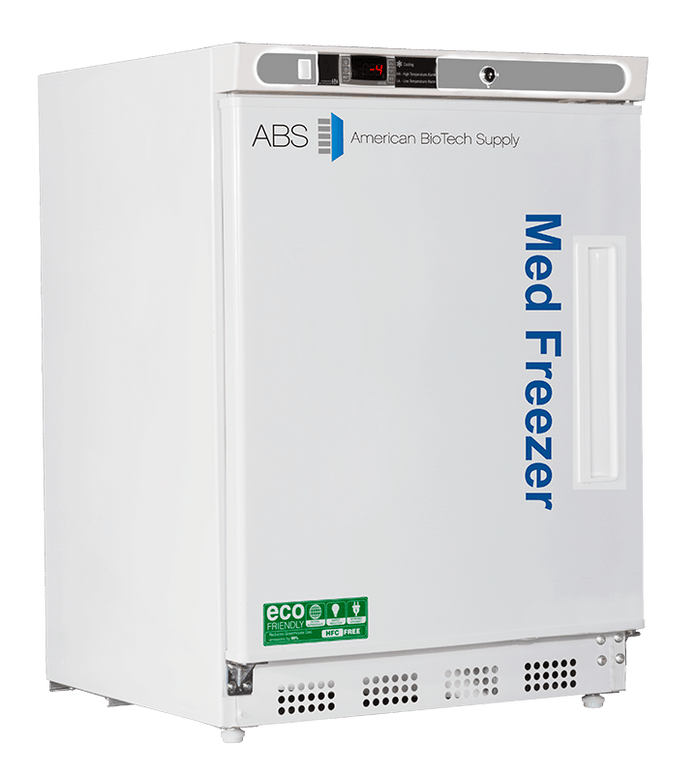

American Biotech Supply - PH-ABT-HC-UCBI-0420-LH - 4.2 Cu. Ft. Premier Pharmacy/Vaccine Undercounter Freezer Built-In, Left Hinged

Features
The Premier Pharmacy Built-In Undercounter Freezers feature a microprocessor temperature controller and display, allowing for precise temperature control, verification, and recovery versus mechanical style thermostats. Critical samples and supplies are security backed with an extensive package of audible and visual alarms.
Periodic defrosting is required.
The Built-In models are designed with a "front breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C to 8°C) in the refrigerator and -58°F to 5°F (or -50°C to -15°C) in the freezer.
Details
- Two fixed shelves
- Vaccine storage power cord warning label
- Keyed door lock
- Recessed door handle
- Magnetic door gasket for positive seal
- Leveling legs
- HFC-free refrigerant (R600a), foam insulation and packaging
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Two-year parts and labor warranty, plus an additional three-year compressor parts-only warranty
Temp Controller

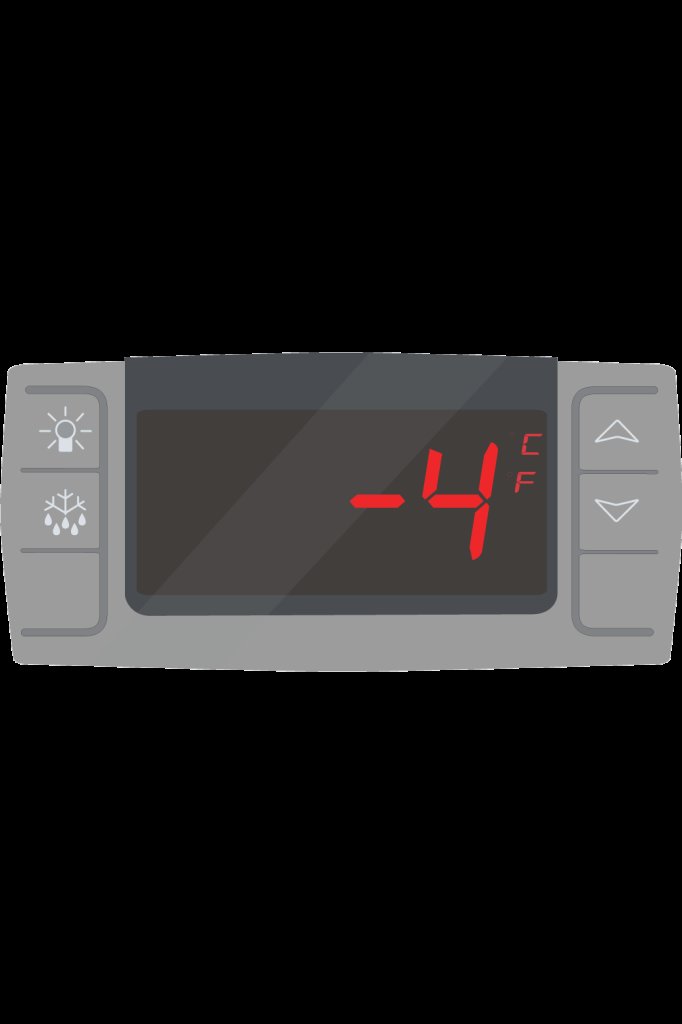

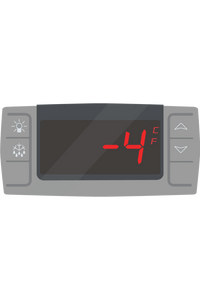

- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- 2 probes; 1 in air and 1 in glycol bottle
- Adjustable operating temperature range: 5°F to -13°F (-15°C to -25°C)
- Temperature monitor device (TMD) complies with the current CDC guidelines, with 3 years certification of calibration, "buffered" probe in the product simulated solution, min/max memory. F/C switchable, field installable, and visual & audible temp alarm
Specifications
Overview
-
Nominal Height:33.38" (84.79 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:24.5" (62.23 cm)
-
Internal Height:24.5" (62.23 cm)
-
Internal Width:19" (48.26 cm)
-
Internal Length:17.25" (43.82 cm)
-
Capacity:4.2
Technical Data
-
Defrost:Manual
-
Door:1 Solid LH
-
Int Door:0
-
Shelves:2 Fixed
-
Refrigerant:R600a
-
H.P.:0.125
-
Amps:1.5
-
Weight:100 lbs.
