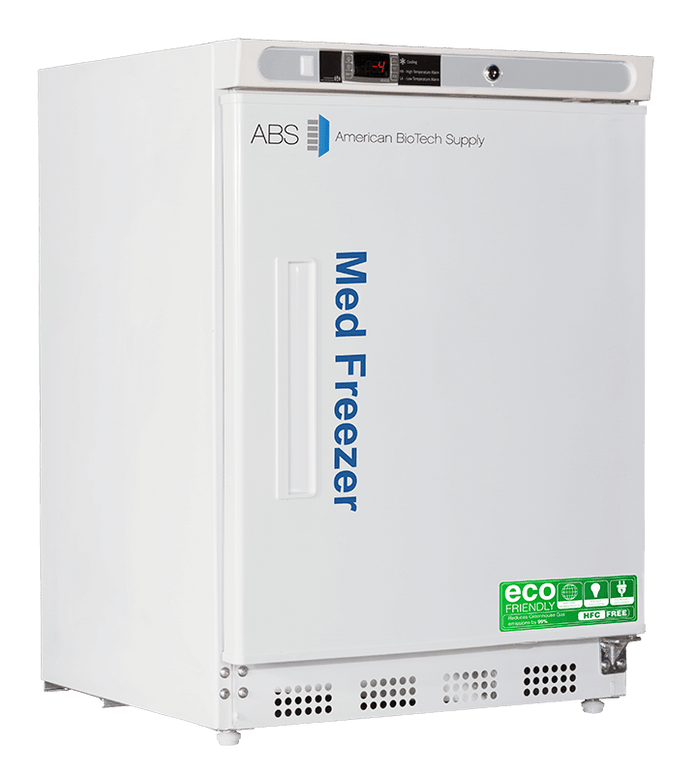

American Biotech Supply - PH-ABT-HC-UCBI-0420A - 4.2 Cu. Ft. Capacity Premier Pharmacy/Vaccine Undercounter Auto Defrost Freezer Built-In

Features
Periodic defrosting is required.
The Built-In models are designed with a "front breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C to 8°C) in the refrigerator and -58°F to 5°F (or -50°C to -15°C) in the freezer.
Details
- Two fixed shelves
- Vaccine storage power cord warning label
- Keyed door lock
- Recessed door handle
- Magnetic door gasket for positive seal
- Leveling legs
- HFC-free refrigerant (R600a), foam insulation and packaging
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Two-year parts and labor warranty, plus an additional three-year compressor parts-only warranty
- Pyxis®, Omnicell® and AcuDose RX® compatible
Temp Controller

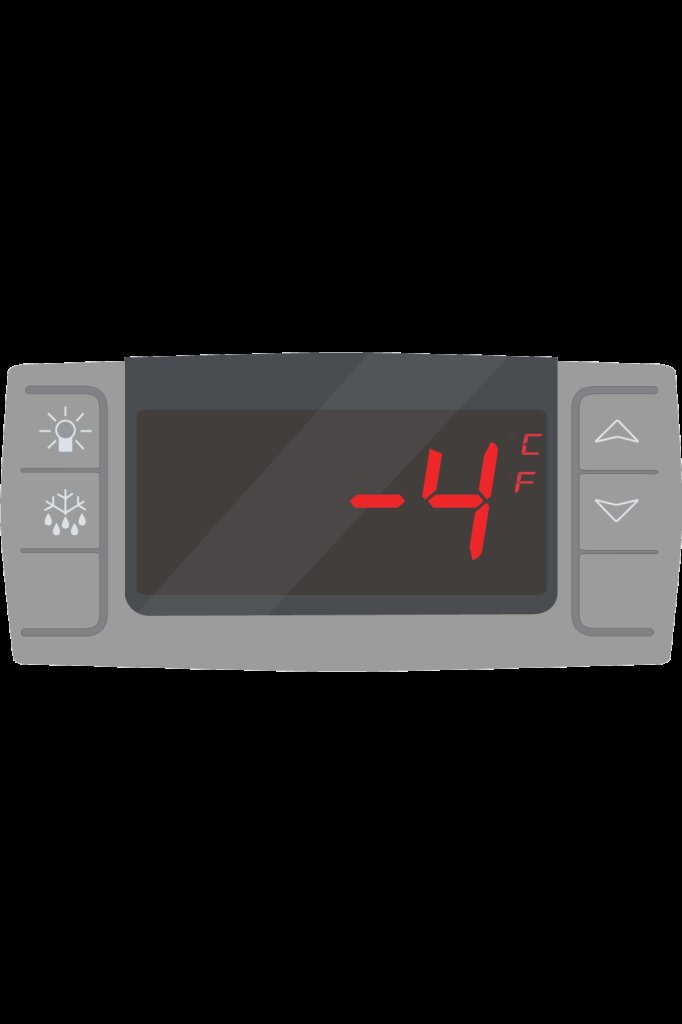

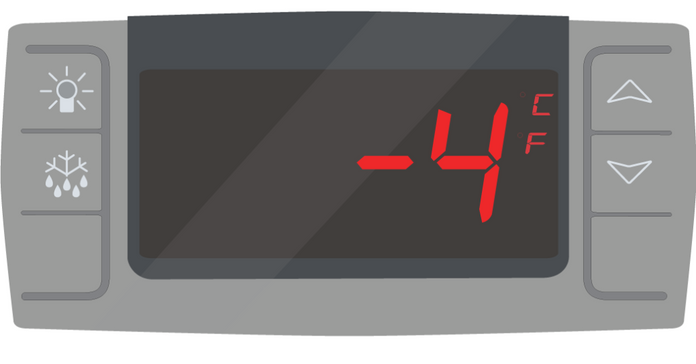

- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- Adjustable operating temperature range: 5°F to -13°F (-15°C to -25°C)
- Auto defrost cycle every 6 hours:
Max air temp in empty freezer: 4.9°C
Max air temp in loaded freezer: 0.6°C
Max sample temp in empty freezer: -9.1°C
Max sample temp in loaded freezer: -11.2°C. - F/C switchable, field installable, and visual & audible temp alarm
Specifications
Overview
-
Nominal Height:33.13" (84.15 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:24.5" (62.23 cm)
-
Internal Height:23.75" (60.33 cm)
-
Internal Width:18.63" (47.32 cm)
-
Internal Length:16.25" (41.28 cm)
-
Capacity:4.2
Technical Data
-
Defrost:Auto
-
Door:1 Solid
-
Int Door:0
-
Shelves:3 Adj
-
Refrigerant:R290
-
H.P.:0.125
-
Amps:1.8
-
Weight:100 lbs.
-
Shipping Weight:143 lbs.
Drawings
-
PH-ABT-HC-UCBI-0420A Ext CutsheetVisit Link
-
PH-ABT-HC-UCBI-0420A Int CutsheetVisit Link
Useful Links
-
PH-ABT-HC-UCBI-0420A SpecSheetVisit Link
