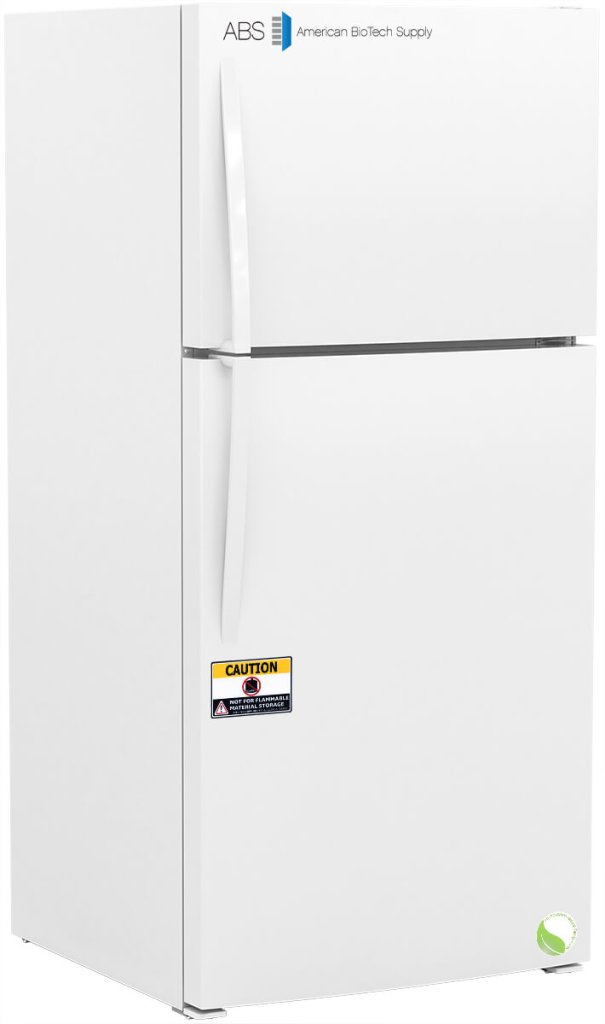

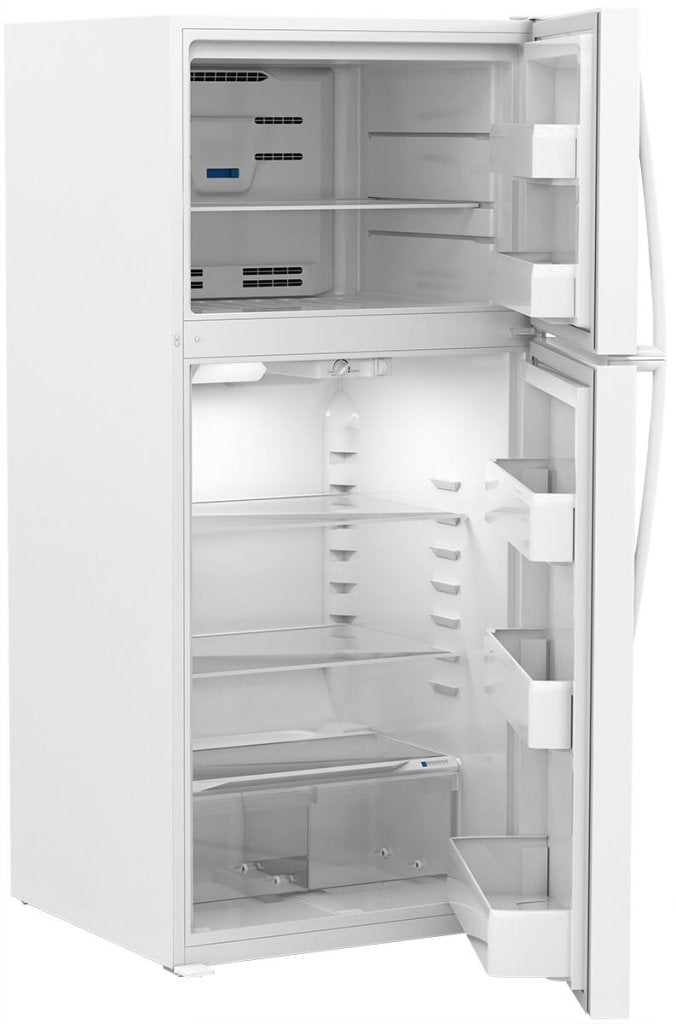

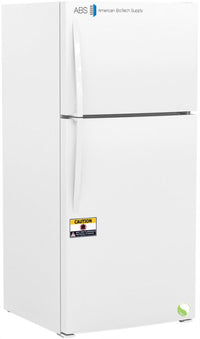

American Biotech Supply - ABT-HC-RFC20A - 20 Cu. Ft. General Purpose Refrigerator and Freezer Combination

Features
Auto defrost freezer compartments have programmed defrost cycles that will reach air temperatures of approximately 0 degrees Celsius.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Disclaimer: Auto defrost freezers incorporate an electric heater installed on the evaporator that assists in the removal of frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer.
Details
- Three shelves in refrigerator (one fixed, two adjustable); one fixed shelf in freezer
- Magnetic door gasket for positive seal
- Heavy duty door handles
- Leveling legs
- Interior refrigerator light
- Two probe access ports (0.4"); one for refrigerator, one for freezer
- White textured cabinet and door
- High density urethane foam cabinet and door insulation
- Hydrocarbon, natural refrigerant (R600a)
- Two-year parts and labor warranty, plus an additional three-year compressor parts warranty
Temp Controller
- Mechanical thermostat
- Refrigerator temperature range: 0°C to 10°C
- Freezer chamber: -15°C to -10°C with two auto defrost cycles warming to 0°C per day
Specifications
Overview
-
Nominal Height:69" (175.26 cm)
-
Nominal Width:30" (76.2 cm)
-
Nominal Length:34.13" (86.69 cm)
-
Capacity:20
Technical Data - Freezer
-
Storage Capacity (cu. ft.):20 Cu. Ft. (15 Cu. Ft Refrigerator/5 Cu. Ft. Freezer)
-
Door:2 swing solid doors
-
Shelves:3 shelves, (1 Fixed, 2 Adjustable) -Refrigerator
-
Freezer Compartments:Non-applicable
-
Baskets:1 Removable Bin -Refrigerator
-
Mounting:Fixed position rollers
-
Interior Lighting:Interior Refrigerator Light
-
Airflow Management:Non-applicable
-
External Probe Access:Probe access port
-
Insulation:High density urethane foam cabinet insulation
-
Exterior Materials:Steel
-
Access Control:Non-applicable
-
General Warranty:Two (2) year parts and labor warranty, Three (3) year additional compressor parts warranty
-
Product Weight (lbs):170
-
Shipping Weight (lbs):200
-
Rated Amperage:2 Amps
-
Power Plug/Power Cord:NEMA 5-15 Plug, 8-10 ft. typical, conforms to UL471 requirements
-
Facility Electrical Requirement:115V, 60 Hz
-
Agency Listing and Certification:Non-applicable
Refrigeration System
-
Refrigerant:R600a
-
Defrost:Auto defrost (freezer), Cycle defrost (refrigerator)
Downloads
-
ABT-HC-RFC20A-DataSheetDownload
