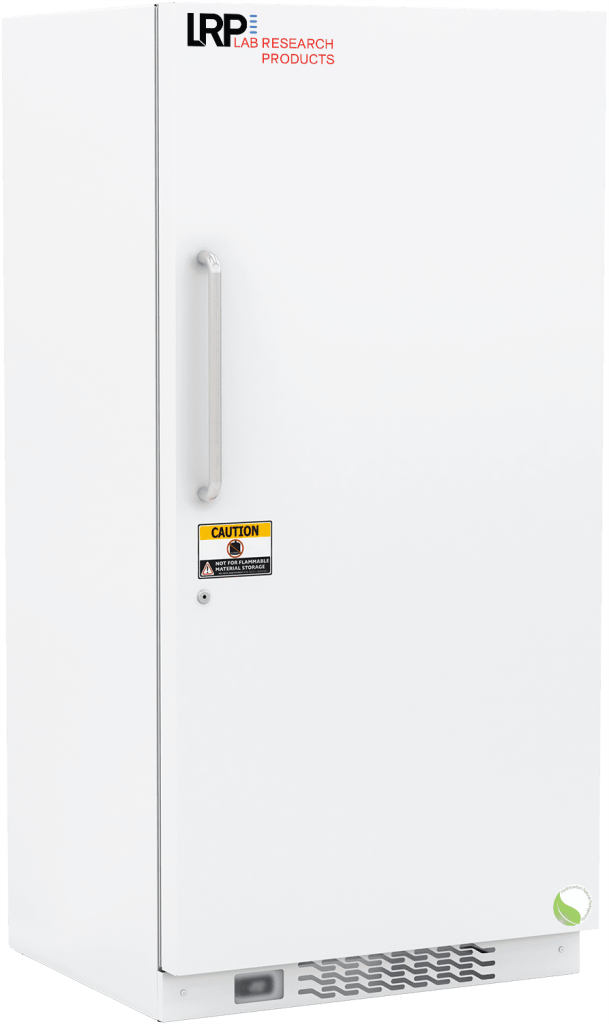

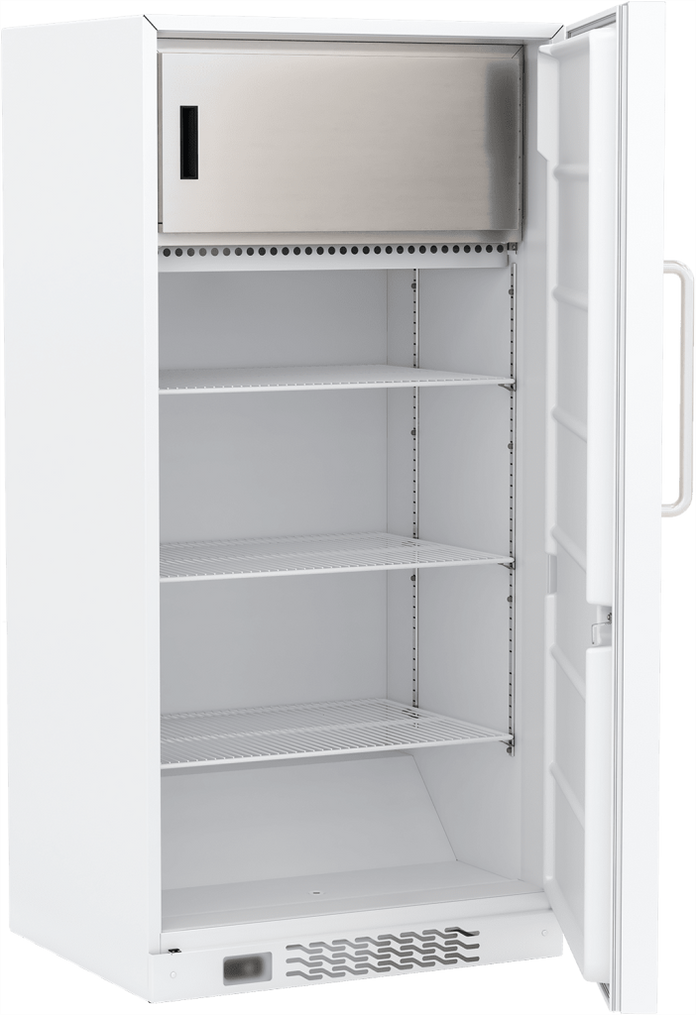

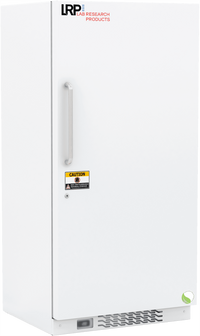

This standard laboratory refrigerator/freezer combination unit offers 30 cubic feet of versatile storage for laboratory environments.

Features

Its temperature control is powered by microprocessor technology for improved temperature precision and uniformity. A series of audible and visual alarms safeguards stored contents for added protection. Utilizing hydrocarbon refrigerants, this unit meets EPA SNAP compliance, protecting environmental safety. With low energy consumption and environmental benefits, this model is an efficient and dependable solution for general laboratory applications.

Specifications

Overview

  • Capacity:
    30

General Description and Application

  • Door:
    One (1) solid swing, right hinged, stainless steel door handle, magnetic door gasket
  • Interior:
    One (1) inner door (freezer)
  • Shelves:
    Three (3) adjustable wire shelves (refrigerator)
  • Mounting and Installation:
    Leveling legs
  • External Probe Access:
    Two (2) 3/4" probe access port on rear wall
  • Insulation:
    Epa compliant high density urethane foam
  • Exterior Materials:
    Powder coated steel
  • Access Control:
    Keyed door lock
  • General Warranty:
    Two (2) year parts and labor warranty
  • Compressor Warranty:
    Five (5) year compressor warranty
  • Product Weight (LBS):
    353
  • Shipping Weight (LBS):
    383
  • Rated Amperage:
    3 amps
  • Power Plug/Power Cord:
    Nema 5-15p plug, 6 ft long cord
  • Facility Electrical Requirement:
    110 - 120v ac, 15a breaker, nema 5-15 receptacle
  • Agency Listing and Certification:
    Ul listed per ul 60335-1 and ul 60335-2-89 standards, c ul listed per csa c22.2 no. 120 standard

Performance

  • Freezer Maximum Temperature Variation:
    +/- 4.5°C
  • Refrigerator Maximum Temperature Variation:
    +/- 2.5°C
  • Freezer Temperature Range:
    -15°C to -20°C
  • Refrigerator Temperature Range:
    0°C to 8°C
  • Pull Down Time to Nominal Operating Temp:
    90 min (empty)
  • Energy Consumption (kWh/day):
    4 kWh/day
  • Average Heat Rejection (BTU/hr):
    570 BTU/hr

Refrigeration System

  • Compressor:
    Hermetic, variable speed
  • Refrigerant:
    EPA SNAP compliant R290 propane
  • Condenser:
    Static - exterior walls of cabinet with auxiliary fan
  • Evaporator:
    Evaporator shelves
  • Defrost:
    Manual defrost
