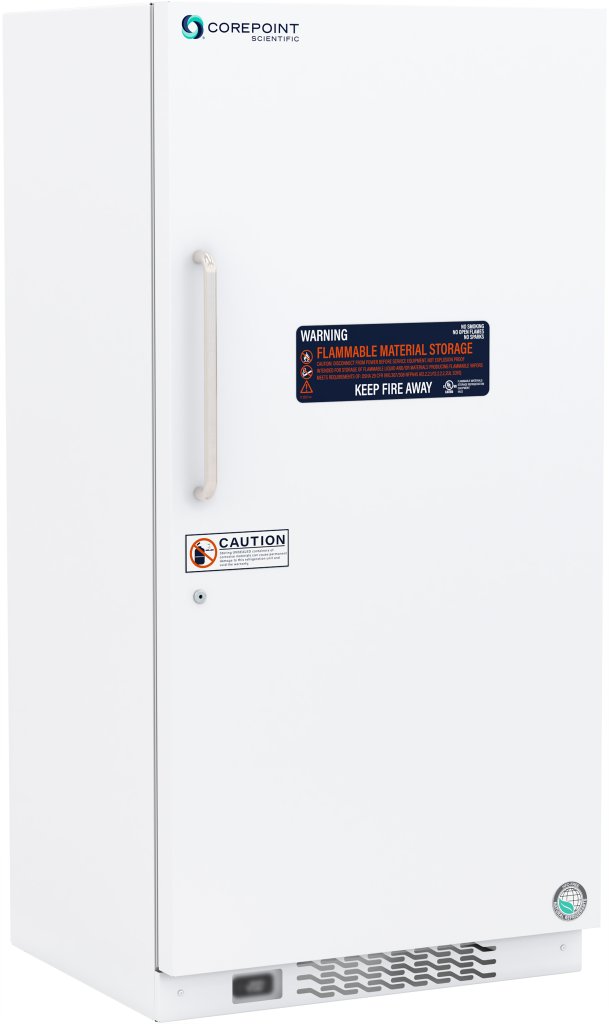

Corepoint Scientific - CPS-HC-FRCS-30 - 30 Cu. Ft. Standard Flammable Storage Refrigerator/Freezer Combination Unit

Corepoint Scientific - CPS-HC-FRCS-30 - 30 Cu. Ft. Standard Flammable Storage Refrigerator/Freezer Combination Unit
Corepoint Scientific - CPS-HC-FRCS-30 - 30 Cu. Ft. Standard Flammable Storage Refrigerator/Freezer Combination Unit

Corepoint Scientific - CPS-HC-FRCS-30 - 30 Cu. Ft. Standard Flammable Storage Refrigerator/Freezer Combination Unit

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
This standard flammable storage refrigerator/freezer combination unit offers a secure solution for storing volatile materials in laboratory and industrial settings.

Features

This model meets NFPA and OSHA guidelines 45 and 70 for the refrigerated storage of flammable (volatile) materials in general laboratory work areas. Its temperature control is powered by microprocessor technology for improved temperature precision and uniformity. A series of audible and visual alarms safeguards stored contents for added protection. Utilizing hydrocarbon refrigerants, this unit also meets EPA SNAP compliance, protecting environmental safety. With low energy consumption and high safety standards, this model is an efficient and dependable solution for the safe storage of flammable substances.

Specifications

Overview

  • Nominal Height:
    72.5" (184.15 cm)
  • Nominal Width:
    35.75" (90.81 cm)
  • Nominal Length:
    35.5" (90.17 cm)
  • Internal Height:
    60.5" (153.67 cm)
  • Internal Width:
    32" (81.28 cm)
  • Internal Length:
    22.5" (57.15 cm)
  • Capacity:
    30

General Description and Application

  • Door:
    One (1) solid swing, right hinged, stainless steel door handle, magnetic door gasket
  • Inner Door(s):

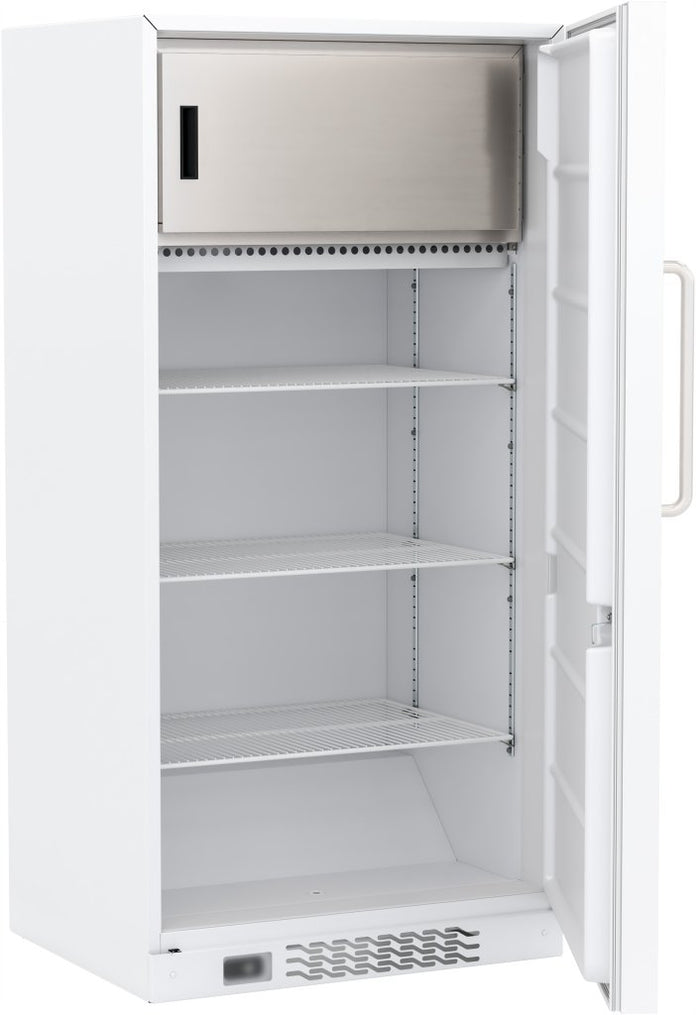

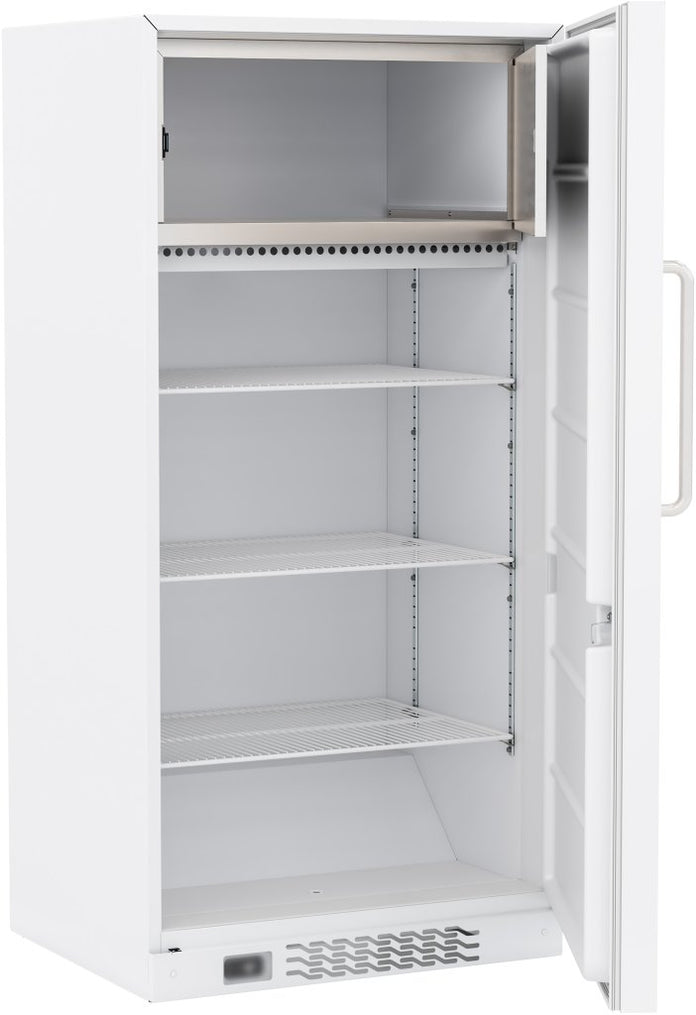

    One (1) inner door (freezer)
  • Handle(s):
    Stainless steel
  • Shelves:
    Three (3) adjustable wire shelves (refrigerator)
  • Mobility and Leveling:
    Leveling legs
  • External Probe Access:
    Two (2) 3/4" probe access port on rear wall
  • Insulation:
    EPA compliant high density urethane foam
  • Exterior Material:
    Powder coated steel
  • Access Control:
    Keyed door lock
  • Warranty:
    Two (2) year parts and labor warranty, five (5) year compressor warranty
  • Product Weight (lbs.):
    353
  • Rated Amperage:
    3
  • Power Plug/Cord:
    NEMA 5-15P plug, 6 ft long cord
  • Electrical Requirement:
    110 - 120V AC, 15A breaker, NEMA 5-15 receptacle

Refrigeration System

  • Compressor:
    Hermetic, variable speed
  • Refrigerant:
    EPA SNAP compliant R290 propane
  • Defrost:
    Manual

Controller, Configuration, Alarms and Monitoring

  • Controller Technology:
    Microprocessor temperature controller with variable frequency compressor control
  • Battery Backup:
    Non-applicable
  • External Alarm Connection:
    Remote alarm contacts
  • Alarms:
    Audible and visual high/low-temperature alarms, door ajar alarm, remote alarm contacts
