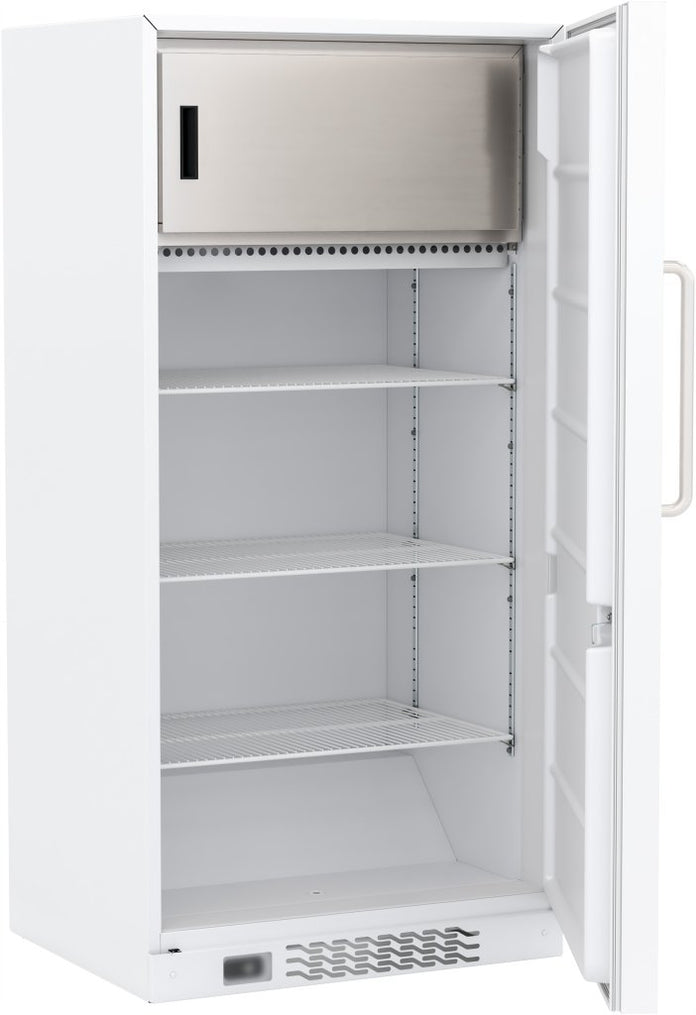

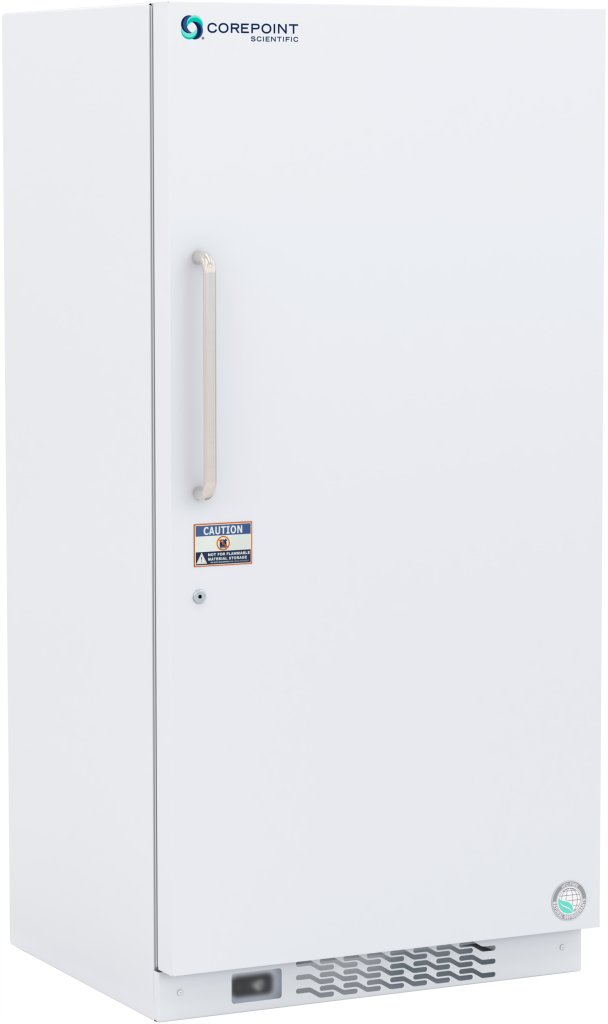

Corepoint Scientific - CPS-HC-RFC-30M - 30 Cu. Ft. Standard Laboratory Refrigerator/Freezer Combination Unit
Features
Its temperature control is powered by microprocessor technology for improved temperature precision and uniformity. A series of audible and visual alarms safeguards stored contents for added protection. Utilizing hydrocarbon refrigerants, this unit meets EPA SNAP compliance, protecting environmental safety. With low energy consumption and environmental benefits, this model is an efficient and dependable solution for general laboratory applications.
Specifications
Overview
-
Nominal Height:72.5" (184.15 cm)
-
Nominal Width:35.75" (90.81 cm)
-
Nominal Length:35.5" (90.17 cm)
-
Internal Height:60.5" (153.67 cm)
-
Internal Width:32" (81.28 cm)
-
Internal Length:22.5" (57.15 cm)
-
Capacity:30
General Description and Application
-
Door:One (1) solid swing, right hinged, stainless steel door handle, magnetic door gasket
-
Inner Door(s):One (1) inner door (freezer)
-
Handle(s):Stainless steel
-
Shelves:Three (3) adjustable wire shelves (refrigerator)
-
Mobility and Leveling:Leveling legs
-
External Probe Access:Two (2) 3/4" probe access port on rear wall
-
Insulation:EPA compliant high density urethane foam
-
Exterior Material:Powder coated steel
-
Access Control:Keyed door lock
-
Warranty:Two (2) year parts and labor warranty, five (5) year compressor warranty
-
Product Weight (lbs.):353
-
Rated Amperage:3
-
Power Plug/Cord:NEMA 5-15P plug, 6 ft long cord
-
Electrical Requirement:110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
Refrigeration System
-
Compressor:Hermetic, variable speed
-
Refrigerant:EPA SNAP compliant R290 propane
-
Defrost:Manual defrost
Controller, Configuration, Alarms and Monitoring
-
Controller technology:Microprocessor temperature controller with variable frequency compressor control
-
External alarm connection:Remote alarm contacts
-
Alarms:Audible and visual high/low-temperature alarms, door ajar alarm, remote alarm contacts
Downloads
-
CPS-HC-RFC-30M Product Data SheetDownload
