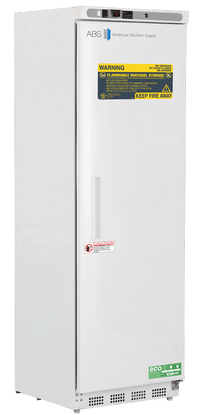

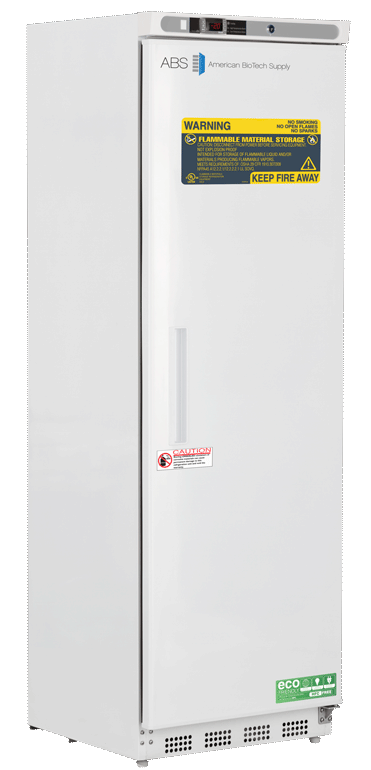

American Biotech Supply - ABT-HC-FFP-14 - 14 Cu. Ft. Standard Flammable Storage Freezer with Natural Refrigerants

American Biotech Supply - ABT-HC-FFP-14 - 14 Cu. Ft. Standard Flammable Storage Freezer with Natural Refrigerants
American Biotech Supply - ABT-HC-FFP-14 - 14 Cu. Ft. Standard Flammable Storage Freezer with Natural Refrigerants

American Biotech Supply - ABT-HC-FFP-14 - 14 Cu. Ft. Standard Flammable Storage Freezer with Natural Refrigerants

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert

Flammable storage freezers meet the requirements of NFPA 45 and NFPA 30 for cold storage of flammable and combustible materials in unclassified laboratory locations. Utilizes non-sparking and/or ATEX rated components to ensure an intrinsically safe interior for flammable materials in sealed containers. These units feature temperature alarms, keyed door locks, interior shelving, probe access, and microprocessor temperature control.

Features

Models utilize environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) which vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL or ETL, ASHRAE compliance guidelines.



Please Note: For manual defrost freezers, periodic manual defrosting is required.  Freestanding models require 4" of clearance around back and sides of unit for proper ventilation.



Details

  • 14 Cu. Ft. Capacity

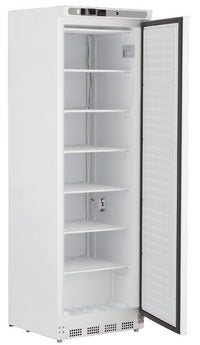

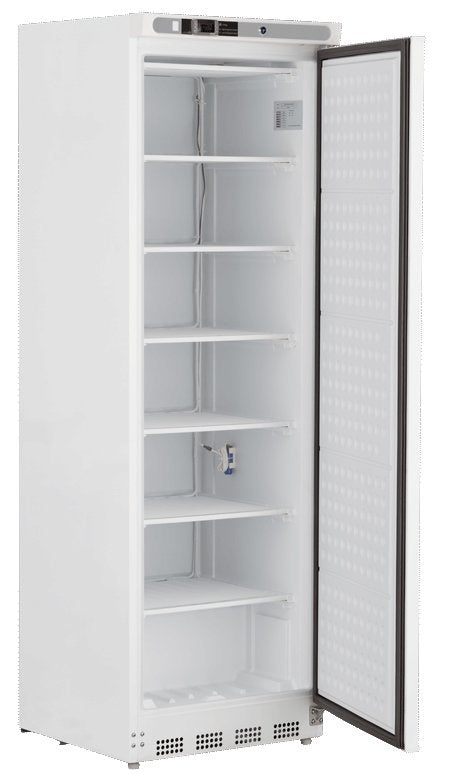

  • One solid swing door, right hinged
  • Six fixed shelves
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Leveling legs
  • Probe access port (3/4″)
  • Powder coat exterior
  • High density urethane foam cabinet and door insulation
  • Natural, Hydrocarbon Refrigerant (R290)
  • Utilizes ATEX and non-sparking components for safety
  • Two year parts and labor warranty



Temp Controller

  • Microprocessor temperature controller
  • Adjustable operating temperature range:-15°C – -25°
  • Digital temperature display with sample simulated probe
  • Audible and visual high and low temperature alarms
  • Remote alarm contacts





Specifications

Overview

  • Nominal Height:
    73" (185.42 cm)
  • Nominal Width:
    23.63" (60.02 cm)
  • Nominal Length:
    24.38" (61.93 cm)
  • Internal Width:
    19" (48.26 cm)
  • Internal Length:
    17.5" (44.45 cm)
  • Capacity:
    14

General Description and Application

  • Door:
    Right hinged
  • Shelves:
    6 Fixed
  • Freezer Compartments:
    Non-applicable
  • Baskets:
    Non-applicable
  • Mounting:
    Leveling legs
  • Interior Lighting:
    Non-applicable
  • Airflow Management:
    Non-applicable
  • External Probe Access:
    Rear wall port (3/4") dia.
  • Insulation:
    Cabinet is foamed-in-place with EPA compliant high density urethane foam
  • Exterior Materials:
    White powder coated steel
  • Access Control:
    Keyed door lock
  • General Warranty:
    Two (2) year parts and labor warranty
  • Warranty Disclaimer:
    Products require 4” of clearance around back and sides of the unit for proper ventilation - improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
  • Shipping Weight (lbs):
    190
  • Rated Amperage:
    3 Amps
  • Power Plug/Power Cord:
    NEMA 5-15 Plug, conforms to UL471 requirements
  • Facility Electrical Requirement:
    115V, 60 Hz
  • Agency Listing and Certification:
    ETL, C-ETL listed and certified to UL471 standard, hydrocarbon refrigerant safety, Energy Star Certified

Refrigeration System

  • Refrigerant:
    R290
  • Defrost:
    Manual

Controller, Configuration, Alarms and Monitoring

  • Controller Technology:
    Microprocessor temperature controller with digital temperature display, °C/°F switchable
  • Display Technology:
    Standard Digital Temperature Display
  • Adjustable Temperature Range:
    -15°C to -25°C
  • External Alarm Connection:
    State switching remote alarm contacts
  • Alarms:
    Audible and visual high and low temperature alarms
  • Controller Probe:
    2 Probes, 1 in air and 1 in sample bottle
  • Disclaimers:
    These units are NOT designed for use in environments where volatile/explosive conditions could potentially exist; Defrosting of the unit will need to be performed periodically to prevent severe ice build-up; Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
