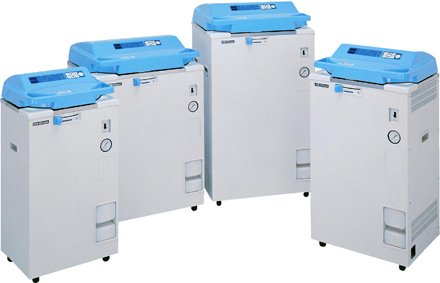

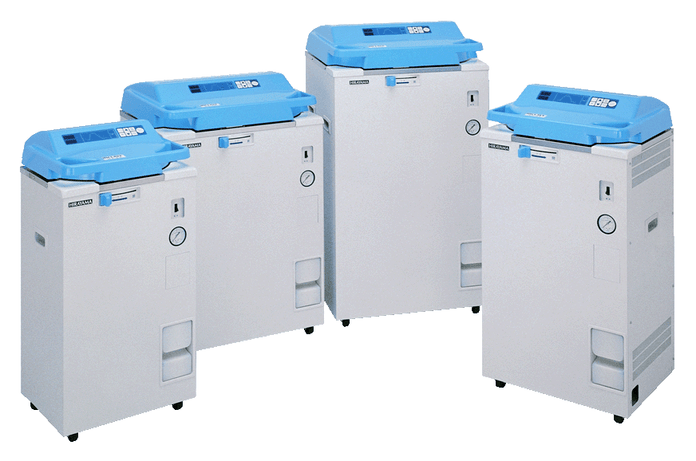

Amerex - HV-Series Autoclaves (Non-Drying Models)

Product Range

SKU	Name
HV-110	Amerex - HV-110 - Portable, Top-Loading Autoclaves Without Drying
HV-25	Amerex - HV-25 - Portable, Top-Loading Autoclaves Without Drying
HV-50	Amerex - HV-50 - Portable, Top-Loading Autoclaves Without Drying
HV-85	Amerex - HV-85 - Portable, Top-Loading Autoclaves Without Drying

Space-saving design with lid opening upward.
Programmable auto-start for initiating a cycle up to 1 week later.
Dual-sensing lid interlock prevents lid opening when chamber is pressurized or when temperature exceeds 97°C.
Automatic air purging by a microprocessor prevents over-pressurization during a cycle.
One-touch lever to easily open and close chamber lid.
Programmable rate of steam exhaust.
Door-closure sensor provides a prompt and the cycle will not start unless the door is closed properly.
In-process display shows status and progress of sterilization cycle.
Agar sterilization mode for sterilizing agar and then automatically maintaining it at liquid temperature.
Unique accessory: Floating sensor to monitor load temperature.
Sterilization timer is activated only when load temperature reaches set temperature.
Agar melting mode for rapidly melting agar and maintaining it at liquid temperature, or for a hot and faster start-up.
Memory backup system retains user-programmed parameters even in case of power failure.

Temperature - Operating Range::

105°C to 126°C/105°C to 135°C
Temperature - Display Range::

128°C - 137°C
Temperature - Warming Range::

45°C to 60°C
Gauge Pressure - Operating Range::

3 to 30 psi (0.021 to 0.206MPa)/3 to 22 psi (0.02 to 148MPa)
Gauge Pressure - Maximum Allowable: :

27 psi (0.186MPa)/38 psi (0.26MPa)
Sterilization Timer::

1 to 250 minutes
Delayed Auto-Start Timer: :

Program autoclave to start 1 minute to 7 days later
Accessories - Stainless Steel: :

Mesh wire baskets, buckets (pails), and round test tube racks
Accessories - Factory or Field Installed: :

Floating (load) sensor, digital printer, and data logger
Power Source::

120V, 50/60 Hz (220V/240V available); 208V/220V/240V, 50/60 Hz, single phase
