Amerex - HV-25 - Portable, Top-Loading Autoclaves Without Drying
Features

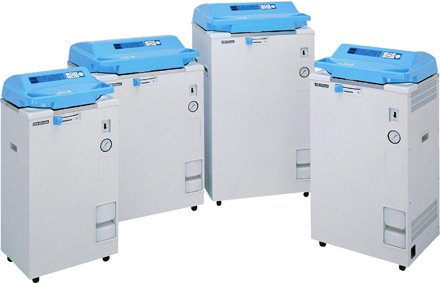

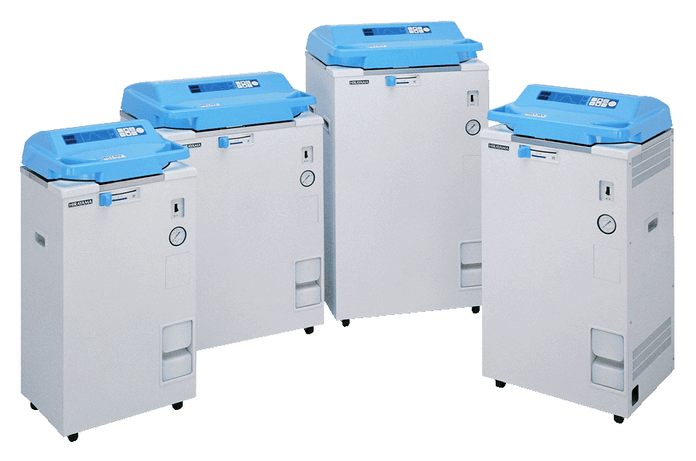

The 25-liter HV-25 and the 50-liter HV-50 autoclaves are self-contained, portable floor models mounted on caster wheels. They occupy minimum floor space, operate at 120V, and can fit conveniently into many locations in the laboratory. Their many uses include the sterilization of agar, media, waste, and glassware. The HV-50 model can accommodate a 10-L fermenter, a 15-L carboy, a 19” x 24” biohazard bag, nine 1-L, or twenty-one 500-mL bottles, or one hundred eighty 20-mm test tubes.
- Space-saving design with lid opening upward.
- Programmable auto-start for initiating a cycle up to 1 week later.
- Dual-sensing lid interlock prevents lid opening when chamber is pressurized or when temperature exceeds 97°C.
- Automatic air purging by a microprocessor prevents over-pressurization during a cycle.
- One-touch lever to easily open and close chamber lid.
- Programmable rate of steam exhaust.
- Door-closure sensor provides a prompt and the cycle will not start unless the door is closed properly.
- In-process display shows status and progress of sterilization cycle.
- Agar sterilization mode for sterilizing agar and then automatically maintaining it at liquid temperature.
- Unique accessory: Floating sensor to monitor load temperature.
- Sterilization timer is activated only when load temperature reaches set temperature.
- Agar melting mode for rapidly melting agar and maintaining it at liquid temperature, or for a hot and faster start-up.
- Memory backup system retains user-programmed parameters even in case of power failure.
Specifications
Overview
-
Nominal Height:37.4" (95.0 cm)
-
Nominal Width:19" (48.26 cm)
-
Nominal Length:18" (45.72 cm)
-
Capacity:25
Technical Data
-
Temperature - Operating Range:105°C to 126°C
-
Temperature - Display Range:128°C
-
Temperature - Warming Range:45°C to 60°C
-
Gauge Pressure - Operating Range:3 to 22 psi (0.02 to 148MPa)
-
Gauge Pressure - Maximum Allowable:27 psi (0.186MPa)
-
Sterilization Timer:1 to 250 minutes
-
Delayed Auto-Start Timer:Program autoclave to start 1 minute to 7 days later
-
Dimensions - Chamber (D x H):25 liters, 9.4" x 21.6" (24 x 55 cm)
-
Accessories - Stainless Steel:Mesh wire baskets, buckets (pails), and round test tube racks
-
Accessories - Factory or Field Installed:Floating (load) sensor, digital printer, and data logger
-
Power Source:120V, 50/60 Hz (220V/240V available)
-
Power Consumption:1500 watts (1500VA)
-
Shipping Weight:160 lb (73 kg)
Downloads
-
HV-Series 25-50 BrochureDownload
