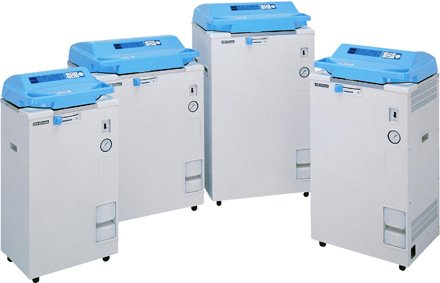

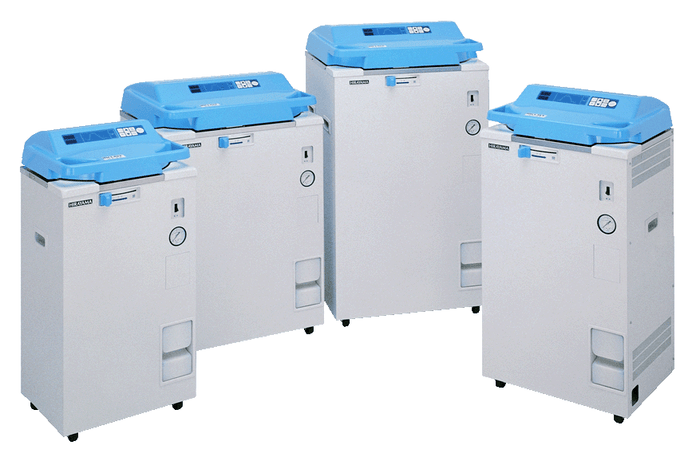

Amerex - HV-85 - Portable, Top-Loading Autoclaves Without Drying
Features
- Space-saving design with lid opening upward.
- Programmable auto-start for initiating a cycle up to 1 week later.
- Dual-sensing lid interlock prevents lid opening when chamber is pressurized or when temperature exceeds 97°C.
- Automatic air purging by a microprocessor prevents over-pressurization during a cycle.
- One-touch lever to easily open and close chamber lid.
- Programmable rate of steam exhaust.
- Door-closure sensor provides a prompt and the cycle will not start unless the door is closed properly.
- In-process display shows status and progress of sterilization cycle.
- Agar sterilization mode for sterilizing agar and then automatically maintaining it at liquid temperature.
- Unique accessory: Floating sensor to monitor load temperature.
- Sterilization timer is activated only when load temperature reaches set temperature.
- Agar melting mode for rapidly melting agar and maintaining it at liquid temperature, or for a hot and faster start-up.
- Memory backup system retains user-programmed parameters even in case of power failure.
Specifications
Overview
-
Nominal Height:39.4" (100.08 cm)
-
Nominal Width:26" (66.04 cm)
-
Nominal Length:25.6" (65.02 cm)
Technical Data
-
Temperature - Operating Range:105°C to 135°C
-
Temperature - Display Range:137°C
-
Temperature - Warming Range:45°C to 60°C
-
Gauge Pressure - Operating Range:3 to 30 psi (0.021 to 0.206MPa)
-
Gauge Pressure - Maximum Allowable:38 psi (0.26MPa)
-
Sterilization Timer:1 to 250 minutes
-
Delayed Auto-Start Timer:Program autoclave to start 1 minute to 7 days later
-
Dimensions - Chamber (D x H):85 liters, 16.5" x 24.2" (42.0 x 61.5 cm)
-
Accessories - Stainless Steel:Mesh wire baskets, buckets (pails), and round test tube rack
-
Accessories - Factory or Field Installed:Floating (load) sensor, digital printer, and data logger
-
Power Source:208V/220V/240V, 50/60 Hz, single phase
-
Power Consumption:3000 watts (3000VA)
-
Shipping Weight:282 lb (128 kg)
