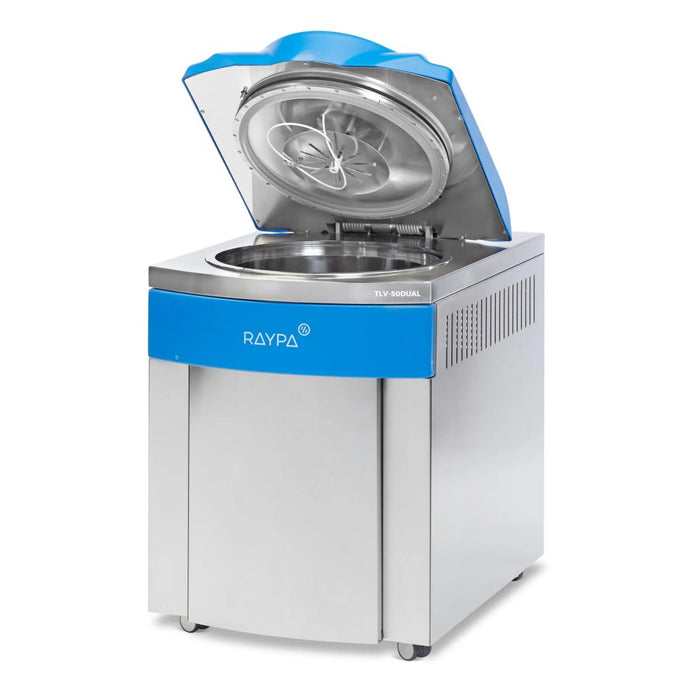

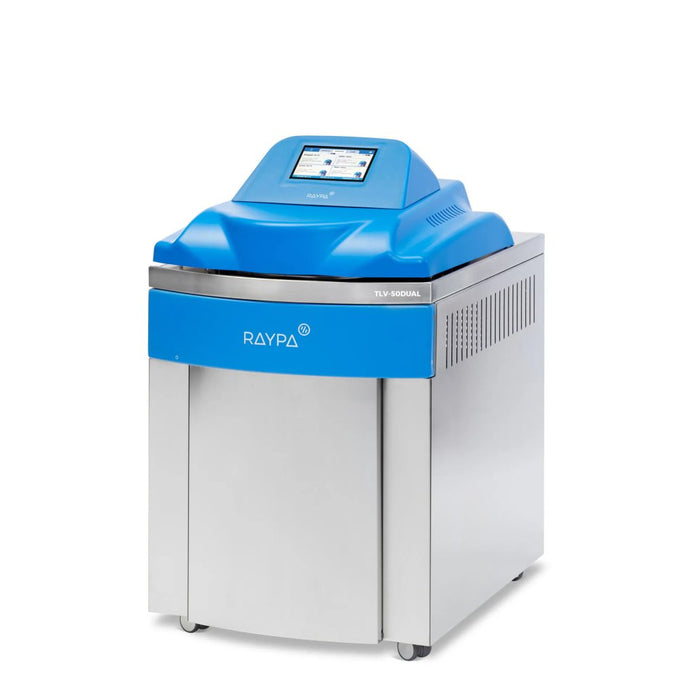

Raypa - TLV-150DUAL-220T-US - Vertical Autoclaves with Super-Drying and Fast Cooling System

Features
The TLV-DUAL Series autoclaves feature a super-drying system including a heating jacket and a high-performance vacuum pump, as well as a fast cooling system comprising a radial fan, water cooling coil, and air compressor. They are designed to provide advanced sterilization of solids and liquids in industrial and research settings within the pharmaceutical, chemical, and biotechnological industries, sterilizing liquids, culture media, hermetically sealed items, pre-filled syringes, glassware, porous solids, and wrapped objects. Top line vertical autoclaves enable fully digital operation. All models are equipped with the most advanced connectivity on the market and comply with the latest advances in electronic records and data control to be able to work under FDA, GMP and GLP environments.
Discover the most advanced technology for the sterilization of porous solids and bioreactors

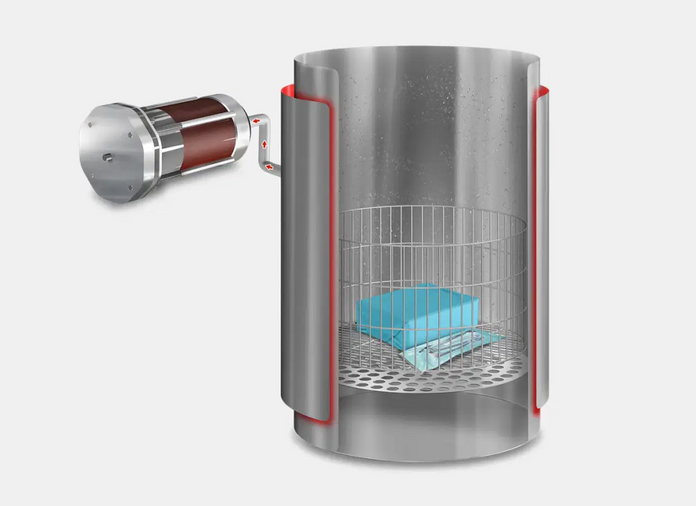

Thanks to its super-drying system, which combines a vacuum pump and a heating jacket, you can sterilize porous solid loads, textiles and complex geometries more efficiently and quickly.
State-of-the-art technology for advanced liquid sterilization

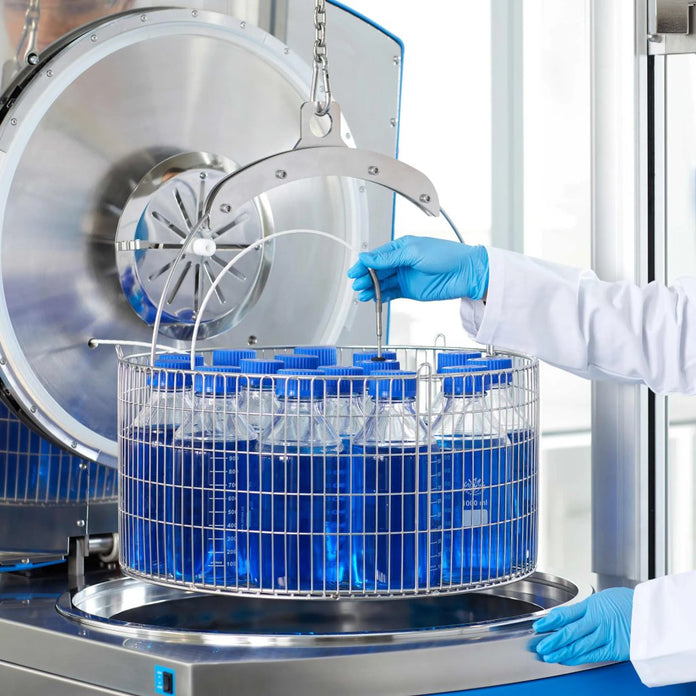

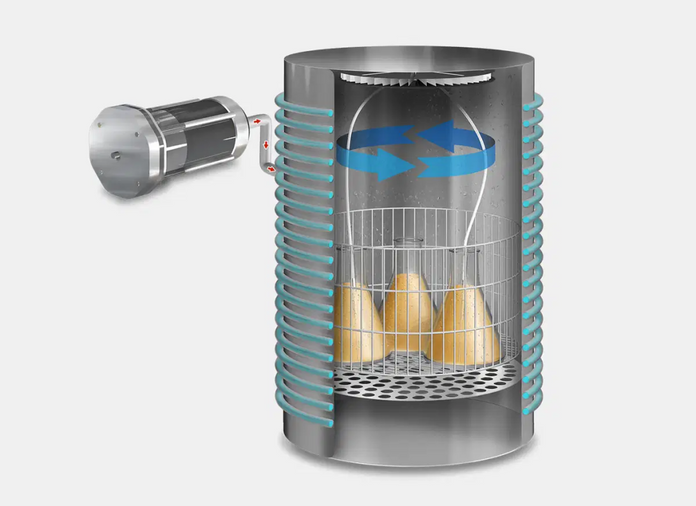

Thanks to its fast cooling system consisting of a radial fan, water coil and air compressor, you will be able to sterilize liquid loads more quickly. Install up to 2 flexible probes and conduct F₀-controlled sterilizations.
Cloud-based connectivity and advanced technical support

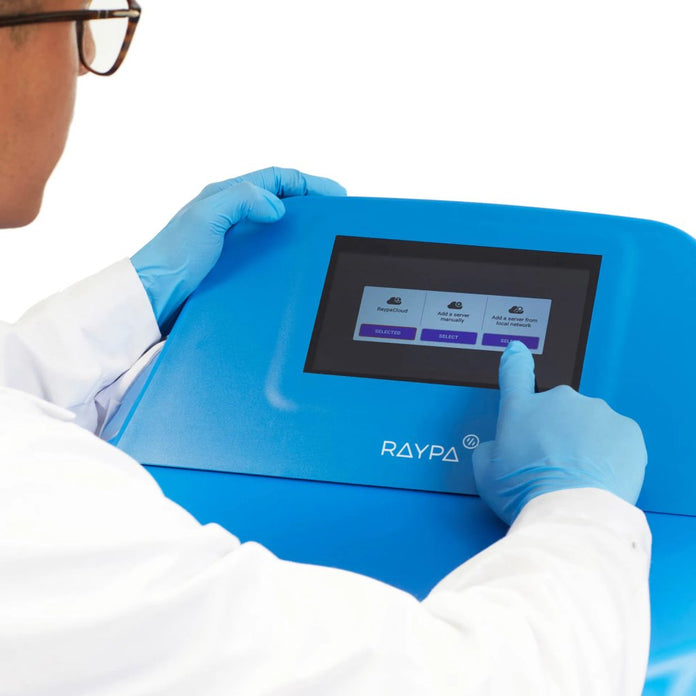

Monitor sterilization cycles from anywhere. Schedule a service meeting from the controller itself and share a screen via TeamViewer®. Online diagnostics of equipment status.
Specifications
Overview
-
Nominal Height:51.57" (130.99 cm)
-
Nominal Width:38.58" (97.99 cm)
-
Nominal Length:27.95" (70.99 cm)
Technical Data
-
Total/Usable Volume of The Chamber (L):169/155
-
Usable Dimensions of The Chamber (Ø x H mm):500 x 850
-
Loading Height (mm):1065
-
Net Weight (kg):210
-
Power (W):9000
-
Voltage (V):220
-
Frequency (Hz):50/60
-
Amperes/Phase:23 A
-
Tension:230 (3P+PE) V
-
Connection:NEMA L15-30P
