A stereo microscope for a wide range of biological and material science applications in both routine and research fields

Product Range

SKU Name
1100200900101 Motic Instruments - 1100200900101 - K-400L Stereo Microscopes
1100200900161 Motic Instruments - 1100200900161 - K-400P Stereo Microscopes
1100200900512 Motic Instruments - 1100200900512 - K-400 LED System Stereo Microscopes

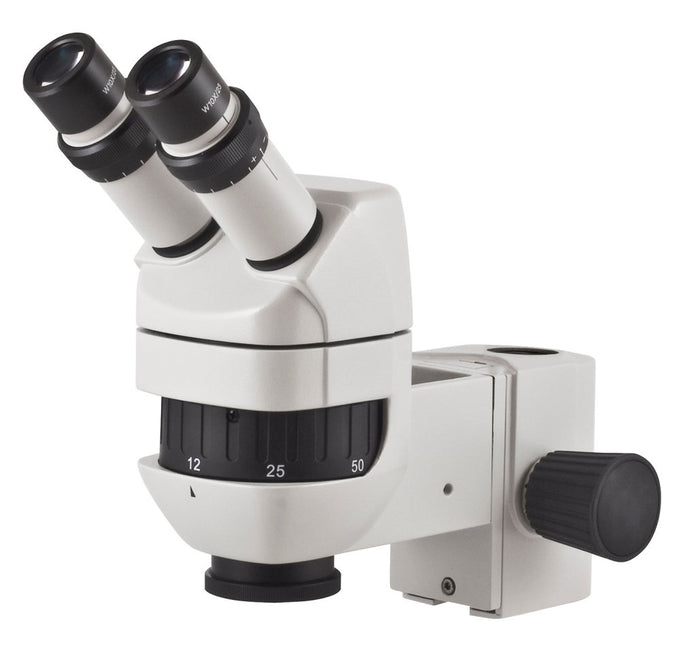

1100200900281 Motic Instruments - 1100200900281 - K-400 HI Stereo Microscopes (Head & Incident Light Only)
1100200900291 Motic Instruments - 1100200900291 - K-400 HS Stereo Microscopes (Head & Incident Light Only)

Features

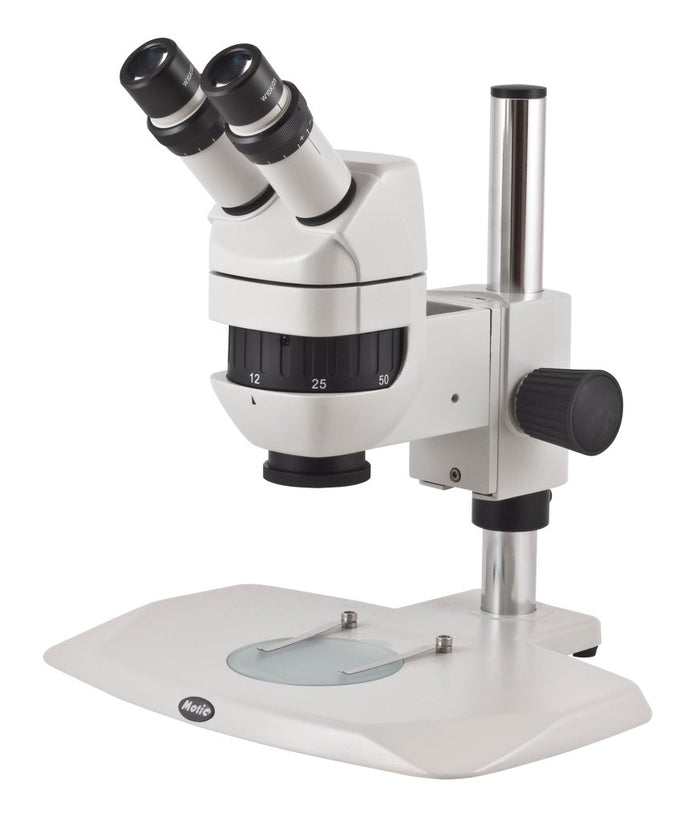

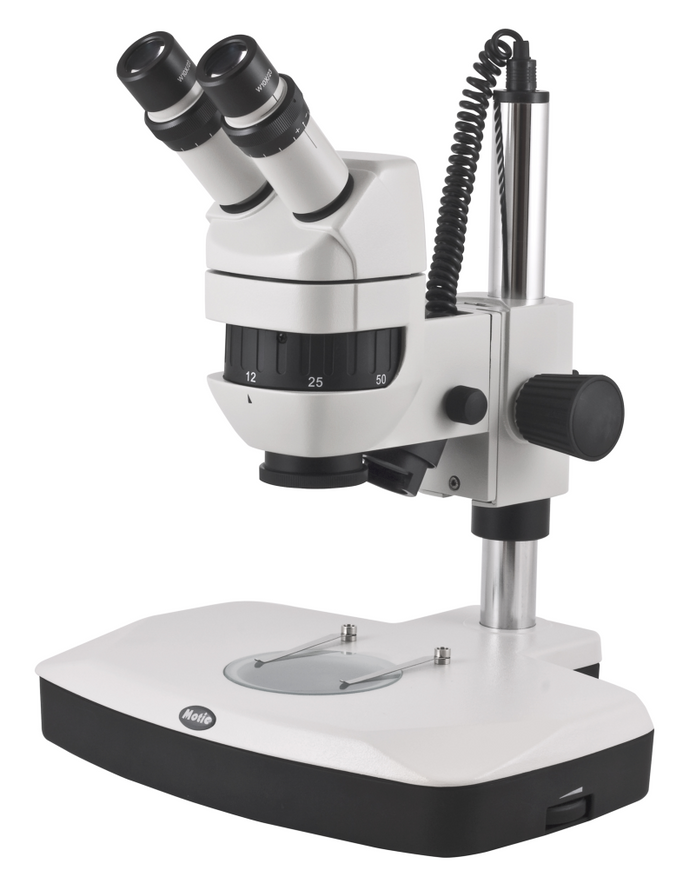

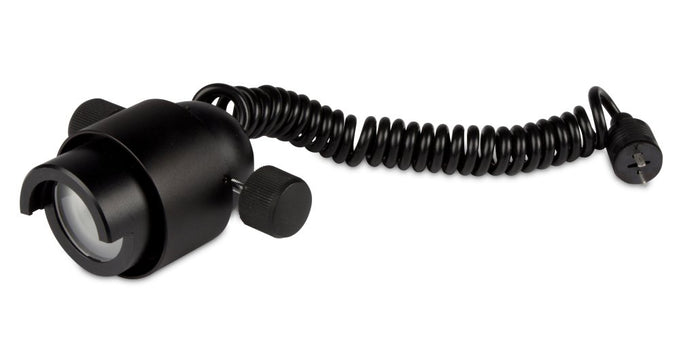

A stereo microscope for a wide range of biological and material science applications in both routine and research fields. The CMO optical system (Common Main Objective) delivers impressive images with a 4-position turret of 6X, 12X, 25X and 50X total magnification in the standard Achromatic outfit. The instrument comes with a 10W transmitted / 10W incident Halogen illumination. An upgrade to documentation is possible by an intermediate photo tube.

Specifications

Overview

Technical Data

  • Optical System:
    Common Main Objective (CMO) Infinity Optical System
  • Observation Tube:
    Binocular head
  • Inclination:
    45° inclined
  • Interpupillary Distance:
    54–76 mm
  • Diopter Adjustment:
    On both tubes, ±5 diopter
  • Eyepieces:
    WF10X/23mm
  • Objectives System:
    4-position magnification changer
  • Objectives magnification:
    6X, 12X, 25X, 50X
  • Working Distance:
    89 mm
  • Focus Mechanism:
    Coarse focusing system with tension adjustment
  • Focusing Stroke:
    49 mm
  • Column/Arm:
    Ø32mm, 295mm high
  • Base:
    329 x 277 mm
  • Stand:
    Pole type stand
  • Accessories Included:
    Dust cover, black/white stage plate
