LEC's new Biomedical Manual Defrost Freezer delivers uniform, reliable, and environmentally responsible performance for critical sample storage down to -30°C.

"}]}]}

Features

LEC’s new Biomedical Manual Defrost Freezer delivers uniform, reliable, and environmentally responsible performance for critical sample storage down to -30°C. Purpose-built for research, biotechnology, and clinical laboratories, this freezer combines robust construction with precision controls to ensure safe, dependable sample storage. From research breakthroughs to patient care, LEC delivers trusted -30°C storage you can depend on every day.



Key Features



  • Temperature Range: -10 to -30°C
  • Manual Defrost
  • Adjustable Wire Shelves

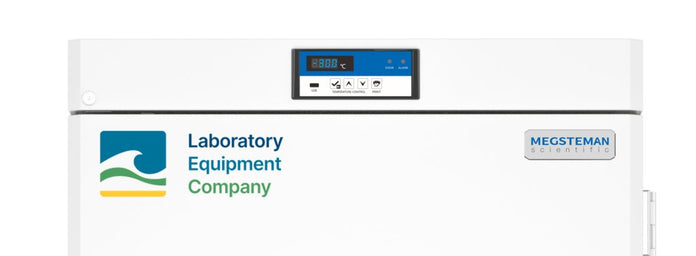

  • Precise Microprocessor Control with LED Display in 0.1°C increments
  • Sample Safegard: 10 audible and visual alarms ensure protection
  • Built-in Data logging: up to 12 months with USB export
  • 1” Access Port



Sustainability



  • High performance biomedical grade purpose-built refrigeration system
  • SNAP compliant R-290 HC refrigerant
  • Low Energy consumption meets EnergyStar® standard
  • Direct Cooling Cold Wall Design
  • 48 hour Back-up Battery



Ergonomics

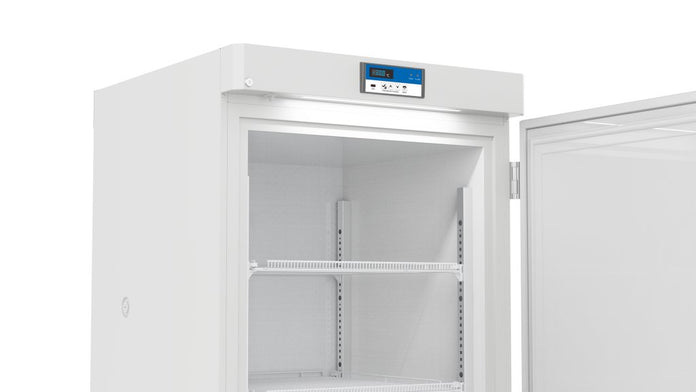

  • Overhanging LED Light: Check samples in dim lighting
  • Vacuum Relief Port: Use soft damp cloth, avoid corrosive chemicals
  • Ergonomic Handle: EZ-Open patented one-handed design
  • 180° Door Opening
  • Heavy Duty Casters with leveling feet

Specifications

Overview

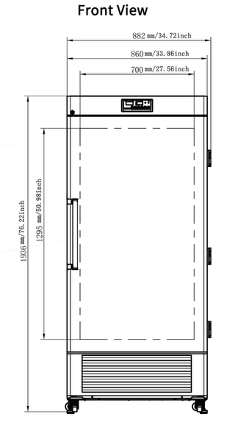

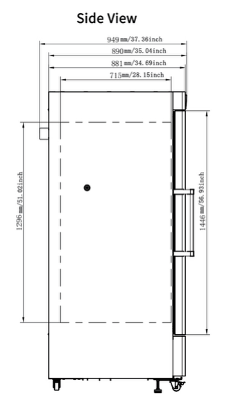

  • Nominal Height:
    76.2" (193.55 cm)
  • Nominal Width:
    34.7" (88.14 cm)
  • Nominal Length:
    37" (93.98 cm)
  • Internal Height:
    51" (129.54 cm)
  • Internal Width:
    27.5" (69.85 cm)
  • Internal Length:
    28.1" (71.37 cm)
  • Capacity:
    24

Freezer - Refrigerator

  • Electrical Freezer:
    NEMA 5-15 | 115V/15A, 60 Hz
  • Net Weight:
    331lb
  • Compliance:
    UL Listed
  • Warranty:
    3 Years parts and labor, 5 years compressor parts only
  • Compressor:
    1 pc, Single, hermetic, reciprocal compressor, 310W
  • Cooling / Evaporator Type:
    Cold Wall
  • Defrost:
    Manual
  • Refrigerants:
    SNAP compliant, Natural, R-290
  • Insulation:
    Rigid polyurethane foamed-in-place, 3.15" Thickness

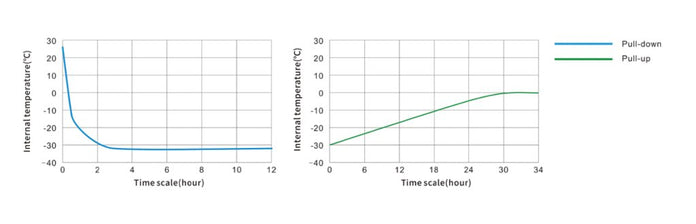

Performance

  • Temperature Range:
    -15°C to -30°C | 5°F to -22°F
  • Temperature Sensor:
    Thermistor (NTC)
  • Ambient Temperature:
    16°C to 32°C | 60.8°F to 89.6°F
  • Controller:
    Microprocessor with LED Digital Display
  • Noise:
    50dB(A)

Construction & Alarm

  • Door Lock:
    Yes, 2 keys provided
  • Exterior Material:
    Bright white powder coated steel
  • Interior Material:
    Bright White painted aluminum liner

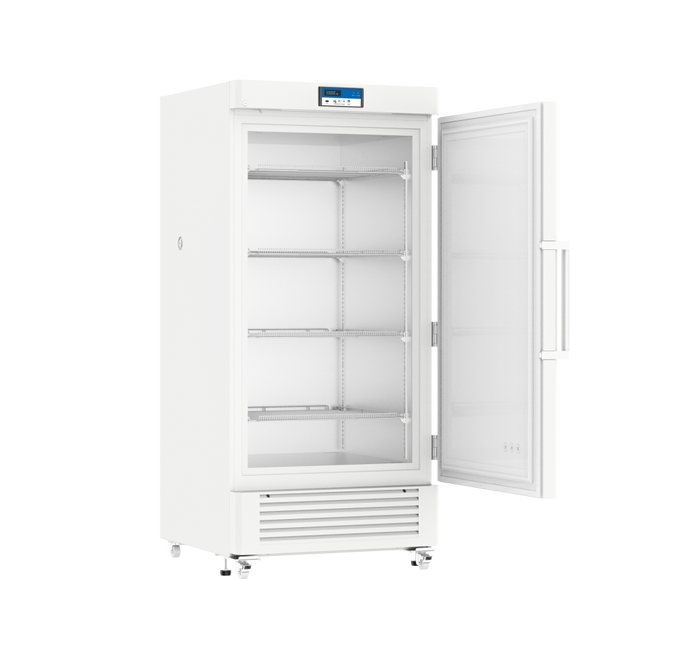

  • Shelves:
    4 Adjustable coated steel wire, Max Load 66.1 lbs
  • Useable Shelf Dimensions:
    25.9" W x 25.6" D
  • Access Port:
    1.0ӯ left side
  • Casters & Leveling Feet:
    4 swivel casters plus 2 leveling feet
  • On Board Data Logging:
    Yes, 10 minute interval, 2 years max capacity, USB download
  • Backup Battery for Controller:
    Yes, 48 Hours
  • Remote Alarm Contacts and Outputs:
    Normal open, normal closed, common | DC 30V, 2A | RS485
  • Temperature:
    High/Low temperature, High ambient temperature
  • Electrical:
    Power failure, Low battery
  • System Operations:
    Door Ajar, Refrigeration function, Main board function
