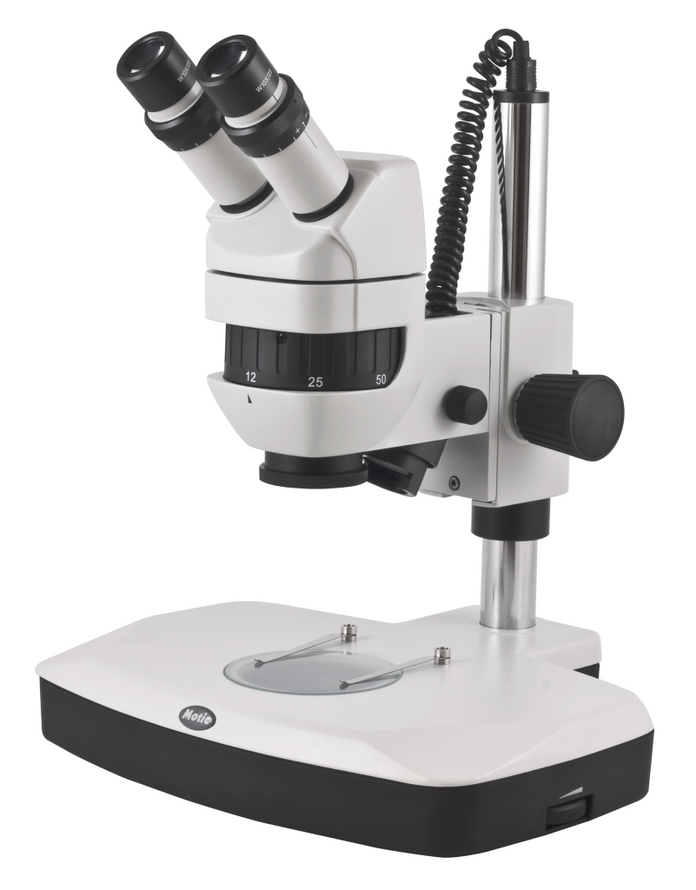

Motic Instruments - 1100200900101 - K-400L Stereo Microscopes

Motic Instruments - 1100200900101 - K-400L Stereo Microscopes

Motic Instruments - 1100200900101 - K-400L Stereo Microscopes

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
A stereo microscope for a wide range of biological and material science applications in both routine and research fields

Features

A stereo microscope for a wide range of biological and material science applications in both routine and research fields. The CMO optical system (Common Main Objective) delivers impressive images with a 4-position turret of 6X, 12X, 25X and 50X total magnification in the standard Achromatic outfit. The instrument comes with a 10W transmitted / 10W incident Halogen illumination. An upgrade to documentation is possible by an intermediate photo tube.


In today's ever-changing environment, combining infinity optics into a Common Main Objective [CMO] stereomicroscope system is not enough to satisfy the requirements of the day. With 3 different bodies and numerous stands and objective options, the K-Series line of stereomicroscopes delivers the versatility you need to overcome any dynamic requirement.

Specifications

Overview

  • Nominal Height:
    17.1" (43.43 cm)
  • Nominal Width:
    10.9" (27.69 cm)
  • Nominal Length:
    13" (33.02 cm)

Technical Data

  • Optical System:
    Common main objective (CMO) Infinity Optical System
  • Observation Tube:
    Binocular head
  • Interpupillary Distance:
    54-76 mm
  • Diopter Adjustment:
    On both tubes, ±5 diopter
  • Inclination:
    45° inclined
  • Eyepieces:
    WF10X/23mm
  • Objectives System:
    4-position step magnification changer
  • Standard Objective:
    1X Achromatic
  • Objectives magnification:
    6X, 12X, 25X and 50X
  • Working Distance:
    89 mm
  • Stand:
    Pole type stand with Transmitted Illumination
  • Base:
    329 x 277 mm
  • Column/Arm:
    Ø32mm, 295mm high
  • Optical Body with Head Holder:
    For Ø32mm column with Incident Illumination
  • Focus Mechanism:
    Coarse focusing system with tension adjustment
  • Focusing Stroke:
    49 mm
  • Incident Illumination:
    Halogen 12V/10W with intensity control
  • Transmitted Illumination:
    Halogen 12V/10W with intensity control
  • Transformer:
    Internal
  • Power Supply:
    100-240V (CE)
  • Accessories Included:
    Black, white and frosted stage plates and dust cover
  • Weight:
    5.9kg
