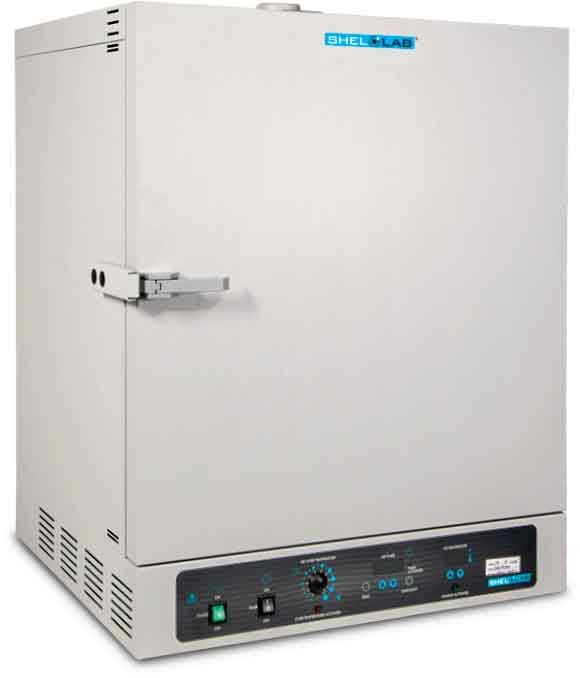

Sheldon - SMO5 - Forced Air Ovens, Forced Air, 5 Cu.ft, 115V

Sheldon - SMO5 - Forced Air Ovens, Forced Air, 5 Cu.ft, 115V
Sheldon - SMO5 - Forced Air Ovens, Forced Air, 5 Cu.ft, 115V

Sheldon - SMO5 - Forced Air Ovens, Forced Air, 5 Cu.ft, 115V

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
SHEL LAB forced air ovens have a turbo blower-assisted airflow design and heavy-duty motors that offers excellent temperature uniformity and fast temperature recovery.

Features

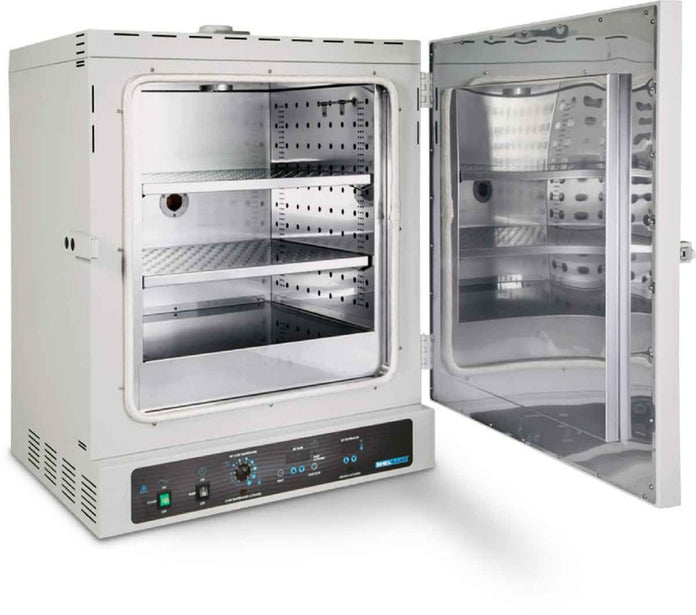

The SMO5 is equipped with a stainless-steel interior for long-life operation and easy cleaning. With triple wall construction, this oven's walls minimize external wall temperature which meets CE requirements to keep work spaces cool.


These ovens are recommended for critical and analytical use in laboratory and pilot plant product research. Typical applications for the oven include aging, asphalt testing, curing, drying, pre-heating, conditioning, and life cycle testing.


This unit has a quick ramp-up time to 306°C for faster cycle times. This unit includes an advanced PID temperature control system for sensitive response. The SMO5 forced air oven delivers precise uniformity, air distribution, and the peace of mind expected of the SHEL LAB brand.


Features of this oven include


  • Embedded Microprocessor Control with Countdown Timer
  • Horizontal Forced Airflow
  • 1.75in (45mm) Access Port
  • UL/CSA Approved
  • CE Approval
  • DIN 12880 Compliant
  • 24 Month Limited Warranty

Specifications

Overview

  • Nominal Height:
    38.8" (98.55 cm)
  • Nominal Width:
    31.4" (79.76 cm)
  • Nominal Length:
    28.1" (71.37 cm)
  • Internal Height:
    20.7" (52.58 cm)
  • Internal Width:
    21" (53.34 cm)
  • Internal Length:
    19.4" (49.28 cm)
  • Capacity:
    4.9

Technical Data

  • Shelf Dimensions (W x D):
    20.6 x 18.8 (523 mm x 478 mm)
  • Unit Weight:
    208.0 lbs (94.3 kg)
  • Interior Metal:
    430 SST
  • Exterior Metal:
    Painted Cold Roll Steel
  • Operating Temperature Range:
    Amb +20°C - 306°C
  • Temperature Uniformity - Midrange:
    1.8°C
  • Temperature Stability - Midrange:
    0.3°C
  • Controller Type:
    Digital
  • Display Resolution:
    0.1°C
  • Power Voltage, Frequency and Current:
    110-120 VAC, 50/60 Hz, 14.0 Amps
  • Safety Certifications:
    UL 61010-1, EN 61010-1, CSA 61010-1, CE
  • Interior Construction:
    400 series stainless steel
  • Exterior Construction:
    Painted Cold Roll Steel
  • Shelves (See Accessories):
    2 standard, 9 total
  • Maximum Weight Per Shelf:
    50 lb/22.6 kg
  • Permitted Total Load:
    200 lb/91 kg

Voltage Specific

  • Electrical, 50/60Hz, AC, 1Ø - Voltage:
    110V-120V
  • Electrical, 50/60Hz, AC, 1Ø - Full Load Amps:
    14
  • Electrical, 50/60Hz, AC, 1Ø - Nominal Power (watts @150°C):
    700
  • Electrical, 50/60Hz, AC, 1Ø - Plug Supplied:
    NEMA 5-15P
  • Energy Consumption (kWh/day) At 80°C:
    7.5
  • Energy Consumption (kWh/day) At 150°C:
    13.5
  • Energy Consumption (kWh/day) At 306°C:
    23.8
  • Temperature Range 20°C above ambient to 306°C - Heat-Up to Ambient - Minutes to 80°C:
    9
  • Temperature Range 20°C above ambient to 306°C - Heat-Up to Ambient - Minutes to 150°C:
    28
  • Temperature Range 20°C above ambient to 306°C - Heat-Up to°C Ambient - Minutes to 306°C:
    130
  • Temperature Range 20°C above ambient to 306°C - Recovery after Door Opening (30 sec.) - Minutes to 80°C:
    2
  • Temperature Range 20°C above ambient to 306°C - Recovery after Door Opening (30 sec.) - Minutes to 150°C:
    4
  • Temperature Range 20°C above ambient to 306°C - Recovery after Door Opening (30 sec.) - Minutes to 306°C:
    45
  • Temperature Range 20°C above ambient to 306°C - Recovery after Door Opening (60 sec.) - Minutes to 80°C:
    3.5
  • Temperature Range 20°C above ambient to 306°C - Recovery after Door Opening (60 sec.) - Minutes to 150°C:
    6
  • Temperature Range 20°C above ambient to 306°C - Recovery after Door Opening (60 sec.) - Minutes to 306°C:
    57
  • Temperature Uniformity At 80°C:
    0.75°C
  • Temperature Uniformity At 150°C:
    1.80°C
  • Temperature Uniformity At 306°C:
    4.50°C
  • Ventilation - Air Changes Per Hr at Max:
    180
  • Ventilation - Max CFM:
    15.2
  • Ventilation - Velocity:
    145

Site Preparation - Installation Guides - SMO Oven Options - Accessories

  • Door Swing Clearance (Nominal):
    32.0" (813 mm)
  • Wall Clearance, Sides:
    6.0" (152 mm)
  • Wall Clearance, Rear:
    12.0" (305 mm)
  • Wall Clearance, Top:
    24.0" (610 mm)
  • Shipping Weight:
    258.0 lb (117.0 kg)
  • Sliding Shelf Option Includes 1 Shelves, 2 Slides:
    9751366
  • Caster Platform:
    9000594
  • Extra Shelf, Standard, Max. Weight:
    50 lb (22kg)
  • Includes Brackets:
    9751229
