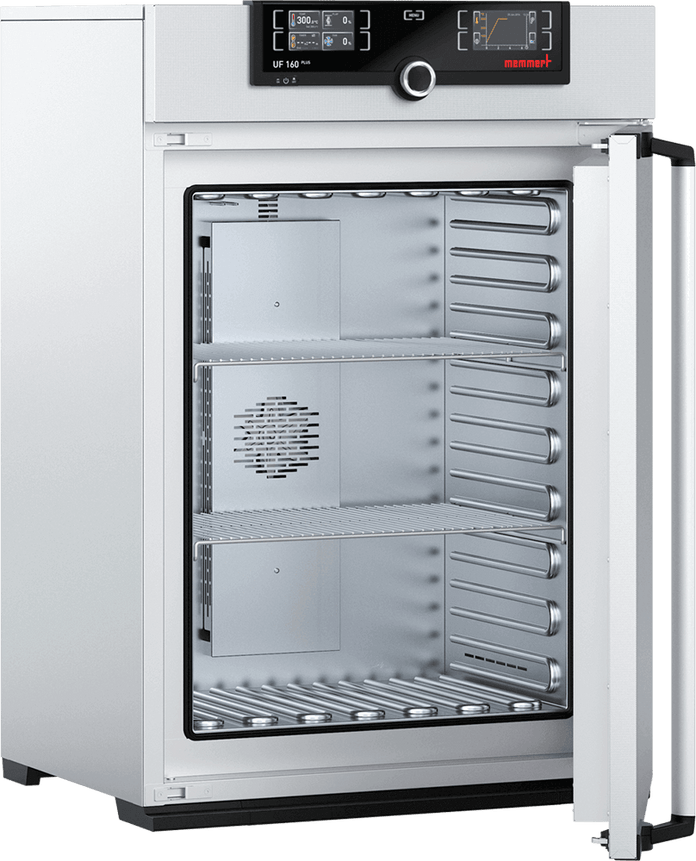

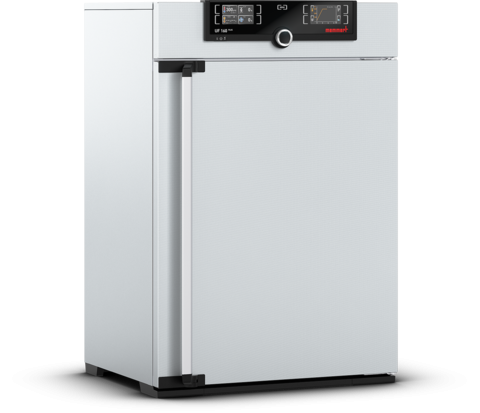

Memmert - UF 160 Plus, 230V - Forced Circulation Oven

Memmert - UF 160 Plus, 230V - Forced Circulation Oven

Memmert - UF 160 Plus, 230V - Forced Circulation Oven

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Memmert Forced Circulation Oven UF 160 Plus, 230 Volt, 50/60 Hz. Temperature range to 300°C.

Features

The universally applicable lab oven U is Memmert's classic appliance for temperature control in science, research and material tests in the industry. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology.

  • Stainless Steel: Scratch resistant, hygienic and durable.
  • 3 Year Warranty: A limited 3 year warranty is included with the option to purchase an extra year.
  • AtmoCONTROL: Create and monitor programs.
  • TwinDISPLAY: Twice the features of SingleDISPLAY. Monitor programs easily via Ethernet or USB.

Specifications

Overview

  • Nominal Height:
    43.5" (110.49 cm)
  • Nominal Width:
    29.3" (74.42 cm)
  • Nominal Length:
    23" (58.42 cm)
  • Internal Height:
    28.3" (71.88 cm)
  • Internal Width:
    22" (55.88 cm)
  • Internal Length:
    15.7" (39.88 cm)

Temperature - Humidity

  • Setting Resolution Temperature:
    Up to 99.9°C - 0.1 / from 100°C - 0.5
  • Setting Temperature Range:
    +20 to +300°C
  • Temperature Sensor:
    2 Pt100 sensors Class A in 4-wire-circuit

Interior - Exterior - Control Technology

  • Stainless Steel Interior - Interior:
    Easy-to-clean interior,made of stainless steel
  • Stainless Steel Interior - Volume:
    161 L / 5.7 cu ft
  • Stainless Steel Interior - Max. Number of Shelves:
    8
  • Stainless Steel Interior - Max. Loading of Chamber:
    462 lbs
  • Stainless Steel Interior - Max. Loading per Shelf:
    44 lbs
  • Textured Stainless Steel Casing - Housing:
    Rear zinc-plated steel
  • Control Technology - ControlCOCKPIT:
    Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-color displays
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - Language Setting:
    German, English, Spanish, French, Polish, Czech, Hungarian
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - Function HeatBALANCE:
    Adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %
  • Control Technology - Function SetpointWAIT:
    The process time does not start until the set temperature is reached
  • Control Technology - Calibration:
    Three freely selectable temperature values
  • Control Technology - Adjustable Parameters:
    Temperature (Celsius or Fahrenheit), fan speed, air flap position, timer

Safety - Standard Equipment - Electrical Data

  • Safety - Autodiagnostic System:
    For fault analysis
  • Safety - Alarm:
    Visual and acoustic
  • Standard Equipment - Door:
    Fully insulated stainless steel doors with 2-point locking (compression door lock)
  • Standard Equipment - Shelving:
    2 stainless steel grids, electropolished
  • Standard Equipment - Works Calibration Certificate:
    Calibration at +160°C
  • Electrical Data - Electrical Load:
    230 V (±10%), 50/60 Hz, Approx. 3200 W / 13.9 A
