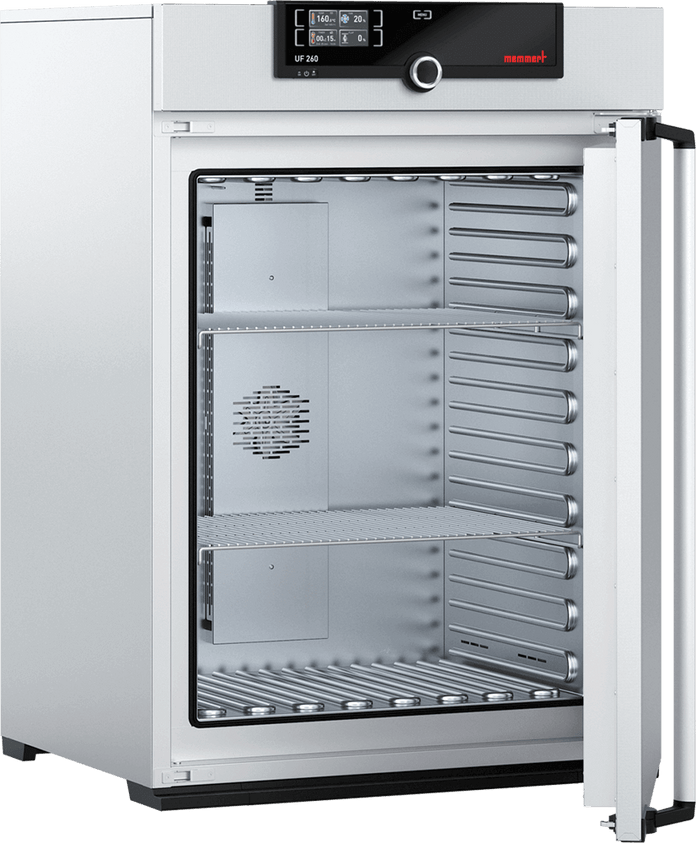

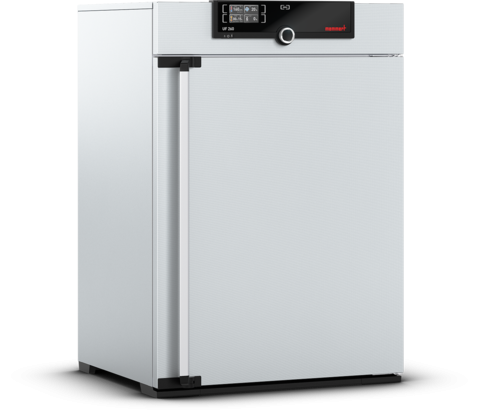

Memmert Forced Circulation Oven UF 260, 115 volt, 50/60 Hz, Temperature range to 300°C.

Features

The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology.



  • Stainless Steel: Scratch resistant, hygienic and durable.
  • SingleDISPLAY: Control temperature, fan speed, program time & more.
  • 3 Year Warranty: A limited 3 year warranty is included with the option to purchase an extra year.

Specifications

Overview

  • Nominal Height:
    46.6" (118.36 cm)
  • Nominal Width:
    32.4" (82.3 cm)
  • Nominal Length:
    26.9" (68.33 cm)
  • Internal Height:
    31.5" (80.01 cm)
  • Internal Width:
    25.2" (64.01 cm)
  • Internal Length:
    19.7" (50.04 cm)

Temperature - Humidity

  • Setting Resolution Temperature:
    Up to 99.9°C - 0.1 / from 100°C - 0.5
  • Setting Temperature Range:
    +20 to +300°C
  • Temperature Sensor:
    1 Pt100 sensor DIN class A in 4-wire-circuit

Interior - Exterior - Control Technology

  • Stainless Steel Interior - Interior:
    Easy-to-clean interior,made of stainless steel
  • Stainless Steel Interior - Volume:
    256 L / 9 cu ft
  • Stainless Steel Interior - Max. Number of Shelves:
    9
  • Stainless Steel Interior - Max. Loading of Chamber:
    661 lbs
  • Stainless Steel Interior - Max. Loading per Shelf:
    44 lbs
  • Control Technology - Language Setting:
    German, English, Spanish, French, Polish, Czech, Hungarian
  • Control Technology - ControlCOCKPIT:
    SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-color display
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - Function SetpointWAIT:
    The process time does not start until the set temperature is reached
  • Control Technology - Calibration:
    Three freely selectable temperature values
  • Control Technology - Ajustable Parameters:
    Temperature (Celsius or Fahrenheit), fan speed, air flap position, timer

Safety - Standard Equipment - Electrical Data

  • Safety - Autodiagnostic System:
    For fault analysis
  • Standard Equipment - Door:
    Fully insulated stainless steel doors with 2-point locking (compression door lock)
  • Standard Equipment - Shelving:
    2 stainless steel grids, electropolished
  • Standard Equipment - Works:
    Calibration certificate Calibration at +160°C
  • Electrical Data - Electrical Load:
    115 V (±10%), 50/60 Hz, Approx. 1800 W / 15.7 A
