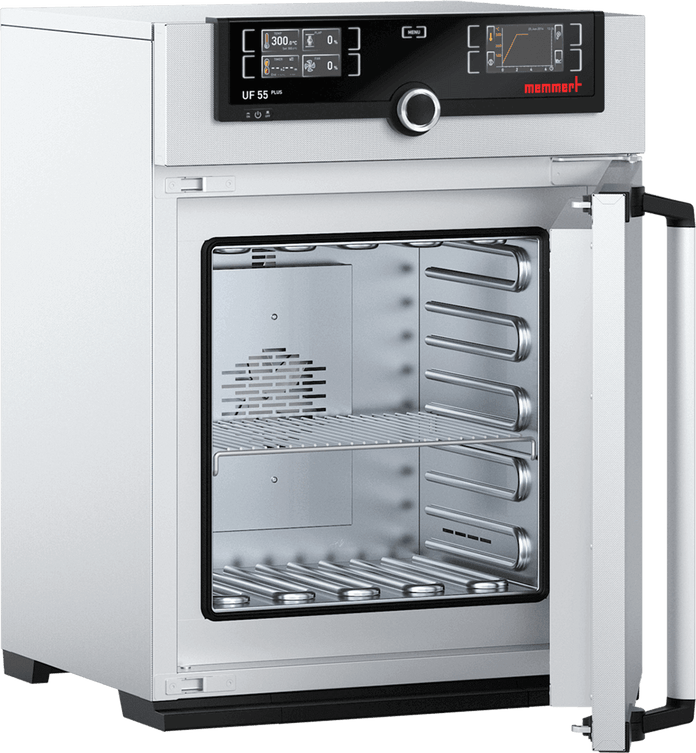

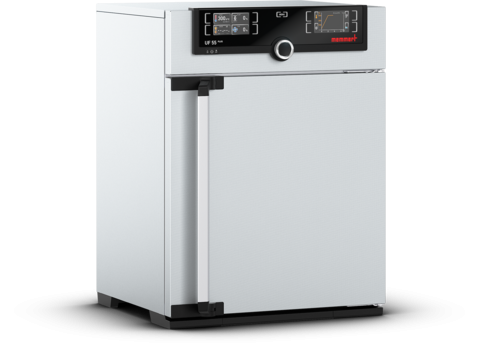

Memmert - UF 55 Plus, 230V - Forced Circulation Oven

Memmert - UF 55 Plus, 230V - Forced Circulation Oven

Memmert - UF 55 Plus, 230V - Forced Circulation Oven

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Memmert Forced Circulation Oven UF 55 Plus, 230 volt, 50/60 Hz. Maximum temperature range to 300°C.

Features

The universally applicable lab oven U is Memmert's classic appliance for temperature control in science, research and material tests in the industry. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology.

  • Stainless Steel: Scratch resistant, hygienic and durable.
  • 3 Year Warranty: A limited 3 year warranty is included with the option to purchase an extra year.
  • AtmoCONTROL: Create and monitor programs.
  • TwinDISPLAY: Twice the features of SingleDISPLAY. Monitor programs easily via Ethernet or USB.

Specifications

Overview

  • Nominal Height:
    31" (78.74 cm)
  • Nominal Width:
    23" (58.42 cm)
  • Nominal Length:
    20.2" (51.31 cm)
  • Internal Height:
    15.8" (40.13 cm)
  • Internal Width:
    15.8" (40.13 cm)
  • Internal Length:
    13" (33.02 cm)

Temperature - Humidity

  • Set Temperature Range in °C:
    Min.10°C above ambient up to +300°C
  • Temperature:
    2 Pt100 sensors Class A in 4-wire-circuit

Interior - Exterior - Control Technology

  • Stainless Steel Interior - Max. Loading of Chamber:
    176 lb
  • Stainless Steel Interior - Volume:
    1.9 ft³ / 53 L
  • Stainless Steel Interior - Number of Stainless Steel Grids (Standard Equipment):
    1
  • Stainless Steel Interior - Maximum Number of Grids:
    4
  • Stainless Steel Interior - Maximum Loading per Grid:
    66 lb / 30 kg
  • Stainless Steel Interior - Maximum Loading of Chamber:
    176 lb / 80 kg
  • Control Technology - ControlCOCKPIT:
    Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-color displays
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - Adjustable Parameters:
    Temperature (Celsius or Fahrenheit), fan speed, air flap position, program time, time zones, daylight savings time
  • Control Technology - Function HeatBALANCE:
    Adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %
  • Control Technology - Function SetpointWAIT:
    The process time does not start until the set temperature is reached
  • Control Technology - Language Setting:
    German/English/Spanish/French
  • Control Technology - Calibration:
    Three freely selectable temperature values

Safety - Standard Equipment - Electrical Data

  • Safety - Alarm:
    Audible and visual
  • Safety - Autodiagnostic System:
    For fault analysis
  • Standard Equipment - Door:
    Fully insulated stainless steel doors with 2-point locking (compression door lock)
  • Standard Equipment - Internals:
    1 stainless steel grid
  • Standard Equipment - Scope of Delivery:
    Incl. works calibration certificate for +160°C
  • Standard Equipment - Housing:
    Rear zinc-plated steel
  • Electrical Data - Electrical Load:
    230 V (±10%), 50/60 Hz 8.7 amps
