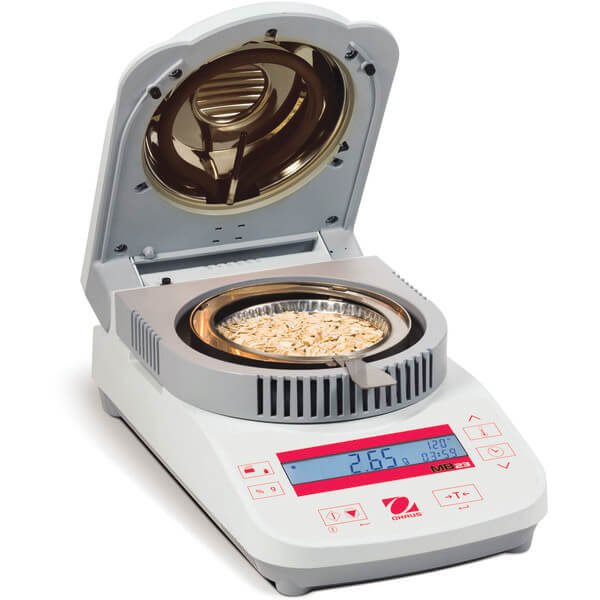

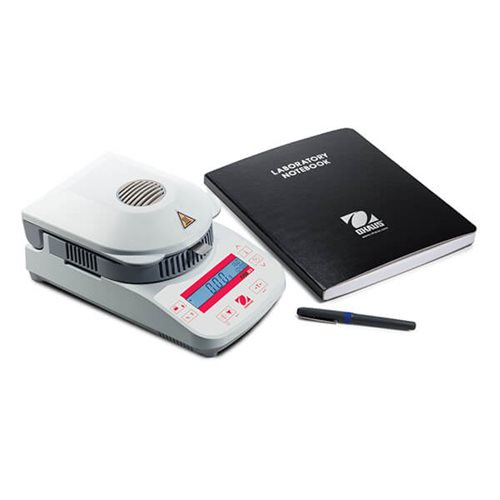

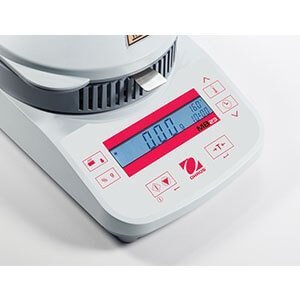

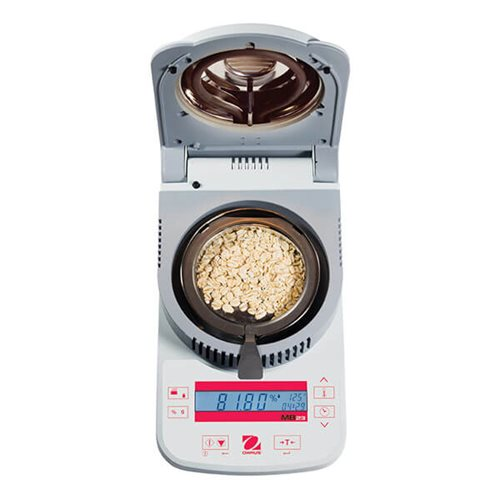

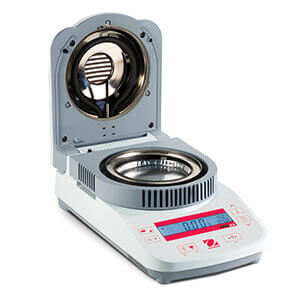

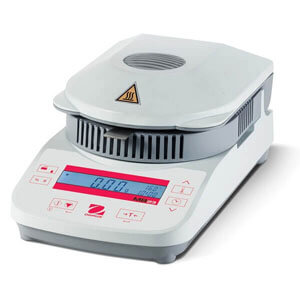

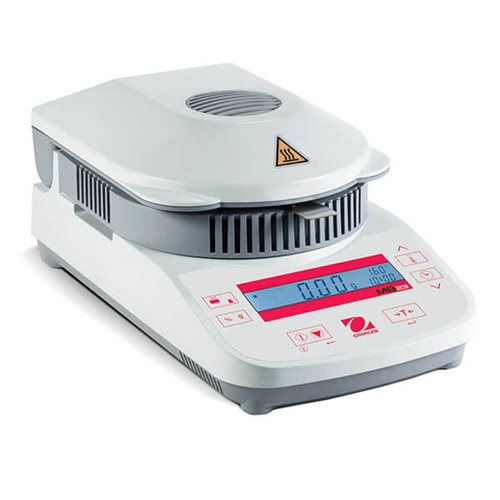

Ohaus - 83999801 - Moisture Analyzer, MB23 AM
Features
The MB23 provides precise moisture content determination at an unbeatable value. With a large backlit LCD display, standard RS232 port, 110g capacity with a readability of 0.01g/0.1% and an non-glass infrared heating element, the MB23 offers moisture analysis for any budget.
Glass-less infrared heating increases efficiency for faster results. User-friendly touch-button design for easy operation. Compact design suits any workspace.
Applications
Percent Moisture Determination, Percent Solid Determination, Weighing
Display
Backlit liquid crystal display (LCD)
Operation
Power cord (included)
Communication
RS232 (included)
Construction
Infrared heat source, ABS housing, metal pan support, metal pan handler, in-use cover
Design Features
3 shut off criteria (manual, timed or auto), 1 standard heating profile, 50° to 160° C heating range (5° C increments)
Specifications
Overview
-
Nominal Height:5" (12.7 cm)
-
Nominal Width:11" (27.94 cm)
-
Nominal Length:6.5" (16.51 cm)
Technical Data
-
Maximum Capacity:110 g
-
Readability Moisture Content:10 mg/0.1%
-
Pan Size:3.5 in (90 mm)
-
Heater Type:Infrared coil
-
Communication:RS232 (included)
-
Display:Backlit LCD
-
In-Use Cover:Included
-
Net Weight:5 lb (2.3 kg)
-
Power:AC power (included)
-
Repeatability, Typical:0.002 g
-
Shut-Off Criteria:Timed, Manual, Automatic - preset weight loss/time
-
Temperature Range:50°C - 160°C
-
Units of Measurement:Gram
-
Working Environment:50°F - 104°F, 80%RH, non-condensing (10°C - 40°C, 80%RH, non-condensing)
Downloads
-
MB Series Brochure USDownload
Useful Links
-
Data Sheet MB23Visit Link
-
Manual MB Temp Cal KitVisit Link
-
Manual MB23/25Visit Link
-
Quick Start Guide MB23 MB25Visit Link
