Ohaus - 30971928 - Moisture Analyzer MB32 110V
Features
The new OHAUS MB32 features a redesigned housing with stronger material, innovative carbon fiber heating technology and an upgraded load cell for enhanced durability and performance. The easy-to-use MB32 is the perfect choice for routine moisture testing.
An LCD with second line display, navigation knob, and intuitive operation system makes for convenient routine moisture testing. The new carbon fiber IR heating technology and upgraded loadcell shortens analysis time, saves power and keeps results accurate and consistent. Robust, slim design with a strong housing ensures MB32’s durability even in harsh environments.
Applications
Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing
Display
4" LCD with 2nd line display
Operation
Internal power supply with power cord (included)
Communication
RS232, USB device
Construction

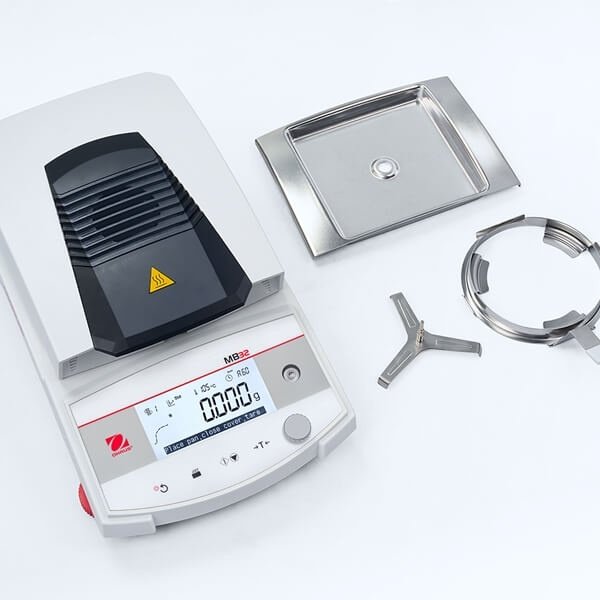

Carbon fiber heat source, PBT housing, Die casting aluminum base, metal pan support, metal pan handler, in use cover
Design Features
Five shut-off criteria (manual, timed, Auto, A30, A90), two drying profiles (standard and fast), storage up to two methods, 40-180℃ heating range, multiple operational languages
Specifications
Overview
-
Nominal Height:5.4" (13.72 cm)
-
Nominal Width:8.3" (21.08 cm)
-
Nominal Length:13.9" (35.31 cm)
Technical Data
-
Maximum Capacity:90 g
-
Readability Moisture Content:1 mg/0.01%
-
Pan Size:3.5 in (90 mm)
-
Heater Type:Carbon fiber
-
Communication:USB device, RS232
-
Recommended Moisture Content MC%:0.5% - 100%
-
Adjustment:Temperature adjustment - mechanical (100°C, 160°C), Weight adjustment - external (50 g)
-
Display:4" LCD with 2nd line display
-
Display Results:RG%, Temperature, DC%, Time, Method No., MC%, Weight
-
Heating Profiles:Standard, Fast
-
In-Use Cover:Included
-
Moisture Range:0.01% - 100%
-
Net Weight:9.5 lb (4.3 kg)
-
Operating Range (Temp.):10°C - 40°C
-
Operation Instructions:On-screen instruction, Progress indicator
-
Repeatability:0.02% (10 g sample), 0.15% (3 g sample)
-
Shut-Off Criteria:3 auto, Timed, Manual
-
Temperature Range:40°C - 180°C
-
Test Library:2
