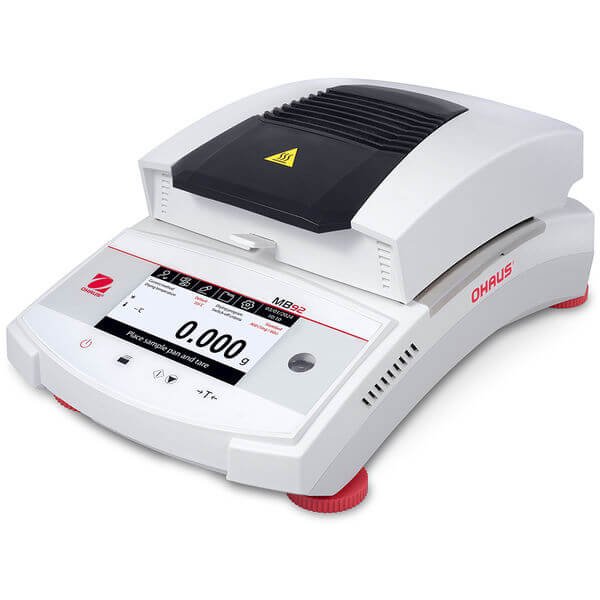

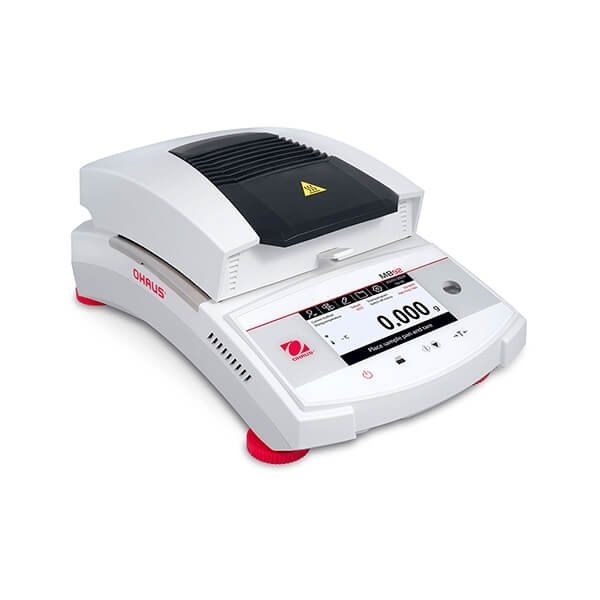

Ohaus - 30971930 - Moisture Analyzer MB92 110V

Ohaus - 30971930 - Moisture Analyzer MB92 110V

Ohaus - 30971930 - Moisture Analyzer MB92 110V

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Moisture analyzer MB92 110V.

Features

The new MB92 features a redesigned housing, innovative carbon fiber heating and upgraded load cell for enhanced durability and performance. Ideal for users demanding a higher level of performance on both the laboratory and production floor, offering greater data security and integrity with password protection.


Applications


Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing


Display


4.3" capacitive touch screen


Operation


Internal power supply with power cord (included)


Communication


RS232, USB device, USB host


Construction


Carbon fiber heat source, PBT housing, die casting aluminum base, metal pan support, metal pan handler, in use cover


Design Features


Eight shut-off criteria (manual, timed, A10, A30, A60, A90, A160, free mg/s), four drying profiles (standard, fast, ramp, step), storage up to 20 methods and 200 results for all methods, 40-200℃ heating range, multiple operational languages

Specifications

Overview

  • Nominal Height:
    5.4" (13.72 cm)
  • Nominal Width:
    8.3" (21.08 cm)
  • Nominal Length:
    13.9" (35.31 cm)

Technical Data

  • Maximum Capacity:
    90 g
  • Readability Moisture Content:
    1 mg/0.01%
  • Pan Size:
    3.5 in (90 mm)
  • Heater Type:
    Carbon fiber
  • Communication:
    USB device, RS232, USB host
  • Recommended Moisture Content MC%:
    0.5% - 100%
  • Adjustment:
    Temperature adjustment - mechanical (100°C, 160°C), weight adjustment - external (50 g)
  • Display:
    4.3” capacitive touch screen
  • Display Results:
    RG%, Temperature, Drying curve, DC%, Time, Method name, Statistics, MC%, Weight
  • Heating Profiles:
    Ramp, Standard, Step, Fast
  • ID Management:
    Sample name, Sample ID, Batch ID
  • In-Use Cover:
    Included
  • Moisture Range:
    0.01% - 100%
  • Net Weight:
    9.5 lb (4.3 kg)
  • Operating Range (Temp.):
    10°C - 40°C
  • Operation Instructions:
    Live drying curve, On-screen instruction
  • Repeatability:
    0.08% (3 g sample), 0.015% (10 g sample)
  • Shut-Off Criteria:
    Timed, 5 auto, Manual, Custom - user set weight loss/time
  • Status Light:
    Multi-color status light
  • Stored Results:
    200
  • Temperature Range:
    40°C - 200°C
  • Test Library:
    20
